Factory Supply Hydrostatic Test Machine For Gas Cylinder
- Warranty:
-
1 Year
- Customized support:
-
OEM, Software reengineering
- Place of Origin:
-
Chongqing, China
- Brand Name:
-
Wingoil
- Model Number:
-
WY-105W-J1
- Power:
-
pneumatic
- Pressure ratio:
-
1:265
- Medium:
-
Water, Hydraulic Oil, Chemical Media
- Max output pressure:
-
2650bar/38425psi
- Max flow:
-
3.8L/min @7bar
- Max air supply pressure:
-
10bar/145psi
- Air consumption:
-
1000L/Min@7bar
- Tank capacity:
-
20L
- Dimensions:
-
800L x450W x500H (mm)
- Weight:
-
70kg
- Certification:
-
ISO 9001
- Supply Ability
- 1000 Set/Sets per Month
- Packaging Details
Plywood package
Worth sea freight/air freight
- Port
Chongqing/Shanghai/Guangzhou/Qingdao
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 7 To be negotiated
-
Product Overview
PVC Pipe Pressure Test Equipment Hydro Testing EquipmentPump
|

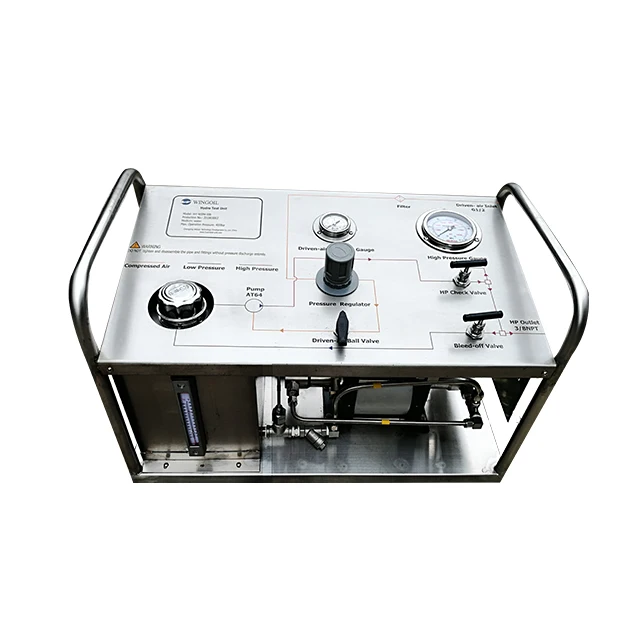

Wingoil Portable Pressure Test Systems utilize the advantages of air driven liquid pumps and are assembled into robust, lightweight portable packages ideal for providing liquid transfer and pressurization for a wide range of pressure testing applications, such as for vessels, pipes, valves, etc. These selfcontained units are powered by compressed air and designed for use with a wide range of fluids of water, or soluble oil as the hydrostatic test media. The pumps, valves and tubes are all made of stainless steel and can withstand the harsh working conditions of high temperature and high pressure. The portable, lightweight test rigs are designed for onsite pressure testing – both onshore and offshore. |
- Features
|
l Low-pressure compressed air as the booster power source, safe and environmentally friendly l Infinitely variable output pressure and flow l Holds static pressure without generating heat or consuming power l No heat, flame or risk of spark l Standard models are suitable for oil & water applications l Well proven and trouble-free operation l Designed for ease of maintenance l Low cost servicing l Compact, robust, selfcontained structure |
- Applicable Medium
|
Water/Liquified CO2/ Liquified Nitrogen Pressurization/Hydraulic oil/Methanol / ethanol / ethylene glycol/ Chemicals |
- Field of Use
|
- Performance Date
| Model |
Max. Output Pressure @100 psi(7bar) air drive |
Max. Outlet Flow | ||
| Bar | Psi | Liter/min |
Cu Ins/min |
|
| WY-80W-J0A | 80 | 1160 | 15 | 915 |
| WY-80W-J0B | 25 |
1525 |
||
| WY-80W-J0C | 45 | 2476 | ||
| WY-130W-J0A | 130 | 1885 | 9 | 549 |
| WY-130W-J0B | 20 | 1220 | ||
| WY-130W-J0C | 30 | 1830 | ||
| WY-200W-J0A | 200 | 2900 | 4 | 244 |
| WY-200W-J0B | 12 | 732 | ||
| WY-200W-J0C | 23 | 1403 | ||
| WY-350W-J0A | 350 | 5075 | 4 | 244 |
| WY-350W-J0B | 10 | 610 | ||
| WY-350W-J0C | 20 | 1220 | ||
| WY-500W-J0A | 500 | 7250 | 2 | 122 |
| WY-500W-J0B | 5 | 305 | ||
| WY-500W-J0C | 10 | 610 | ||
| WY-800W-J0A | 800 | 11600 | 1.5 | 91 |
| WY-800W-J0B | 4 | 244 | ||
| WY-800W-J0C | 7 | 427 | ||
| WY-1000W-J0A | 1000 | 14500 | 4.5 | 274 |
| WY-1400W-J0A | 1400 | 20300 | 1.8 | 109 |
| WY-1400W-J0B | 3.2 | 195 | ||
- Connection&Consruction
Ø Driven-air inlet: G1/2
Ø Driven-air outlet: 1/2″NPT(F)
Ø High-pressure outlet : G1/4-60°
|
Frame and panel |
Stainless steel
|
|
Tank |
|
|

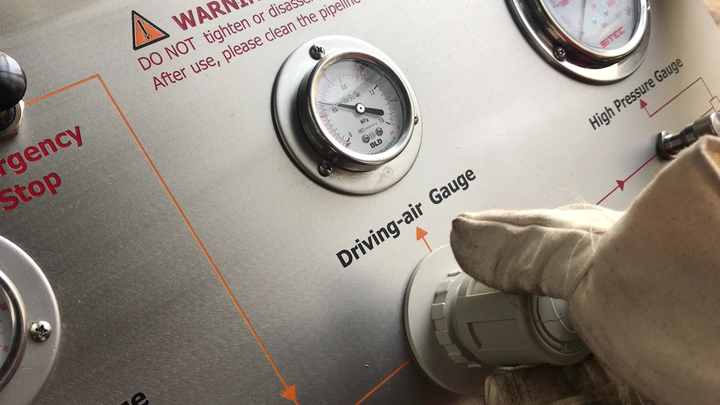

Pressure gauge |
|
|
Valve |
|
|
Tube |
|
|
Connector |
|
|
Piston |
|
|
Pump head |
|
If you can’t find suitable model for your application by above information, we can service you after knowing blow basic technical parameters: 1. What is your present gas pressure?( )bar 2. The pressurized gas is oxygen,nitrogen or any other? 3. How about the Max.outlet gas pressure you want to reach?( )bar 4.What is the driven air pressure (of your air compressor) you can offer?( )bar 5. how about the required flow rate( )L/min |
