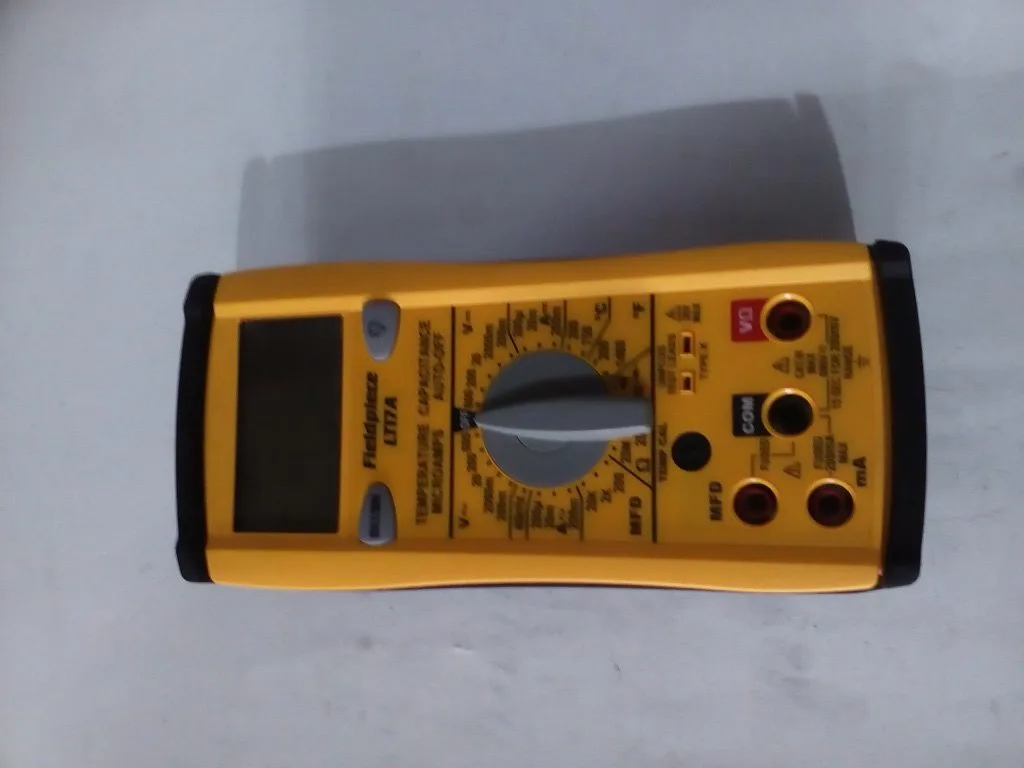

Name: METER

Brand: FIELDPIECE

Part Number: LT174

Description: CLASSIC STYLE W/TEMP MFD,MICROAMPS DIGITAL MULTIMETER

Capacity: 600VAC/DC

Category: INDUSTRIAL INSTRUMENT

Class: TEST & INSPECTION EQUIPMENT

Range: METERS
SPECIFICATION:

> WORKS WITH IT ACCESSORY HEADS

> CONTINUITY INDICATOR

> 400 AAC WITH INCLUDED CLAMP

> RESISTANCE (OHMS)

> DIODE TEST

> RUGGED ABS CASE WITH RUBBER BOOT

> CAPACITANCE UP TO 200MFD

> TEMPERATURE UP TO 1400 DEGREES F

> MICROAMPS DC ? FLAME RECTIFICATION TESTS

> FREQUENCY FOR MOTOR SETUP

> SILICONE LEADS WITH DETACHABLE PROBE

> TILT STAND AND MAGNETIC HANGER

> BRIGHT BLUE BACKLIGHT

> MAX/MIN HOLD

> PRECISELY RECORD THE MINIMUM OR MAXIMUM READING DURING A MEASUREMENT

> VOLTS AC

> VOLTS DC

> AUTO POWER-OFF (APO) TO CONSERVE BATTERY LIFE

> BATTERY CELL TYPE: ALKALINE

> POWER SOURCE: CORDED-ELECTRIC
ACCESSORIES:

> (ADLS2) 1 SET OF DELUXE SILICONE TEST LEADS

> (ACH4) 1PC 400A AMP CLAMP ACCESSORY

> (ATB1) 1PC WRAP TAB BEAD TIP THERMOCOUPLE

> (ANC5) 1PC MAIL POUCH-STYLE INSTRUMENT CASE

> 1PC 9-VOLT BATTERY (INSTALLED)

> 1-OPERATOR?S MANUAL
FEATURES:

MEASURES CURRENT, RESISTANCE, VOLTAGE, CAPACITANCE, FREQUENCY, CONTINUITY, AND TEMPERATURE. TEST LEADS STORE IN THE METER BODY AND, WITH THE PROBE TIPS REMOVED, CONNECT TO ANY FIELDPIECE ACCESSORY HEAD. THE BODY IS MADE OUT OF DURABLE ABS PLASTIC AND COMES WITH A BRIGHT BLUE BACKLIGHT FOR POORLY LIT TEST AREAS. GET GREAT ACCURACY USING THE INCLUDED K-TYPE THERMOCOUPLE AND AN EASILY ACCESSIBLE TEMPERATURE CALIBRATION POT.

THE TESTING CAPABILITIES PACKED INTO THIS CLASSIC STYLE METER IS ITS MAIN COMPETITIVE ADVANTAGE. IN ADDITION TO ALL OF THE RANGES, IT HAS DIRECT TEMPERATURE MEASUREMENT AND WORKS WITH ALL OF OUR ACCESSORY HEADS TO MAKE IT ONE OF THE MOST COMPLETE CLASSIC STYLE METERS AVAILABLE FOR HVACR PROFESSIONALS.
USED BY:

> PROFESSIONAL TRADESMEN

> ENGINEERS

> DO-IT-YOURSELF (DIY)
APPLICATION:

> ENGINEERING

> FIELD WORK
Product Condition: NEW
