product description:

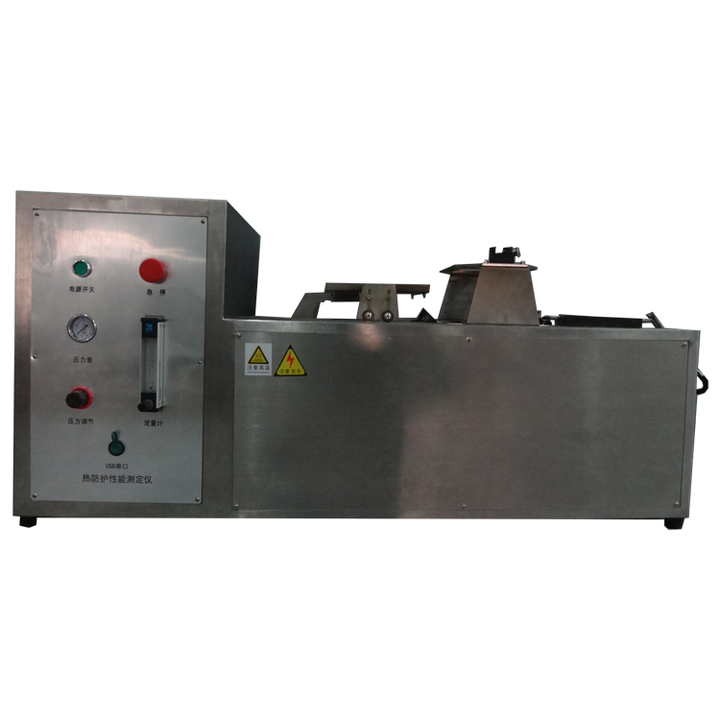

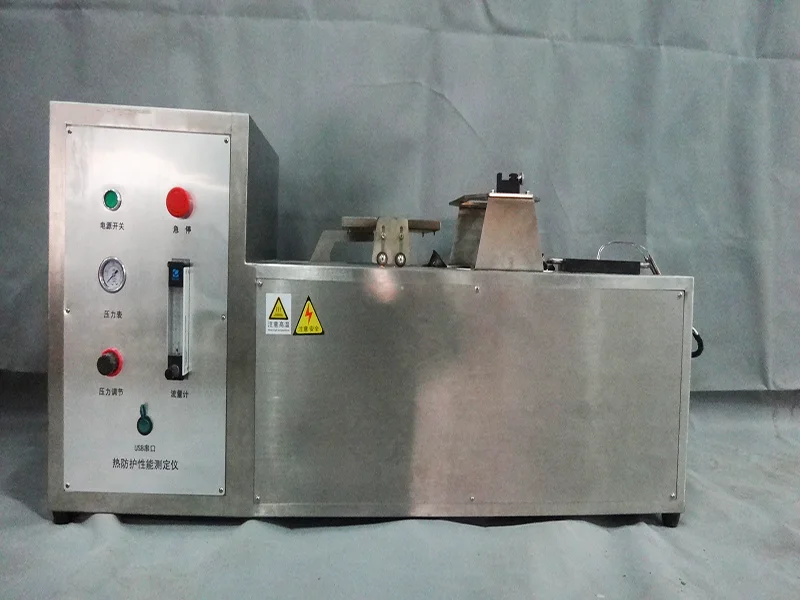

flame resistance (RPP) radiant reflective performance testing equipment ASTM D 4018 is an instrument specially used to test the thermal protection performance of materials that block short-term heat contact with the human body at different temperatures, such as fire-resistant clothing, thermal insulation materials, and insulating materials. The instrument has the characteristics of high precision, easy operation, high reliability, etc., and can meet the thermal protection performance test requirements of various materials.

Basic parameters:
1. Test range: temperature 0-1000℃, time 0-99s
2. Hot plate size: Φ38mm
3. Temperature uniformity of hot plate: ±5℃
4. Measurement time resolution: 0.01s
5. Number of effective test boards: 1-9 pieces

Standards compliant:
ASTM D4108, GB/T 8631, JIS A1412, ISO 6940 and other standards.

Scope of application:
It is used for thermal protection performance testing and evaluation of protective materials such as thermal protective clothing, thermal insulation materials, and insulating materials.

Steps:
1. Install the test board: place the test board on the instrument table, fix it, and connect it to the power supply;
2. Calibrate the temperature: After starting up, calibrate the temperature according to the requirements of the instrument manual;
3. Test samples: Place the protective material samples to be tested on the test board and fix them;
4. Start the test: start the test program, and select the test temperature and time according to the requirements;
5. Test completed: After the test is completed, remove the test sample for inspection.

Daily maintenance:
1. After the instrument is used, the surface of the instrument and the test board should be cleaned in time;
2. Regularly check whether the components of the instrument are in compliance with the standards, and whether there is exposure or wear;
3. Pay attention to the operating procedures during use, and check whether the instrument is in good condition before each use;
4. Avoid unnecessary running for a long time to reduce the wear and tear of the machine.

Materials used:
Test boards, calibrators, etc.

Precautions:
1. During the use of the instrument, it should be operated in strict accordance with the requirements of the operating procedures;
2. During the test, the test parameters required by the instrument should be followed to ensure the accuracy of the test;
3. Reliable leakage protection should be carried out before use to ensure personal safety;
4. The instrument should be placed in a ventilated, dry place with a suitable temperature and a safe place, avoiding direct sunlight or humid environment;
5. Avoid contacting the instrument with strong acid, strong alkali and organic substances to avoid damage to the instrument.

 wooden case for flame resistance (RPP) radiant reflective performance testing equipment ASTM D 4018

1. who are we?
We are based in Chongqing, China, start from 2009,sell to Domestic Market(30.00%),Mid East(20.00%),Africa(15.00%),Southeast Asia(10.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),South America(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Petroleum Testing Equipment,Petroleum Laboratory Equipment,Asphalt Testing Equipment,Bituminous Mixture Testing Equipment,Road Lab Equipment

4. why should you buy from us not from other suppliers?
As a leading manufacturer of Petroleum Testing Equipment and Road Lab Equipment in China, we’ve engaged in the field for 20 years, with rich experience in related projects. Client, Quality and Service are always our supreme target!

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,DAF;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German
