Description

CS-iTEC FLOW DIRECTONAL SWITCH FOR COMPRESSED AIR AND GASES

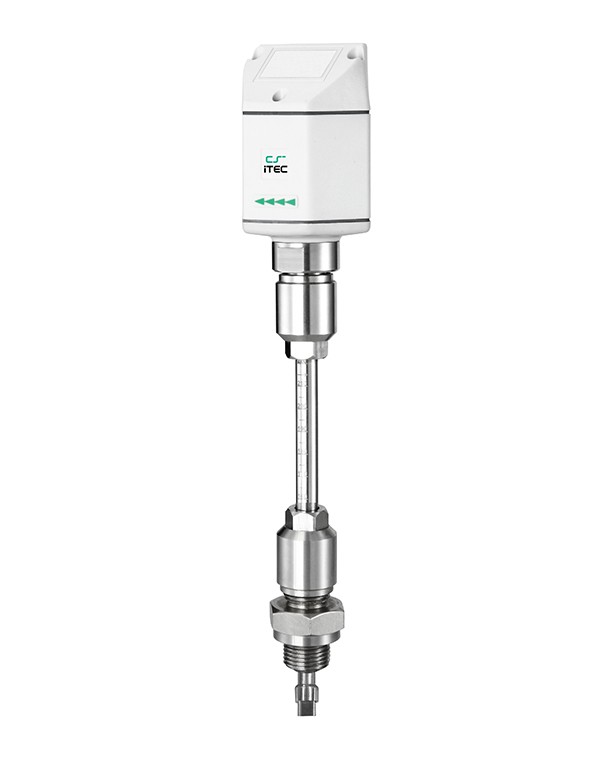

The thermal mass flow direction switch S 409 allows the detection of an existing flow and the direction of the flow. It can be used in compressed air and non-corrosive gases.
The sensor element is very robust and completely of stainless steel. Through a 1/2” G-type ball valve the switch can be inserted into the pipe under pressure.
The flow and direction information is output through 2 normally open relay switches. This signals can be transferred to the CS flow sensor to activate and deactivate the flow measurement depending on the flow direction.
Application

Connection of S 330 to S 450 via flow switch


Connection of S 330 to two S 400 with flow switch

Product Features

Detects smallest changes <0.1 m/s referred to 20 °C and 1000 mbar No mechanical wear parts Easy installation under pressure All parts which are in contact with flow medium are made of stainless steel Technical data Technical data S 409 Detection range 0.1 … 185 Nm/s Sensor 2 x Pt 1000 Medium air, gases Medium humidity <100% (no condensation) Medium temp. -20 … 80 ºC Ambient temp. -20 … 70 ºC Operating pressure 0 … 16 bar Power supply 24 VDC, 60 mA Output 2 x Relay, 60V, 1A Process connection 1/2” G type
