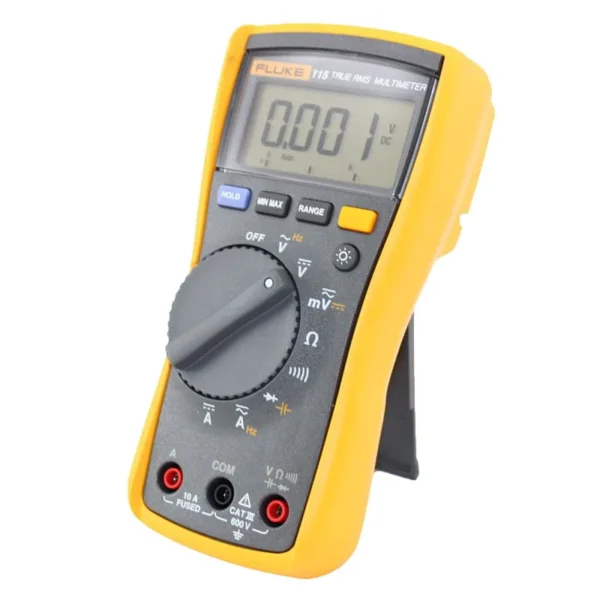

Name: METER

Brand: FLUKE

Part Number: 115

Description: FIELD TECHNICIANS DIGITAL MULTIMETERS

Capacity: 600V

Category: INDUSTRIAL INSTRUMENT

Class: TESTS & INSPECTION EQUIPMENT

Range: METERS
FEATURES:

> DC MILLIVOLTS:

RANGE/RESOLUTION: 600.0 MV / 0.1 MV

ACCURACY: ? ([% OF READING] + [COUNTS]): 0.5% + 2
> DC VOLTS:

RANGE/RESOLUTION: 6.000 V / 0.001 V

60.00 V / 0.01 V

600.00 V / 0.1 V

ACCURACY: ? ([% OF READING] + [COUNTS]): 0.5% + 2
> AC MILLIVOLTS1 TRUE RMS:

RANGE/RESOLUTION: 600.0 MV / 0.1 MV

ACCURACY: 1.0% + 3 (DC, 45 HZ TO 500 HZ)

2.0% + 3 (500 HZ TO 1 KHZ)
> AC VOLTS1 TRUE RMS:

RANGE/RESOLUTION: 6.000 V / 0.001 V

60.00 V / 0.01 V

600.0 V / 0.1 V

ACCURACY: 1.0% + 3 (DC, 45 HZ TO 500 HZ)

2.0% + 3 (500 HZ TO 1 KHZ)
> CONTINUITY:

RANGE/RESOLUTION: 600 ? / 1 ?

ACCURACY: BEEPER ON < 20 ?, OFF > 250 ? DETECTS OPENS OR SHORTS OF

500 ?S OR LONGER.
> OHMS:

RANGE/RESOLUTION: 600.0 ? / 0.1 ?

6.000 K? / 0.001 K?

60.00 K? / 0.01 K?

600.0 K? / 0.1 K?

6.000 M? / 0.001 M?

ACCURACY: 0.9% + 1

RANGE/RESOLUTION: 40.00 M? / 0.01 M?

ACCURACY: 5% + 2
> DIODE TEST:

RANGE/RESOLUTION: 2.00 V / 0.001 V

ACCURACY: 0.9% + 2
> CAPACITANCE:

RANGE/RESOLUTION: 1000 NF / 1 NF

10.00 ?F / 0.01 ?F

100.0 ?F / 0.1 ?F

9999 ?F / 1 ?F

100 ?F TO 1000 ?F

ACCURACY: 1.9% + 2

RANGE/RESOLUTION: > 1000 ?F

ACCURACY: 5% + 20%
> LO-Z CAPACITANCE:

RANGE: 1 NF TO 500 ?F

ACCURACY: 10% + 2 TYPICAL
> AC AMPS TRUE RMS(45 HZ TO 500HZ):

RANGE/RESOLUTION: 6.000 A / 0.001 A

10.00 A / 0.01 A

ACCURACY: 1.5% + 3

20 A OVERLOAD FOR 30-SECONDS MAX
> DC AMPS:

RANGE/RESOLUTION: 6.000 A / 0.001 A

10.00 A / 0.01 A

ACCURACY: 1.0% + 3

20 A OVERLOAD FOR 30-SECONDS MAX
> HZ (V OR A INPUT)2:

RANGE/RESOLUTION: 99.99 HZ / 0.01 HZ

999.9 HZ / 0.01 HZ

9.999 KHZ / 0.001 KHZ

50.00 KHZ / 0.01 KHZ

ACCURACY: 0.1% + 2
USED BY:

> PROFESSIONAL TRADESMEN

> ENGINEERS

> DO-IT-YOURSELF (DIY)
APPLICATION:

> ENGINEERING

> FIELD WORK
Condition: NEW
