Buy Fluke 116 Digital HVAC Multimeter from Safety Nigeria, major supplier of safety equipment with fast delivery.
Key features

Digital multimeter designed specifically for HVAC professionals

Includes built-in thermometer to measure temperature from -40°C to 400°C (-40°F to 752°F)

Provides microamps to test flame sensors

Features low input impedance to helps prevent false readings due to ghost voltage

Presents a large white LED backlight for working in poorly lit areas

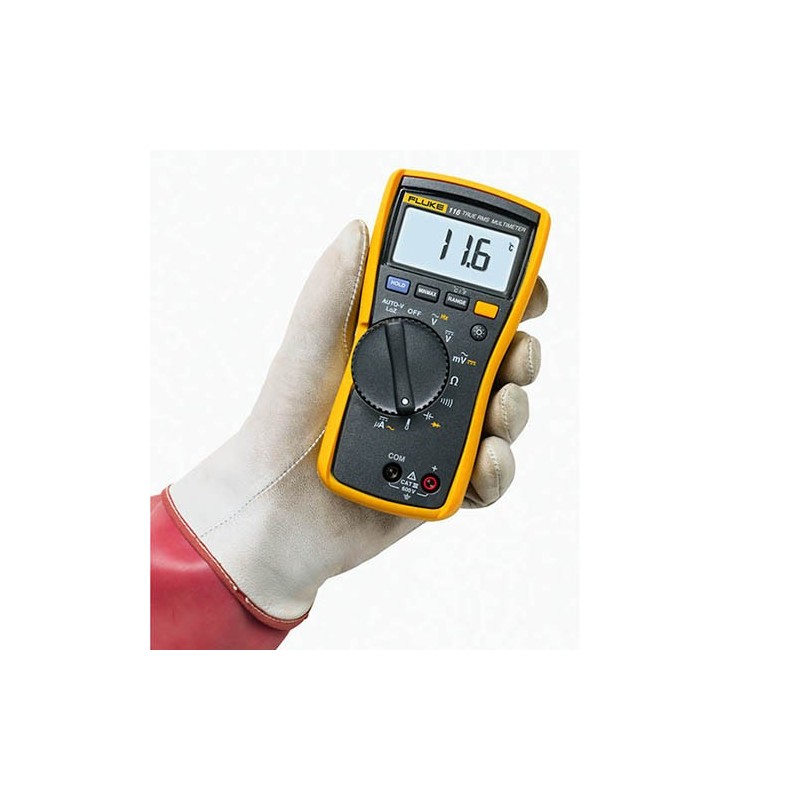

Product overview: Fluke 116 Digital HVAC Multimeter
The Fluke 116 DMM provides the features you need to quickly troubleshoot HVAC equipment TheThe Fluke 116 was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.Fluke 116 multimeters are independently tested for safe use in CAT III 600 V environments.
Other useful features:

Measures resistance, continuity, frequency, and capacitance

Provides Min/Max/Average to record signal fluctuations

Comes with a holster with probe holders for easy storage

Features a compact ergonomic design for one-handed operation

Fits into optional ToolPak™ magnetic hanger for hands-free operation

CAT III 600 V safety rated

Specifications: Fluke 116 Digital HVAC Multimeter

Specifications

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2

Display

Digital: 6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating temperature

-10°C to + 50°C

Storage temperature

-40°C to + 60°C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery life

400 hours typical, without backlight

Accuracy Specifications

DC millivolts

Range/resolution

600.0 mV / 0.1 mV

Accuracy

±([% of reading] + [counts]): 0.5% + 2

DC volts

Range/resolution

6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V

Accuracy

±([% of reading] + [counts]): 0.5% + 2

Auto volts

Range/resolution

600.0 V / 0.1 V

Accuracy

2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz)

AC millivolts1 True RMS

Range/resolution

600.0 mV / 0.1 mV

Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)

AC volts1 True RMS

Range/resolution

6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V

Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)

Continuity

Range/resolution

600 Ω / 1 Ω

Accuracy

Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of
500 μs or longer.

Ohms

Range/resolution

600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ

Accuracy

0.9% + 1

Range/Resolution

40.00 MΩ / 0.01 MΩ

Accuracy

5% + 2

Diode Test

Range/resolution

2.00 V / 0.001 V

Accuracy

0.9% + 2

Capacitance

Range/resolution

1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF

Accuracy

1.9% + 2

Range/resolution

> 1000 μF

Accuracy

5% + 20%

Lo-Z Capacitance

Range

1 nF to 500 μF

Accuracy

10% + 2 typical

Temperature²
(Type-K thermocouple)

Range/resolution

-40°C to 400°C / 0.1°C

Accuracy

1% + 10²

Range/resolution

-40°F to 752°F / 0.2°F

Accuracy

1% + 18²

AC μA true-rms (45 Hz to 500 Hz)

Range/resolution

600.0 μA / 0.1 μA

Accuracy

1.5% + 3

DC μamps

Range/resolution

600.0 μA / 0.1 μA

Accuracy

1.0% + 2

Hz (V or A input)²

Range/resolution

99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz
9.999 kHz / 0.001 Hz
50.00 kHz / 0.01 Hz

Accuracy

0.1% + 2

1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
3. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
4. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.

Mechanical and General Specifications

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Warranty

3 years
