Buy Fluke 123B Industrial ScopeMeter Hand-Held Oscilloscope, 2 Channel, 20MHz from Industry safety Nigeria, major supplier of fluke product in Nigeria.

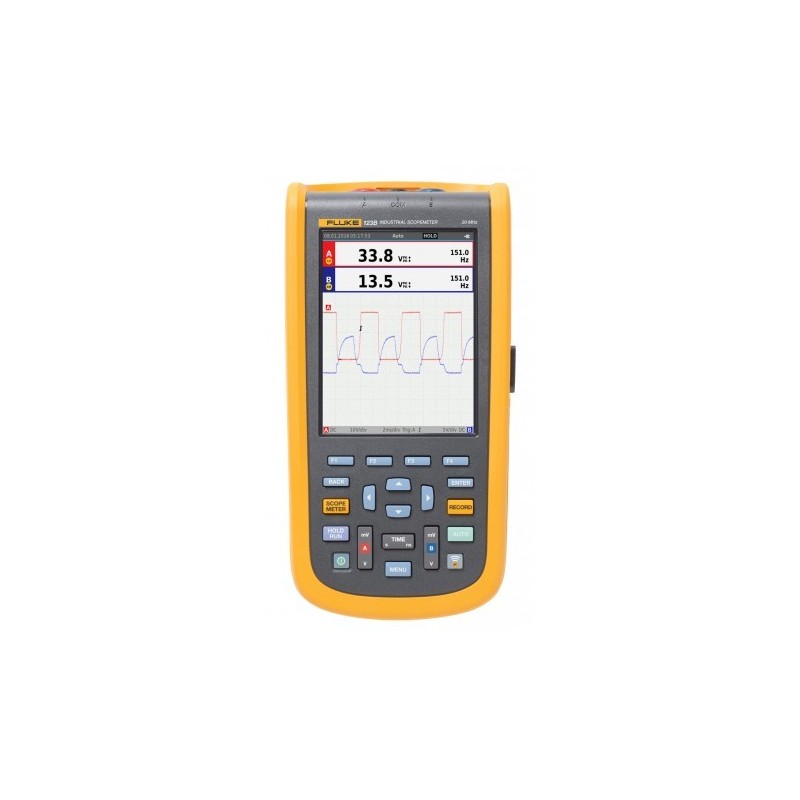

The compact Fluke 123B Industrial ScopeMeter® is the rugged oscilloscope and recorder solution for industrial electrical and electro-mechanical equipment.
Fluke 123B Offers
Features

Dual-input digital oscilloscope and multimeter

20 MHz oscilloscope bandwidth

Two 5,000-count true-rms digital multimeters

Connect-and-View™ trigger simplicity for hands-off operation; IntellaSet™ technology automatically and intelligently adjusts numerical readout

Dual-input waveform and meter reading recorder for trending data over extended periods

Recorder Event Detect captures elusive intermittent signals

WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect® mobile app*

FlukeView® ScopeMeter® Software for Windows®

Applications

Automation & Process Control

Industrial

Maintenance & Repair

Motor Drive & Control

Test & Measurement

Automobile

Fluke 123B Specifications

DC Voltage Ranges

500 mV, 5 V, 50 V, 500 V, 750 V

Accuracy

± (0.5 % +5 counts)

True-rms Voltages (V ac and V ac+dc) Ranges

500 mV, 5 V, 50 V, 500 V, 750 V

Accuracy for 5 % to 100 % of range (AC or dc coupled)

60 Hz to 20 kHz | ± (2.5 % +15 counts)

Frequency Response – DC Coupled

Without probes and test leads (with BB120)

dc to 20 MHz (-3 dB)

With STL120-IV 1:1 shielded test leads

DC to 12.5 MHz (-3 dB) / dc to 20 MHz (-6 dB)

with VP41 10:1 Probe

123B: dc to 20MHz (-3 dB)
124B and 125B: dc to 40 MHz (-3 dB)

Frequency Response – AC Coupled (If roll off)

Without probes and test leads

<10 Hz (-3 dB) With STL120-IV 1:1 shielded test leads <10 Hz (-3 dB) With VP41 10:1 Probe <10 Hz (-3 dB) Rise time, excluding probes, test leads <17.5 ns Input impedance Without probes and test leads 1 MΩ//20 pF With BB120 1 MΩ//24 pF With STL120-IV 1:1 shielded test leads 1 MΩ//230 pF With VP41 10:1 Probe 5 MΩ//15.5 pF Scope modes Normal, Single, Roll Equivalent sampling 20 ns to 500 ns/div Real time sampling 1 μs to 5 s/div What's included with the Fluke 123B Unit Statement of Calibration Accessory List CD Safety Manual Banana to BNC Adapter Power Adapter Shield Test Leads with Black ground Leads TL175 Test Leads Battery WiFi Dongle Line Cord Reference Specific ReferencesCondition New product Andrew U07/01/2020Best product EverI sincerely recommend this company industries Safety Nigeria for any industrial and marine Equipment for personal and company needs, its the best in-terms of quality and reliable products. 1 out of 1 people found this review useful.Write your reviewFluke 123B Industrial ScopeMeter Hand-Held Oscilloscope, 2 Channel, 20MHzQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
