Key features

Quickly configure, start and stop tests on the 1555 remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone

Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values

Report creation using Fluke Connect desktop saves time and makes test results easier to understand

Fluke Connect saves test results to the cloud for analysis and preventive maintenance

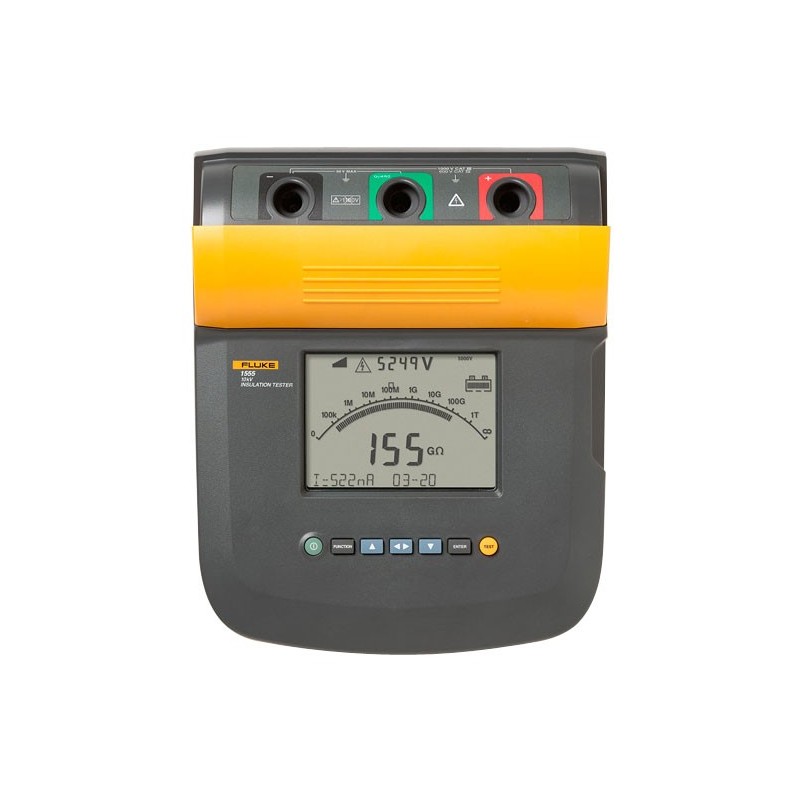

Product overview: Fluke 1555 FC 10 kV Insulation Tester Kit

Evaluate the trends, eliminate the doubt
The Fluke 1555 insulation resistance tester kit offers digital insulation testing up to 10 kV in an industrial strength case, with all the heavy duty leads and clips you need. Plus, the Fluke Connect wireless app performs tests and collects data while you stay a safe distance away.
Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, using pre-designed templates that you can customize with company logos.
Reduce the risk, improve your results when conducting high-voltage insulation tests
The world leading Fluke 1550C and 1555 insulation testers minimize the time you spend around powered equipment, while collecting data with one button push.
Fluke insulation resistance testers now have Fluke Connect capability so you can:

Work from a safe distance, using the Fluke Connect wireless app to set parameters, perform tests and collect data on your smart phone

Select Ramp, PI, DAR and basic insulation tests

CAT III 1000 V, CAT IV 600 V safety rated

See trending graphs in real-time, create reports, with Fluke Connect app

Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating.
Other useful features:

Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup

Guard system eliminates the effect of surface leakage current on high-resistance measurements

Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V

CAT III 1000 V, CAT IV 600 V safety rating

Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety

Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall

Long battery life gives the user over 750 tests between charges

Large digital/analog LCD for easy viewing

Capacitance and leakage current measurement

Ramp function for breakdown testing

Resistance measurements up to 2 TΩ

Timer settings up to 99 minutes for timed tests

3-year warranty

Specifications: Fluke 1555 FC 10 kV Insulation Tester Kit

Electrical Specifications

The tester’s accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ±.25% per °C, except on the 20% bands add ±1% per °C.

Insulation Resistance Measurement

Test voltage (DC)

250 V

Range

< 250 kΩ, 250 kΩ to 5 GΩ 5 GΩ to 50 GΩ > 50 GΩ

Accuracy (± reading)
