Key features
Safety first. Keep yourself out of harm’s way by monitoring your test measurements remotely.
Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone.
Quickly find problems by saving and comparing measurements over time on a wireless device.

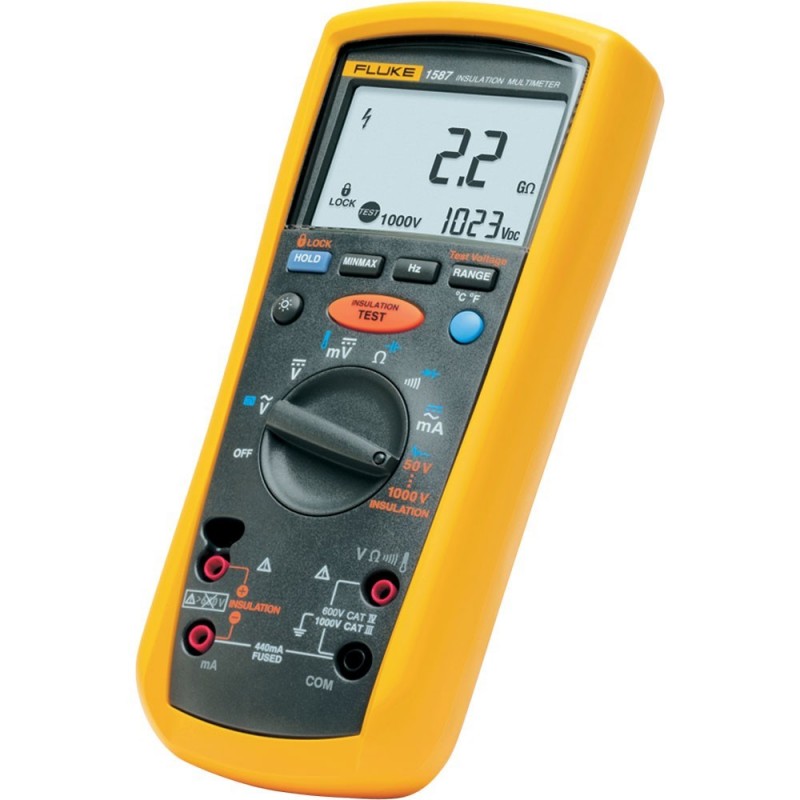

Product overview: Fluke 1587 FC Insulation Multimeter
Keep yourself safe. Find hidden problems faster. Put the paperwork down.
Fluke Connect + Fluke’s 1587 FC Insulation Multimeter helps you identify tough problems, fix, and wirelessly communicate your work quickly and easily – all at a safe distance.
Add diagnostics with Fluke Connect
The Fluke 1587 FC is Fluke Connect-enabled so you can download the free Fluke Connect® Measurements app to your smartphone and gain additional functions, including:
Safety first. Keep yourself out of harm’s way by monitoring your test measurements remotely.
Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone.
Quickly find problems by saving and comparing measurements over time on a wireless device.
PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster
Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
Temperature compensation to establish accurate baselines and relevant historical comparisons
Historical tracking and trending of assets to identify insulation degradation over time and allow real-time decisions to be made in the field with Fluke Connect® Assets (sold separately)
Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
Includes live circuit detection to prevent insulation test if voltage >30 V is detected
Provides automated temperature compensation to establish accurate baselines
Supports historical tracking and asset trending of assets to identify degradation over time with Fluke Connect® Assets (sold separately)
Incorporates VFD low-pass filter for accurate variable frequency motor drive measurements
Includes auto-discharge of capacitive voltage for added user protection
Measures ac/dc voltage, dc millivolts, ac/dc milliamps, resistance, and continuity
Includes capacitance, diode test, temperature, min/max, frequency measurements and insulation test smoothing reading
Automatically powers off to save battery power
Comes with remote probe, test leads, alligator clips, K-type thermocouple, hard case, and three-year warranty.
Specifications: Fluke 1587 FC Insulation Multimeter
Electrical Specifications
AC voltage measurement
Range
600.0 mV
Resolution
0.1 mV
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)
6.000 V
Resolution
0.001 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)
60.00 V
Resolution
0.01 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)
600.0 V
Resolution
0.1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)¹
1000 V
Resolution
1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(2% + 3)
Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)
±(2% + 3)¹
¹ 1 kHz bandwidth
Low-Pass Filter Voltage
Range
600.0 mV
Resolution
0.1 mV
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
6.000 V
Resolution
0.001 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
60.00 V
Resolution
0.01 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
600.0 V
Resolution
0.1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(1% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
1000 V
Resolution
1 V
Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)
±(2% + 3)
Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)
+(2% + 3), -(6% – 3)
DC Voltage Measurement
Range
Resolution
Accuracy ±(% of Rdg + Counts)
6.000 V dc
0.001 V
±(0.09% + 2)
60.00 V dc
0.01 V
±(0.09% + 2)
600.0 V dc
0.1 V
±(0.09% + 2)
1000 V dc
1 V
±(0.09% + 2)
Input impedance
10 MΩ (nominal), <100 pF Normal mode rejection ratio >60 dB @ 50 Hz or 60 Hz
Common mode rejection ratio
>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)
Accuracies apply to ± 100% of range
DC Millivolts Measurement
Range
Resolution
Accuracy ±(% of Rdg + Counts)
600.0 mVdc
0.1 mV
±(0.1% + 1)
DC and AC Current Measurement
AC 45 Hz to 1000 Hz
Range
400 mA
Resolution
0.1 mA
Accuracy ±(% of Rdg+Counts)
±(1.5% + 2)¹
Burden voltage (Typical)
2 mV/mA
Range
60 mA
Resolution
0.01 mA
Accuracy ±(% of Rdg+Counts)
±(1.5% + 2)¹
Burden voltage (Typical)
2 mV/mA
DC
Range
400 mA
Resolution
0.1 mA
Accuracy ±(% of Rdg+Counts)
±(0.2% + 2)
Burden voltage (Typical)
2 mV/mA
Range
60 mA
Resolution
0.01 mA
Accuracy ±(% of Rdg+Counts)
±(0.2% + 2)
Burden voltage (Typical)
2 mV/mA
Overload
600 mA for 2 minutes maximum
Fuse protection for mA input
0.44 mA, 1000 V, IR 10 kA
AC conversion
Inputs are ac-coupled and calibrated to the rms value of sine wave input
Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 up to 300 mA, decreasing linearly to crest factor ≤1.5 at 600 mA. For non-sinusoidal waveforms add +(2% reading + 2% FS) typical, for a crest factor up to 3.
¹ 1 kHz bandwidth
Ohms Measurement
Range
Resolution
Accuracy +(% of Rdg+Counts)¹
600.0 Ω
0.1 Ω
±(0.9% + 2)
6.000 kΩ
0.001 kΩ
±(0.9% + 2)
60.00 kΩ
0.01 kΩ
±(0.9% + 2)
600.0 kΩ
0.1 KΩ
±(0.9% + 2)
6.000 MΩ
0.001 MΩ
±(0.9% + 2)
50.0 MΩ ²
0.01 MΩ
±(1.5% + 3)
Overload protection
1000 V rms or dc
Open circuit test voltage
<8.0 V dc Short circuit current <1.1 mA ¹ Accuracies apply from 0% to 100% of range ² Up to 80% relative humidity Diode Test Diode test indication Display voltage drop: 0.6 V at1.0 mA nominal test current: Accuracy ±(2% + 3) Continuity Test Continuity indication Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω Open circuit voltage <8.0 V Short circuit current 1.0 mA typical Overload protection 1000 V rms Response time >1 m sec
Frequency Measurement
Range
Resolution
Accuracy ±(% of Rdg+Counts)
99.99 Hz
0.01 Hz
±(0.1% + 1)
999.9 Hz
0.1 Hz
±(0.1% + 1)
9.999 kHz
0.001 kHz
±(0.1% + 1)
99.99 kHz
0.01 kHz
±(0.1% + 1)
Frequency Counter Sensitivity
600.0 mV ac
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
100.0 mV
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
150.0 mV
DC Trigger Levels¹ to 20 kHz²
NA
6.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
1.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
1.5 V
DC Trigger Levels¹ to 20 kHz²
-400.0 mV and 2.5 V
60.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
10.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
36.0 V
DC Trigger Levels¹ to 20 kHz²
1.2 V and 4.0 V
600.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
100.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
–
DC Trigger Levels¹ to 20 kHz²
12.0 V and 40.0 V
1000.0 V
V ac Sensitivity (RMS Sine Wave)¹ 5 Hz to 20 kHz
300.0 V
V ac Sensitivity (RMS Sine Wave)¹ 20 kHz to 100 kHz
–
DC Trigger Levels¹ to 20 kHz²
12.0 V and 40.0 V
¹ Maximum input for specified accuracy = 10x range (1000 V max). Noise at low frequencies and amplitudes may affect accuracy
² Usable to 100 kHz with full scale input
Capacitance
Range
Resolution
Accuracy ±(% of Rdg+Counts)
1000 nF
1 nF
±(1.2% + 2)
10.00 μF
0.01 μF
±(1.2% + 2)
100.0 μF
0.1 μF
±(1.2% ±90 counts)
9999 μF
1 μF
±(1.2% ±90 counts)
Temperature Measurement
Range
Resolution
Accuracy ±(% of Rdg+Counts)¹
-40 ° C to 537 ° C
0.1 °C
±(1% + 10 counts)
-40 ° F to 998 ° F
0.1 °F
±(1% + 18 counts)
¹ Accuracies apply following 90 minutes settling time after a change in the ambient temperature of the instrument
Insulation Specifications
Measurement range
0.01 MΩ to 2 GΩ
Test voltages
50, 100, 250, 500, 1000 V
Test voltage accuracy
+20%, -0%
Short-circuit test current
1 mA nominal
Auto discharge
Discharge time <0.5 second for C = 1 μF or less Live circuit detection Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load
Operable with up to 1 μF load
Output Voltage
50 V (0% to +20%)
Display range
0.01 to 6.00 MΩ
Resolution
0.01 MΩ
Test current
1 mA @ 50 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
Display range
6.0 to 50.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 50 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
100 V (0% to +20%)
Display range
0.01 to 6.00 MΩ
Resolution
0.01 MΩ
Test current
1 mA @ 100 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
Display range
6.0 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 100 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
Display range
60 to 100 MΩ
Resolution
1 MΩ
Test current
1 mA @ 100 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(3% + 5 counts)
250 V (0% to +20%)
Display range
0.1 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 250 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
60 to 250 MΩ
Resolution
1 MΩ
Test current
1 mA @ 250 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
500 V (0% to +20%)
Display range
0.1 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 500 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
60 to 500 MΩ
Resolution
1 MΩ
Test current
1 mA @ 500 kΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
1000 V (0% to +20%)
Display range
0.1 to 60.0 MΩ
Resolution
0.1 MΩ
Test current
1 mA @ 1 MΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
60 to 600 MΩ
Resolution
1 MΩ
Test current
1 mA @ 1 MΩ
Resistance accuracy ±(% of Rdg + Counts)
±(1.5% + 5 counts)
Display range
0.6 to 2.0 GΩ
Resolution
100 MΩ
Test current
1 mA @ 1 MΩ
Resistance accuracy ±(% of Rdg + Counts)
±(10% + 3 counts)
General Specifications
Maximum voltage applied to any terminal and common
1000 V
Storage temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Operating temperature
-20 °C to 55 °C (-4 °F to 131 °F)
Temperature coefficient
0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)
Relative humidity
Noncondensing
0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F)
0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F)
0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)
Vibration
Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
Radio frequency communication
2.4 GHz ISM Band
Radio frequency certification
FCC: T68-FBLE, IC: 6627A-FBLE
Electromagnetic Compatibility
International
IEC 61326-1:Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. The equipment may not meet the immunity requirements of this standard when test leads and/or test probes are connected.
Korea (KCC)
Class A Equipment (Industrial Broadcasting & Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Enclosure protection
IEC 60529: IP40 (non-operating)
Safety
IEC 61010-1
Pollution Degree 2
IEC 61010-2-033
CAT IV 600 V / CAT III 1000 V
Batteries
Four AA batteries (NEDA 15A or IEC LR6)
Battery life
Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
Size (H x W x L)
5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Weight
550 g (1.2 lb)
Altitude
Operating
2000 m
Storage
12,000 m
Over-range capability
110% of range except for capacitance which is 100%
Frequency overload protection
<107 V Hz Fuse protection for mA input 0.44A, 1000 V, IR 10 kA Reference Specific ReferencesCondition New product Andrew U03/20/2020Fluke 1587 FC Insulation Multimetervery good multimeterWrite your reviewFluke 1587 FC Insulation MultimeterQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
