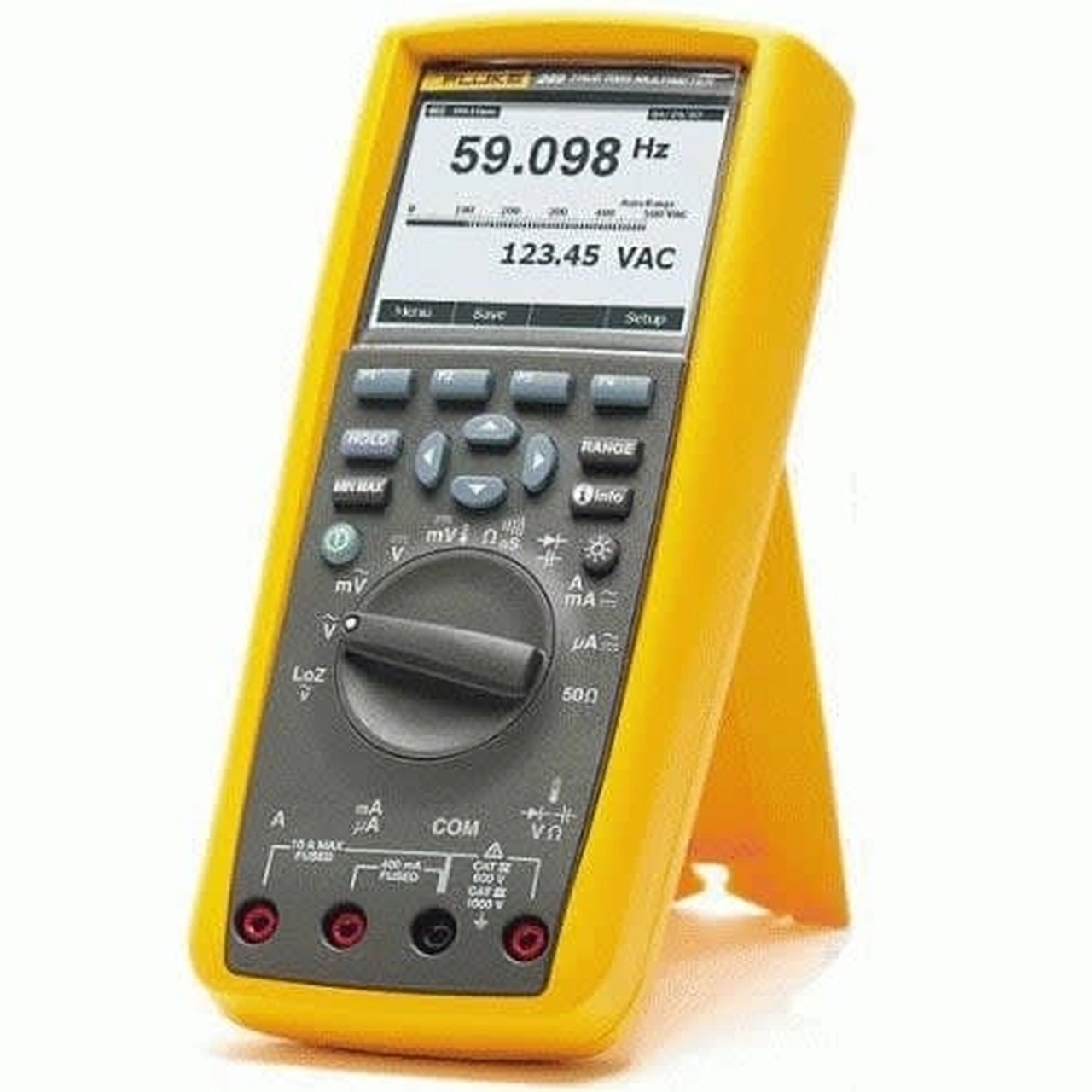

Name: METER

Brand: FLUKE

Part Number: 289

Description: TRUE RMS DATA LOGGING MULTIMETER

Capacity: 1000V

Category: INDUSTRIAL INSTRUMENTS

Class: TEST & INSPECTION EQUIPMENT

Range: METERS
SPECIFICATION:

> DC VOLTS:

RANGE / RESOLUTION: 50.000 MV, 500.00 MV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

BASIC ACCURACY: 0.025%

AC VOLTS:

RANGE / RESOLUTION: 50.000 MV, 500.00 MV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V

BASIC ACCURACY: 0.4% (TRUE-RMS)

> DC CURRENT:

RANGE / RESOLUTION: 500.00 ?A, 5000.0 ?A, 50.000 MA, 400.00 MA, 5.0000 A, 10.000 A

BASIC ACCURACY: 0.05%

> AC CURRENT:

RANGE / RESOLUTION: 500.00 ?A, 5000.0 ?A, 50.000 MA, 400.00 MA, 5.0000 A, 10.000 A

BASIC ACCURACY: 0.6% (TRUE-RMS)

> TEMPERATURE (EXCLUDING PROBE):

RANGE / RESOLUTION: -200.0?C TO 1350.0?C (-328.0?F TO 2462.0?F)

BASIC ACCURACY: 1.0%

> RESISTANCE:

RANGE / RESOLUTION: 50.000 ?, 500.00 ?, 5.0000 K?, 50.000 K?, 500.00 K?, 5.0000 M?, 50.00 M?, 500.0 M?

BASIC ACCURACY: 0.05%

> CAPACITANCE:

RANGE / RESOLUTION: 1.000 NF,10.00 NF 100.0 NF, 1.000 ?F, 10.00 ?F, 100.0 ?F, 1000 ?F, 10.00 MF, 100 MF

BASIC ACCURACY: 1.0%

> FREQUENCY:

RANGE / RESOLUTION: 99.999 HZ, 999.99 HZ, 9.9999 KHZ, 99.999 KHZ, 999.99 KHZ

BASIC ACCURACY: 0.005%

> CONNECTIVITY: OPTIONAL INFRARED CONNECTOR VIA FLUKE IR3000 FC

> MAXIMUM VOLTAGE BETWEEN ANY TERMINAL AND EARTH GROUND: 1000 V

> BATTERY TYPE: 6 AA ALKALINE BATTERIES, NEDA 15A IECLR6

> BATTERY LIFE: 100 HOURS MINIMUM, 200 HOURS IN LOGGING MODE

> TEMPERATURE:

> OPERATING: -20?C TO 55?C

> STORAGE: -40?C TO 60?C

> RELATIVE HUMIDITY: 0 TO 90% (0 TO 37?C), 0 TO 65% (37?C TO 45?C), 0 TO 45% (45?C TO 55?C)
USED BY:

> PROFESSIONAL TRADESMEN

> MECHANICAL & ENGINEERING

> DO-IT-YOURSELF (DIY)
APPLICATION:

ENGINEERING

INDUSTRIAL
Product Condition: NEW
