Product overview:

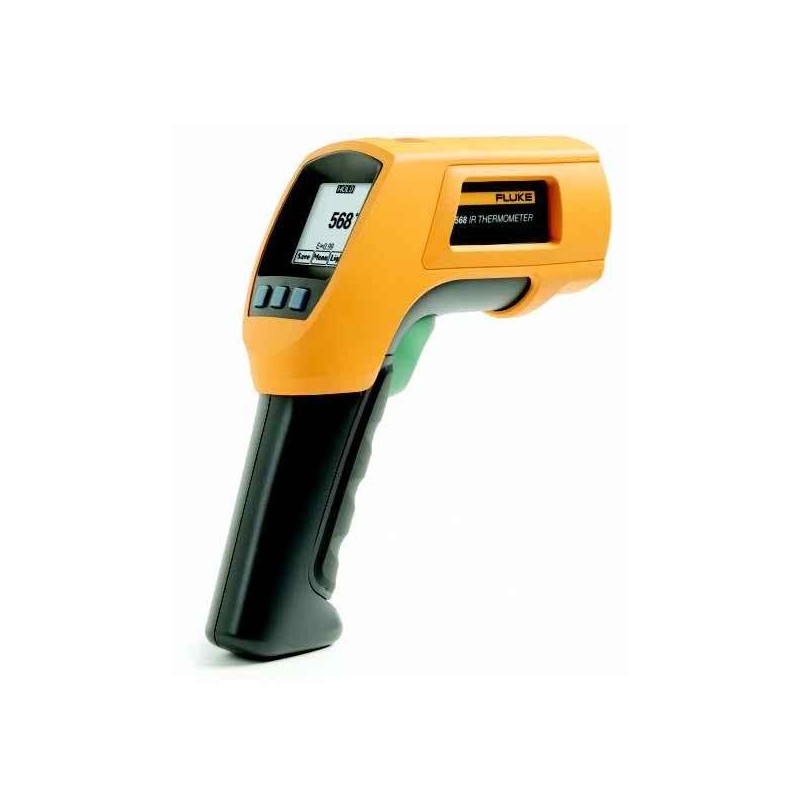

568 Contact & Infrared Temp Gun
Fluke 568 two-in-one infrared and contact thermometer handles a wide temperature range
The Fluke 568 Infrared Thermometer is a combination of contact and non-contact thermometer in one. It offers a wider temperature range than most other infrared thermometers while offering users more features controlled through an intuitive graphical display and menu. The simple, three-button on-screen menu interface (in 7 languages) is quick to use and makes even complex measurements easy. It takes just a few pushes of a button to adjust emissivity, record data, or turn on and off alarms. The 50:1 distance-to-spot ratio allows you to measure smaller objects from further away. And you can count on the rugged, ergonomic design to stand up to tough industrial, electrical, HVAC, and mechanical environments to help you work more efficiently in more applications.
Other useful features:
Allows easy access to advanced features with soft-key buttons and graphical display
Captures up to 99 points of data for quick downloading to a PC through the USB connection
Includes FlukeView® Forms software for easy trending and data analysis
Can be powered from your laptop via the USB to extend battery life
Quickly identifies problems with MIN, MAX, AVG, and DIF functions
Allows you to confidently measure a wide variety of surfaces with adjustable emissivity and a built-in materials table
Easily adapts to lighting conditions with a two-level backlight
Instantly alerts to measurements outside of set limits with audible and visual alarms
Provides 1% measurement accuracy
Comes with thermocouple K bead probe, durable hard case, and a two-year warranty

Product Specifications
Infrared temperature range
-40°C to 800°C (-40°F to 1472°F)
Infrared accuracy
< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display resolution
0.1°C / 0.1°F
Infrared spectral response
8 µm to 14 µm
Infrared response time
< 500 msec Thermocouple Type-K input temperature range -270°C to 1372°C (-454°F to 2501°F) Thermocouple Type-K input accuracy -270°C to -40°C ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) -40°C to 1372°C ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater D:S (distance to measurement spot size) 50:1 Laser sighting Single-point laser < 1 MW output Class 2 (II) operation, 630 nm to 670 nm Minimum spot size 19 mm (0.75 in) Emissivity adjustment By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 Data storage with date/time stamp 99 points PC interface and cable USB 2.0 with FlukeView® Forms software Hi/Low alarms Audible and two-colour visual Min/Max/Avg/Dif Yes Display Dot-matrix 98 x 96 pixels with function menus Backlight Two levels, normal and extra bright for darker environments Trigger lock Yes Switchable Celsius and Fahrenheit Yes Power 2 AA/LR6 Batteries and USB when used with a PC Battery life If used continuously Laser and backlight on,12 hours; laser and backlight off, 100 hours Operating temperature 0°C to 50°C (32°F to 122°F) Storage temperature -20°C to 60°C (-40°F to 140°F) Bead thermocouple Type-K range -40°C to 260°C (-40°F to 500°F) Bead thermocouple Type-K accuracy ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F) Reference Specific ReferencesCondition New product Andrew U03/20/2020Fluke 568 Non-Contact & Contact Thermometertwo in one with an innovative dot1 out of 1 people found this review useful.Write your reviewFluke 568 Non-Contact & Contact Infrared Temp Gun ThermometerQuality12345Delivery12345Communication12345Pricing12345Title for your review*Your review*Required fields* Send or Cancel
