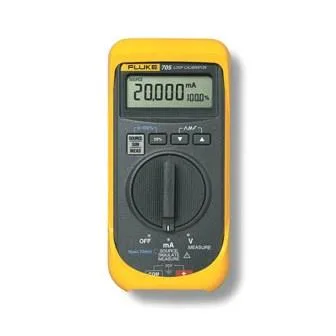

Name: METER

Brand: FLUKE

Part Number: 705

Description: LOOP CALIBRATOR METER

Category: INDUSTRIAL INSTRUMENT

Class: TEST & INSPECTION EQUIPMENT

Range: CALIBRATOR
FEATURES:

> PROVIDES A VERY COST EFFECTIVE, INTEGRATED SOLUTION FOR CALIBRATION, REPAIR, AND MAINTENANCE OF MILLIAMP LOOPS

> PROVIDES SIMULTANEOUS MA AND % READOUT FOR QUICK, EASY INTERPRETATION OF READINGS

> FEATURES PUSH BUTTON 25% STEPS FOR FAST, EASY LINEARITY CHECKS

> MA SOURCING, SIMULATION AND MEASUREMENT

> 0.02% ACCURACY AND 0.001 MA RESOLUTION.

> SIMULTANEOUS MA AND % OF SPAN DISPLAY.

> 24 V LOOP SUPPLY WITH MA MEASURE.

> 0-28 VDC MEASUREMENT TO CHECK LOOP VOLTAGE

> EASY BATTERY EXCHANGE WITHOUT OPENING THE CASE

> INCLUDES ?SPAN CHECK? FOR FAST CONFIRMATION OF ZERO AND SPAN

> PROVIDES SELECTABLE SLOW RAMP, FAST RAMP, AND STEP TO PROVIDE SMOOTH OUTPUTS FOR VALVE SLEWING AND LOOP FUNCTIONAL TESTS

> INCLUDES A 24VOLT INTERNAL LOOP SUPPLY, SO YOU CAN POWER AND READ A TRANSMITTER AT THE SAME TIME WITHOUT A DMM

> RUNS ON A SINGLE 9V BATTERY THAT IS EASILY CHANGED WITHOUT BREAKING THE CALIBRATION SEAL

> OFFERS 0 ? 20 MA OR 4 ? 20 MA DEFAULT START UP MODES

> COMES WITH A PROTECTIVE YELLOW HOLSTER WITH TEST LEAD STORAGE
APPLICATION:

> SIGNAL PROCESSING

> SYSTEM MONITORING

> TEST & MEASUREMENT
KIT INCLUDES:

> AC70A ALLIGATOR CLIPS

> C10 PROTECTIVE YELLOW HOLSTER WITH FLEX-STAND?

> INSTRUCTION SHEET

> TL75 SAFETY-DESIGNED TEST LEAD SET

> NIST- TRACEABLE CALIBRATION REPORT AND DATA
Product Condition: NEW
