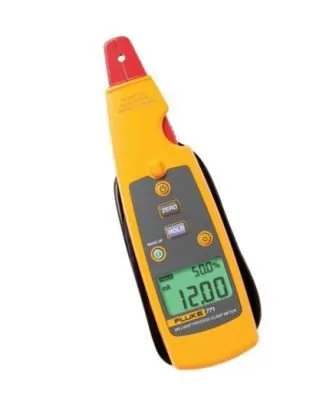

Name: METER

Brand: FLUKE

Part Number: 771

Description: CLAMP METER

Capacity:-10 to 50?C (OPERATING TEMPERATURE)

Category: INDUSTRIAL INSTRUMENT

Class: TEST & INSPECTION EQUIPMENT

Range: METER
SPECIFICATION:

> DIAMETER OF MEASURABLE CONDUCTOR: 0.177 IN OR 4.5 MM MAX

> OPERATING TEMPERATURE: -10 TO 50?C

> STORAGE TEMPERATURE: -25 TO 60?C

> OPERATING HUMIDITY: < 90% @ < 30?C, < 75% @ 30 TO 55?C > OPERATING ALTITUDE: 0 TO 2000 M

> IP RATING: IP40

> VIBRATION: RANDOM 2 G, 5 TO 500 HZ

> SHOCK: 1 M DROP TEST (EXCEPT THE JAW)

> EMI/RFI:

MEETS EN61326-1

FOR CURRENT MEASUREMENT W/ JAW, ADD 1 MA TO

SPECIFICATION FOR EMC FIELD STRENGTHS OF 1 V/M UP TO 3 V/M.

> Temperature coefficient:

0.01% ?C

(< 18?C or > 28?C)

> POWER, BATTERY LIFE: (2) AA 1.5 V ALKALINE, IEC LR6, 40 HOURS TYPICAL
FEATURES:

MEASURES UP TO 4-20 MA SIGNALS WITHOUT (BREAKING THE LOOP)? IN OTHER TO MEASURE LOW LEVEL DC CURRENT WHILE SAVING YOUR TIME AND MONEY. IT CAN ALSO BE USE TO MEASURE OUTPUT SIGNALS FROM TRANSMITTERS WITHOUT BREAKING THE LOOP WHEN MAINTAINING AND TROUBLESHOOTING PROCESS AND AUTOMATION EQUIPMENT. WHICH SAVES TIME AND AVOIDS DISRUPTION TO THE PROCESS. THE DETACHABLE CLAMP CAN BE ATTACHED TO THE WIRE YOU ARE TESTING WHILE YOU MOVE THE METER CONNECTED TO THE EXTENSION CABLE,TO A NICE VIEWING POSITION..WHICH IS VERY HELPFUL FOR TAKING ACCURATE READINGS IN LIGHT LOCATIONS.
USED BY:

> PROFESSIONAL TRADESMEN

> ENGINEERS

> DO-IT-YOURSELF (DIY)
APPLICATION:

> ENGINEERING

> FIELD WORK
Condition: NEW
