Key features

All functionality of the 87V Industrial Digital Multimeter, plus:

Fully insulated 3 mm exposed metal test probes for electricians working in high energy environments

C35 Soft Carrying Case holds meter, test leads and other accessories

TPAK magnetic hanging strap lets you attach the meter to any ferrous surface, such as cabinets and iron pipes.

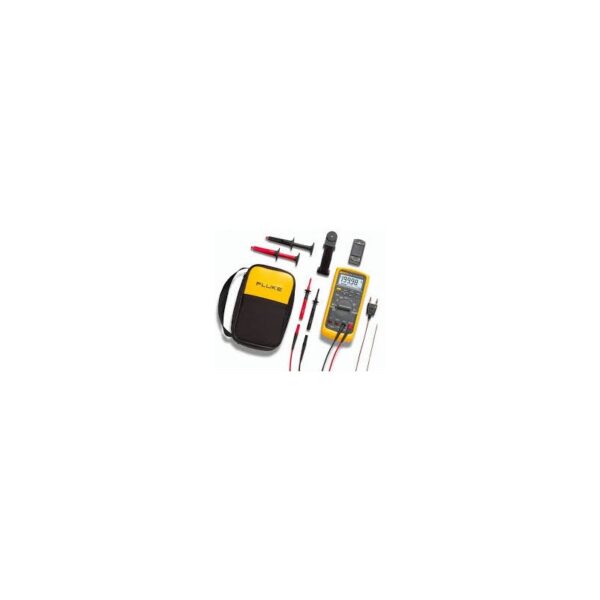

Product overview: Fluke 87V/E2 Industrial Electrician Combo Kit

Ideal for electricians, this combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world and includes essential accessories to make you even more productive. This kit offers 15% savings compared with the individual price of all the accessories. Plus you’ll be working with the most trusted tools in the world.
Assembled in the USA. Lifetime warranty.
The Fluke 87V/E2 Industrial Electrician Combo Kit is designed and assembled in the USA. The 87V multimeter is backed by a limited lifetime warranty, so you can rely on your DMM every time you take it out of your tool box.
Solve the difficult problems
Working on VSDs/VFDs: Take accurate voltage, current and frequency measurements on the output side of the drive at either the drive itself or at the motor terminals.
Industrial troubleshooting: Get the resolution and accuracy you need to solve more problems on motor drives, in-plant automation, power distribution, and electromechanical equipment.
Checking power quality: Capture glitches and spikes as short as 250 μs. Identify irregular signals.
Advanced measurement functions

True-rms ac measurements

0.05% dc accuracy

6,000 counts, 3-3/4 digit resolution, or 20,000 counts, 4-1/2 digit—resolution

10 A ac or dc (with test leads and current jacks) with 0.1 μA resolution

Temperature measurements up to 1090 °C with included thermocouple probe

Provides 10,000 µF capacitance range for components and motor caps

Provides peak capture and Min/Max/Avg recording to capture intermittent as short as 250 µS

Easy access door for fast battery changes without breaking the calibration seal

Fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks

Presents a large digit display with bright, two-level backlight for easier reading in low light

Includes an analog bar graph for fast changing or unstable signals

Auto and manual ranging for maximum flexibility

Relative mode to calculate and display difference between two readings

Holds readings on display for safe viewing after removing probes using Touch Hold technology

Electrical Safety
All inputs are protected to CAT IV 600 V, CAT III 1000 V. They can withstand impulses in excess of 8.000 V and reduce risks related to surges and spikes.
Specifications: Fluke 87V/E2 Industrial Electrician Combo Kit

Specifications

Voltage DC

Maximum Voltage

1000 V

Accuracy

±(0.05% + 1)

Maximum Resolution

10 µV

Voltage AC

Maximum Voltage

1000 V

Accuracy

±(0.7% + 2) True RMS

AC Bandwidth

20 kHz with low pass filter; 3 db @ 1 kHz

Maximum Resolution

0.1 mV

Current DC

Maximum Amps

10 A (20 A for 30 seconds maximum)

Amps Accuracy

±(0.2% + 2)

Maximum Resolution

0.01 µA

Current AC

Maximum Amps

10 A (20 A for 30 seconds maximum)

Amps Accuracy

±(1.0% + 2) True RMS

Maximum Resolution

0.1 µA

Resistance

Maximum Resistance

50 MΩ

Accuracy

±(0.2% + 1)

Maximum Resolution

0.1Ω

Capacitance

Maximum Capacitance

9,999 µF

Accuracy

±(1% + 2)

Maximum Resolution

0.01 nF

Frequency

Maximum Frequency

200 kHz

Accuracy

±(0.005% + 1)

Maximum Resolution

0.01 Hz

Duty Cycle

Maximum Duty Cycle

99.9%

Accuracy

±(0.2% per khz +0.1%)

Maximum Resolution

0.1%

Temperature Measurement

-200.0°C – 1090°C
-328.0°F – 1994.0°F
excluding probe

80 BK Temperature Probe

-40.0°C – 260°C
-40.0°F – 500°F, 2.2°C or 2% whichever is greater

Conductance

Maximum Conductance

60.00 nS

Accuracy

±(1.0% + 10)

Maximum Resolution

0.01 nS

Diode

Range

3 V

Resolution

1 mV

Accuracy

±(2% + 1)

Duty Cycle Range

Accuracy

Within ±(02% per kHz +0.1%)

Environmental Specifications

Operating Temperature

-20°C to +55°C

Storage Temperature

-40°C to +60°C

Humidity (Without Condensation)

0% – 90% (0°C – 35°C)
0% – 70% (35°C – 55°C)

Operating Altitude

2000 m

Safety Specifications

Overvoltage category

EN 61010-1 to 1000 V CAT III, 600V CAT IV

Agency Approvals

UL, CSA, TÜV, VDE listed

Mechanical and General Specifications

Size

201 x 98 x 52 mm (with holster)

Weight

355 g
624 g – with holster

Display

Digital

6000 counts updates 4/sec.
19,999 counts in high-resolution mode

Analog

32 segments, updates 40/sec.

Frequency

19,999 counts, updates 3/sec at > 10 Hz

Warranty

Lifetime

Battery Life

Alkaline

~400 hours typical, without backlight

Shock

1 Meter drop per IEC 61010-1:2001

Vibration

Per MIL-PRF-28800 for a Class 2 instrument
