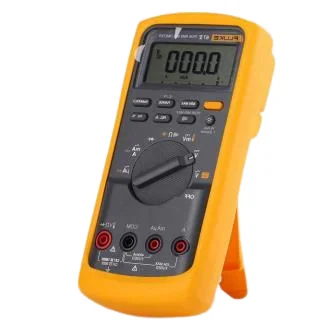

Name: METER

Brand: FLUKE

Part Number: 87V

Description: INDUSTRIAL TRUE-RMS MULTI-METER

Capacity: 1000v

Category: INDUSTRIAL INSTRUMENT

Class: TEST & INSPECTION EQUIPMENT

Range: METERS
SPECIFICATIONS:

> VOLTAGE DC:

MAXIMUM VOLTAGE: 1000 V

ACCURACY: ? (0.7% + 2) TRUE RMS

AC BANDWIDTH: 20 KHZ WITH LOW PASS FILTER; 3 DB @ 1 KHZ

MAXIMUM RESOLUTION: 0.1 Mv
> CURRENT DC:

MAXIMUM AMPS : 10 A (20 A FOR 30 SECONDS MAXIMUM)

AMPS ACCURACY: ? (0.2% + 2)

MAXIMUM RESOLUTION: 0.01 ?A
> CURRENT AC:

MAXIMUM AMPS : 10 A (20 A FOR 30 SECONDS MAXIMUM)

AMPS ACCURACY: ? (1.0% + 2) TRUE RMS

MAXIMUM RESOLUTION: 0.1 ?A
> RESISTANCE:

MAXIMUM RESISTANCE: 50 M?

AMPS ACCURACY: ? (0.2% + 1)

MAXIMUM RESOLUTION: 0.1 ?
> CAPACITANCE:

MAXIMUM CAPACITANCE: 9,999 ?F

AMPS ACCURACY: ? (1% + 2)

MAXIMUM RESOLUTION: 0.01 Nf
> FREQUENCY:

MAXIMUM FREQUENCY: 200 KHz

ACCURACY: ? (0.005% + 1)

MAXIMUM RESOLUTION: 0.01 Hz

> DUTY CYCLE:

MAXIMUM DUTY CYCLE: 99.9%

ACCURACY: ? (0.2% per kHz + 0.1%)

MAXIMUM RESOLUTION: 0.1%
> TEMPERATURE MEASUREMENT:

?200.0 ?C ? 1090 ?C

?328.0 ?F ? 1994.0 ?F

Excluding probe

> 80 BK TEMPERATURE PROBE:

?40.0 ?C ? 260 ?C

?40.0 ?F ? 500 ?F, 2.2 ?C OR 2% WHICHEVER IS GREATER
> CONDUCTANCE:

MAXIMUM CONDUCTANCE: 60.00 nS

ACCURACY: ? (1.0% + 10)

MAXIMUM RESOLUTION: 0.01 Ns
> DIODE:

RANGE: 3V

RESOLUTION: 1MV

ACCURACY: ? (2% + 1)
> DUTY CYCLE RANGE:

ACCURACY: Within ? (0.2% per kHz + 0.1%)
> ENVIRONMENTAL SPECIFICATIONS:

OPERATING TEMPERATURE: ?20 ?C to + 55 ?C

STORAGE TEMPERATURE: ?40 ?C to + 60 ?C
> HUMIDITY (WITHOUT CONDENSATION):

0% ? 90% (0 ?C ? 35 ?C)

0% ? 70% (35 ?C ? 55 ?C)
> OPERATING ALTITUDE: 200M

BATTERY LIFE: ALKALINE: ~400 HOURS TYPICAL, WITHOUT BACKLIGHT
FEATURES:

> USE IN IDENTIFYING COMPLEX SIGNAL PROBLEMS FAST.

> IT SUPPORTS ACCURATE MEASUREMENTS ON VFDs USING A LOW-PASS FILTER.

> ALSO CAPTURES INTERMITTENTS AS FAST AS 250 ?S WITH PEAK.
USED BY:

> PROFESSIONAL TRADESMEN

> MECHANICAL & ENGINEERING

> DO-IT-YOURSELF (DIY)

APPLICATION:

ENGINEERING
Product Condition: NEW
