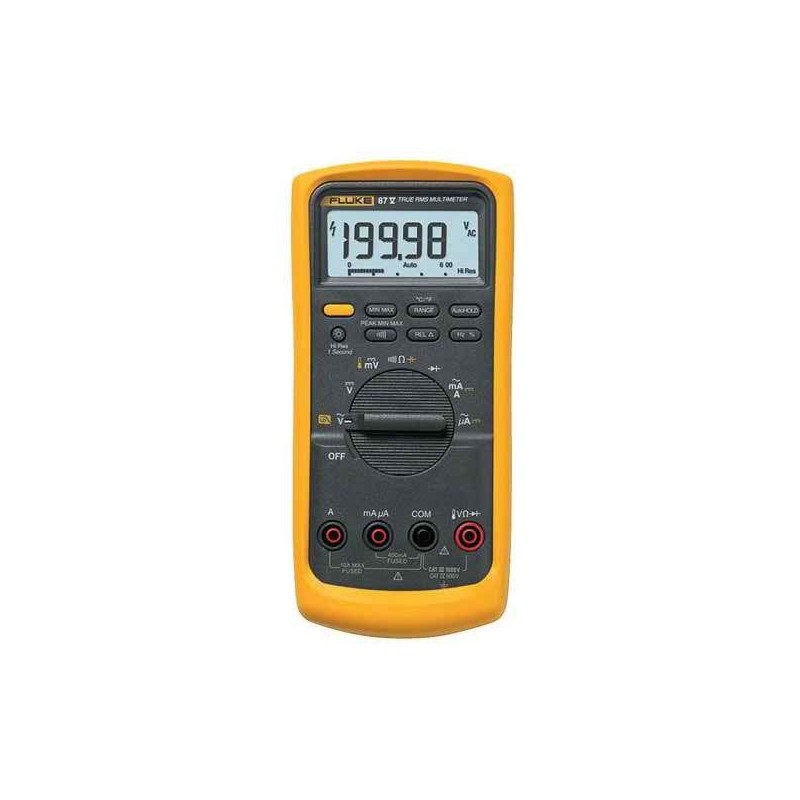

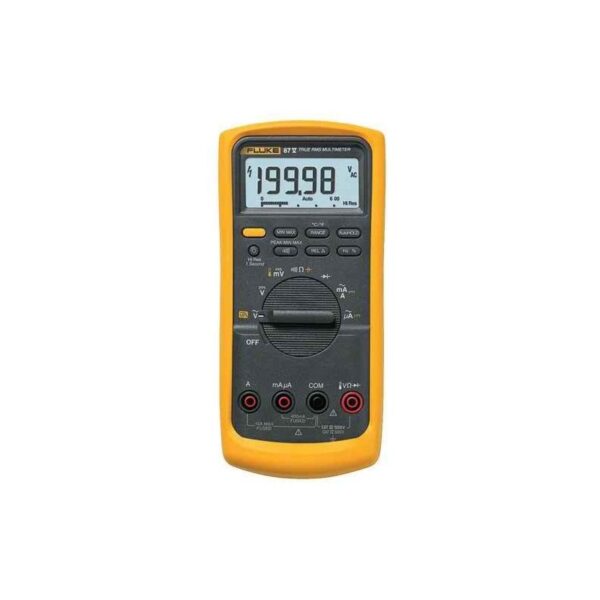

Fluke 87V TRMS Industrial Multimeter
The Fluke 87V TRMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations.
This digital multimeter takes the guesswork out of drive system troubleshooting. This electrical multimeter
includes a unique function for accurately measuring noisy at the VFD and at the motor terminals. Special shielding blocks high frequency, high-energy noise generated by large drive systems.
The Fluke 80 Series V of digital multimeters have improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electro-mechanical equipment.
Other useful features
Rugged, high accuracy industrial electrical multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
Offers true-RMS AC voltage and current for measuring non-linear signals
Captures intermittents as short as 250 µS
Safety rated CAT III 1000 V, CAT IV 600 V
Includes a built-in thermometer and temperature probe
Applications
For Application engineer / Plant engineer / Industrial electricians (Working with VSD’s) / Electrical engineer. In-plant automation, Power distribution, Electro-mechanical equipment, Industrial electronics, Setting up / repairing, adjustable speed motor drives.
Includes
TL75 Test Leads
AC175 Alligator Clips
Holster
9V Battery (Installed)
80BK Temperature Probe
Specifications
Voltage DC
Maximum voltage
1000 V
Accuracy
±(0.05% + 1)
Maximum resolution
10 µV
Voltage AC
Maximum voltage
1000 V
Accuracy
±(0.7% + 2) True RMS
AC bandwidth
20 kHz with low pass filter; 3 db @ 1 kHz
Maximum resolution
0.1 mV
Current DC
Maximum amps
10 A (20 A for 30 seconds maximum)
Amps accuracy
±(0.2% + 2)
Maximum resolution
0.01 µA
Current AC
Maximum amps
10 A (20 A for 30 seconds maximum)
Amps accuracy
±(1.0% + 2) True RMS
Maximum resolution
0.1 µA
Resistance
Maximum resistance
50 MΩ
Accuracy
±(0.2% + 1)
Maximum resolution
0.1 Ω
Capacitance
Maximum capacitance
9,999 µF
accuracy
±(1% + 2)
Maximum resolution
0.01 nF
Frequency
Maximum frequency
200 kHz
Accuracy
±(0.005% + 1)
Maximum resolution
0.01 Hz
Duty cycle
Maximum duty cycle
99.9%
Accuracy
±(0.2% per khz + 0.1%)
Maximum resolution
0.1%
Temperature measurement
–200.0 °C – 1090 °C
–328.0 °F – 1994.0 °F
excluding probe
80 BK temperature probe
–40.0 °C – 260 °C
–40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
Conductance
Maximum conductance
60.00 nS
Accuracy
±(1.0% + 10)
Maximum resolution
0.01 nS
Diode
Range
3 V
Resolution
1 mV
Accuracy
±(2% + 1)
Duty cycle range
Accuracy
Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature
–20 °C to + 55 °C
Storage temperature
–40 °C to + 60 °C
Humidity (without condensation)
0% – 90% (0 °C – 35 °C)
0% – 70% (35 °C – 55 °C)
Operating Altitude
2000 m
Safety Specifications
Overvoltage category
EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals
UL, CSA, TÜV, VDE listed
Mechanical and General Specifications
Size
201 x 98 x 52 mm (with holster)
Weight
355 g
624 g – with holster
Display
Digital
6000 counts updates 4/sec.
19,999 counts in high–resolution mode
Analog
32 segments, updates 40/sec
Frequency
19,999 counts, updates 3/sec at > 10 Hz
Warranty
Lifetime
Battery Life
Alkaline
~400 hours typical, without backlight
Shock
1 Meter drop per IEC 61010–1:2001
Vibration
Per MIL–PRF–28800 for a Class 2 instrument
