Overview
Essential details
- Warranty:
-
1 Year
- Customized support:
-
OEM
- Place of Origin:
-
Hebei, China
- Brand Name:
-
WESHINE
- Model Number:
-
VS-9803
- Power:
-
Electronic, 100 W
- Product Name:
-

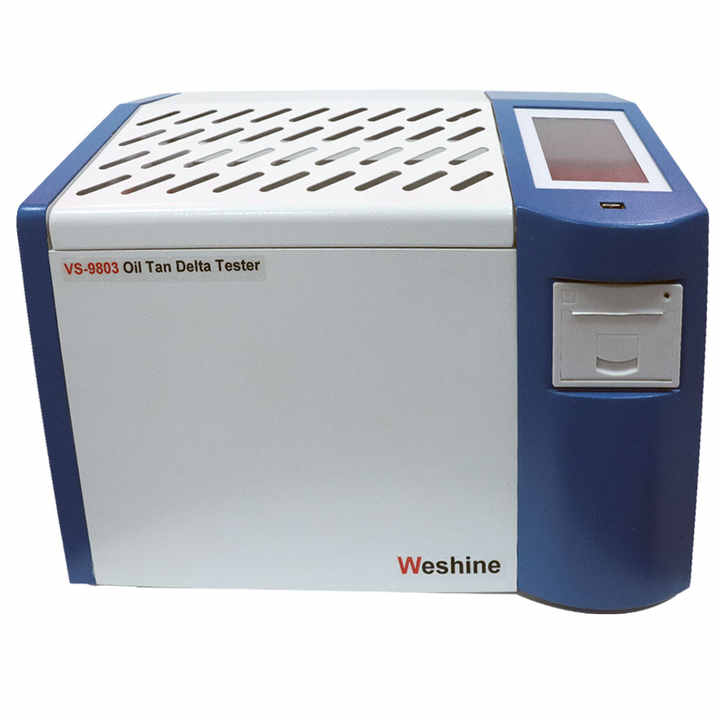

OIL TAN DELTA TESTER
- Function 1:
-
Test of Tan Delta
- Function 2:
-
Test of Volume Resistivity
- Test Range of Tan Delta:
-
0.00001 ~ 100
- Test Range of Volume Resistivity:
-
2.5 MΩm~20 TΩm
- Range of Capacitance:
-
5 pF ~ 200 pF
- Range of DC Voltage:
-
0 ~ 500 V
- Range of AC Voltage:
-
200 ~ 2200 V
- Accuracy:
-
1%
Supply Ability
- Supply Ability
- 2000 Piece/Pieces per Month Oil Tan Delta Tester
Packaging & delivery
- Packaging Details
Oil Tan Delta Tester:
1.HS Code: 9030332000.
2.Wooden box with foam inside;
3.No fumigation,not influence the delivery;
4.Standard of CE ISO IEC;
- Port
Tianjin/Dalian/Guangzhou/Shanghai
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 50 51 – 200 201 – 400 >400 Lead time (days) 7 15 25 To be negotiated
Discount Benefits
Products Description
The Oil Tan Delta Tester (OTD) is a laboratory instrument, which measures the Tan Delta, Resistivity and Relative Permittivity of insulating liquids. These tests give a wider picture of the overall quality of the insulating oil, and will indicate if there is any contamination.
WESHINE has developed features of the OTD to ensure that productivity levels within laboratories are maximised.

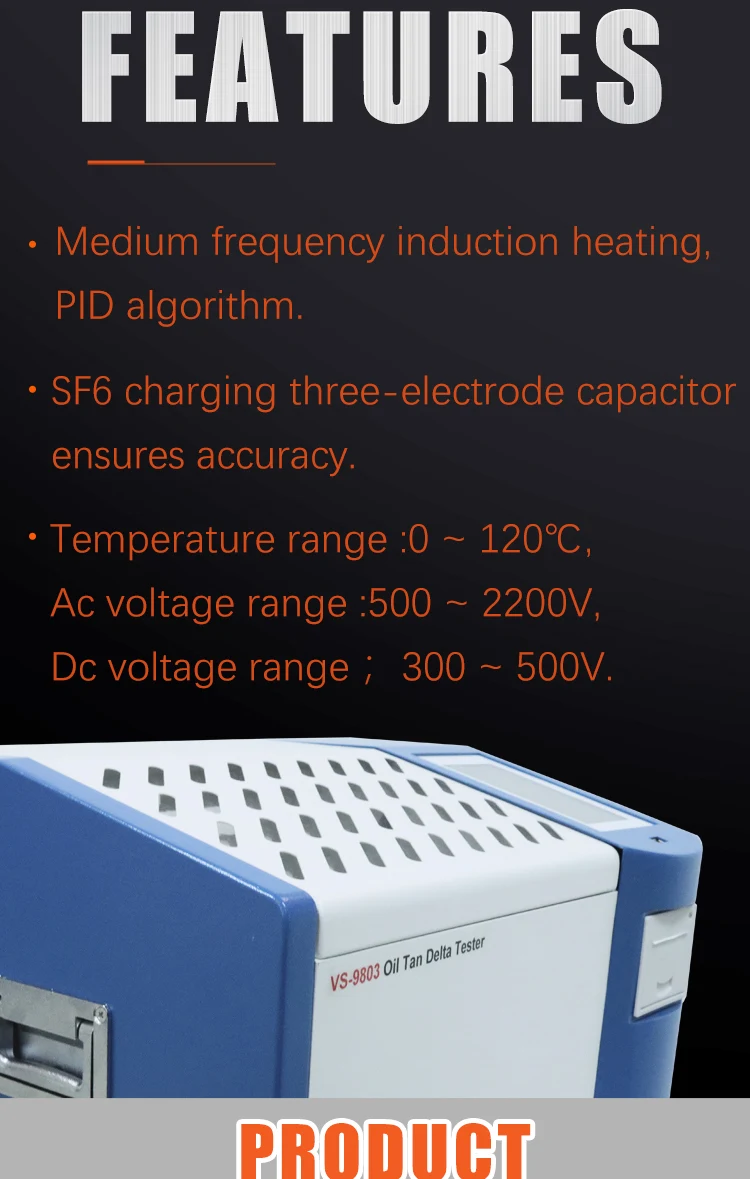

The microprocessor controlled inductive heater means that there is uniformity of temperature throughout the cell, in compliance
with IEC 60247, and for cooling a fan effectively speeds up the cell cooling time. The instrument has a temperature measuring
range of 0 to 120 ºC, with an accuracy of ± 1 ºC. It can be set to preheat before testing takes place.
with IEC 60247, and for cooling a fan effectively speeds up the cell cooling time. The instrument has a temperature measuring
range of 0 to 120 ºC, with an accuracy of ± 1 ºC. It can be set to preheat before testing takes place.
For further information on Weshine‘s Service Solutions, contact our 24/7 online sales representative on alibaba.com or you may
|
PRODUCT INFORMATION
|
||||||
|
Product Name
|
OIL TAN DELTA TESTER
|
|
||||
|
Range of DC Voltage
|
0 ~ 500 V
|
Range of AC Voltage
|
200 ~ 2200 V
|
|||
|
Functions
|
Measures the Tan Delta, Resistivity and Relative Permittivity of insulating liquids
|
|
||||
|
Test Range
|
Test Range of Tan Delta: 0.00001 ~ 100
|
|||||
|
Test Range
|
Test Range of Volume Resistivity: 2.5 MΩm~20 TΩm
|
|||||
|
Test Range of Relative Permittivity: 1.000 ~ 30.000
|
||||||
|
Typical Application
|
Fully automated standard and user defined tests – Supports all international standards
|
|||||
|
Standards
|
IEC 60247:2004; IEC 61620:1998…
|
Certificates
|
CE; EMC; LVD; ISO; IEC;
|
|||
|
Dimensions
|
660mm*370mm*330mm
|
Model Number
|
VS-9803
|
|||
