Description

FURNACE 136CI SSP 240V(1560 w)
FURNACE 136CI SSP 240V

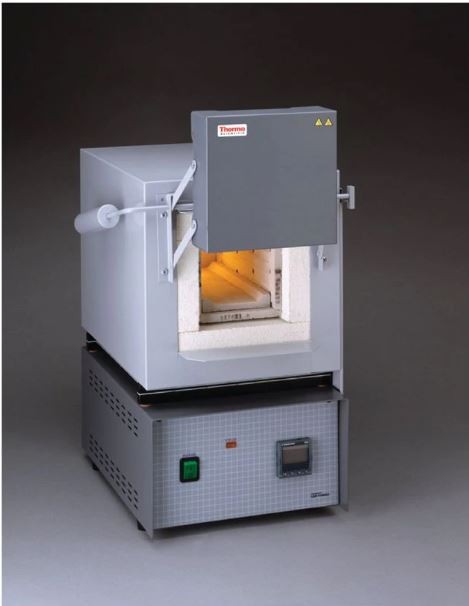

Perform ultra-high temperature applications with the Thermo Scientific™ Thermolyne™ Industrial Benchtop Muffle Furnace, which reaches a maximum temperature of 1200°C. Includes multiple safety features and choice of two temperature-control options; additionally, heavy-duty firebrick insulation surrounds the opening for added durability.
Key Features:

Adjustable Alarm or Overtemperature Protection (OTP) setting can be used to protect the furnace or loaded chamber from excessive heat
Thermocouple break protection cuts power to the heating elements, preventing a thermocouple failure runaway condition
Counter-weighted door swings upward, directing heat away from operator
Four individual embedded elements in special refractory cement permit excellent heat distribution in the chamber
Door safety switch protects operator by removing power to the heating elements upon opening the door
Rear-mounted 0.38in. (0.95cm) diameter port for monitoring chamber temperatures with independent measuring devices
LED display simultaneously shows both setpoint and actual furnace temperatures in either °C or °F (programmable models only)

Single-setpoint Controller (B1):

Single ramp to setpoint and a dwell
Single display shows actual temperature or setpoint

8-step Programmable Controller (C1):

Ramps to vary heat-up rate and dwell cycles to hold temperature at set levels from 0.1 to 999.9 minutes
“Holdback” feature “holds” program until furnace temperature heats up or cools down to preprogrammed parameters—program will never outrun furnace performance

Includes:
Oven, Platinel™ II thermocouple and a ceramic hearth plate to protect the bottom heating element.
Specifications

Amperage
6.5 A

Capacity (English)
0.08 cu.ft.

Certifications/Compliance
All units cUL, UL listed; -33 units also CE marked.

Depth (English) Interior
9 in.

Depth (Metric) Interior
22.8 cm

Dimensions (D x W x H) Interior
9 x 4 x 3.75 in. (22.8 x 10.1 x 9.5 cm)

Dimensions (L x W x H) Exterior
18 x 11 x 16.5 in. (45.7 x 27.9 x 41.9 cm)

Electrical Requirements
240 V 50/60 Hz

Frequency
50/60 Hz

Height (English)
16.5 in.

Height (English) Interior
3.75 in.

Height (Metric)
41.9 cm

Height (Metric) Interior
9.5 cm

Length (English)
18 in.

Length (Metric)
45.7 cm

Power Consumption
1560 w

Shipping Weight (English)
52 lb.

Shipping Weight (Metric)
23.5 kg

Temperature Control
Digital single setpoint

Voltage
240 V

Width (English)
4 in.

Width (Metric)
27.9

Width (Metric) Interior
10.1 cm

Capacity (Metric)
2.2 L

Temperature (Metric)
100°C to 1200°C

Type
Single Setpoint
