Description

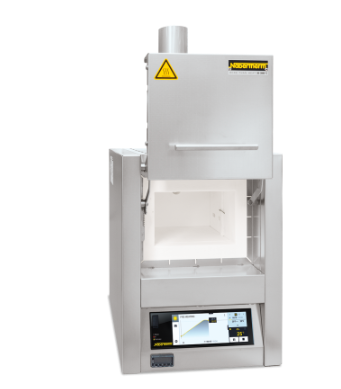

FURNACE CERAMIC MUFFLE LT9/11/SKM/B510, TMAX.1100
 lift d lift door, protective gas connection, hole for thermocouple in furnace door

 The muffle furnace L 9/11/SKM is particularly recommended for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature.

Standard Equipment

Tmax 1100 °C
Muffle heated from four sides
Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
Adjustable working air inlet in the door
Exhaust air outlet in rear wall of furnace
Controller B510 (5 programs with each 4 segments)
Solid state relays provide for lownoise operation
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional Equipment

Chimney, chimney with fan or catalytic converter
Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
Manual or automation gas supply system
Port for thermocouple in the rear wall or in the furnace door
Process control and documentation via VCD software package for monitoring, documentation and control

 Specification

Modell
Tmax
Inner dimensions in mm
Volume
Outer dimensions2 in mm
Connected
Electrical
Weight
Heating time

in °C1
w
d
h
in l
W
D
H
load in kW
connection*
in kg
in min4

L 9/11/SKM
1100
230
240
170
9
490
505
580
3.4
1-phase
50
75

LT 9/11/SKM
1100
230
240
170
9
490
505
580+3203
3.4
1-phase
50
75

1Recommended working temperature for processes with longer dwell times is 1000 °C*Please see page 75 for more information about supply voltage

2External dimensions vary when furnace is equipped with additional equipment. Dimensions on request.

3Including opened lift door

4Heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE)
