Description

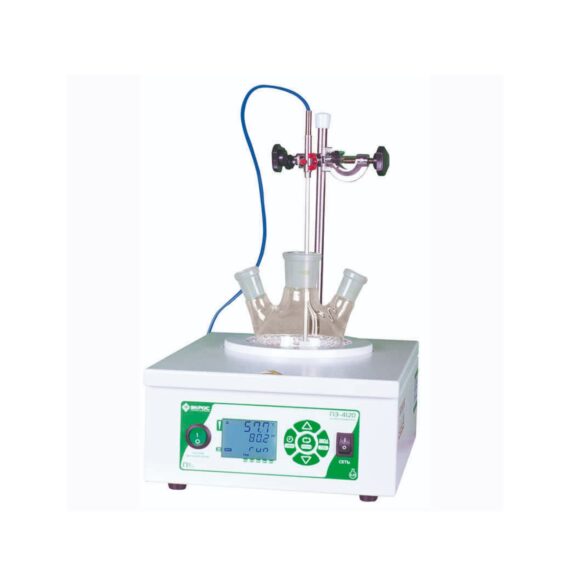

Purpose: the heating mantle is intended for heating liquids in round-bottomed flasks made of heat-resistant glass with the volume of 2000 ml within the temperature range from the ambient one to 400°С
Advantages:

– two-zone heating with the possibility of switching off the heating of the top zone

– heating element is made of safe fiberglass with nichrome wire which excludes permanent deformation and provides firm adherence to vessel walls to avoid heat losses and improve energy performance of the device

– indication of parameters on the liquid crystal display

– electronic (PID) temperature controller

– automatic and heating tuning of the heating intensity

– timer with visual and audible signaling of finishing of the heating

– locking of the control to provide the protection against accidental change of the operation mode

– possibility of connection of a remote sensor (option)

– determination and indication of the possible faults and malfunctions

– metal housing of the device is covered with powder paint KARUMEL which provides resistance to adhesion, scratching and corrosion
Remarks:

– the maximum heating temperature is reached when both heating zones are switched on

– due to presence of heat losses, the liquid temperature in the vessel can never reach the maximum temperature of the heating element; therefore, the settable temperature is limited by a value of 400°С
Technical specifications:

– Housing material: steel covered with powder paint resistant to chemical action

– Heating element: fabric fiberglass with nichrome wire

– Maximum heater temperature, °С – 450

– Flask volume, ml – 2000

– Weight, kg – 3.8

– Power supply voltage (50/60Hz), V – 220-230

– Power consumption, W – 470
