Overview
Essential details
- Warranty:
-
1 Year
- Customized support:
-
OEM
- Place of Origin:
-
Shandong, China
- Brand Name:
-
Xinbaodi
- Model Number:
-
XBD619d
- Power:
-
Electronic
- Color:
-
Green, Blue, Yellow etc
- Item Weight:
-
1200kg
- Material:
-
Stainless Steel
- Voltage:
-
220v/380v
- Is Customized:
-
Yes
- External testing:
-
Done
- Size:
-
2300*1160*1750mm
- Motor Powers:
-
7.5kw,11kw,15kw,22kw,30kw,etc
- Certification:
-
CE & ISO
- Pump Type:
-
Mechanical
Supply Ability
- Supply Ability
- 1000 Set/Sets per Year diesel pump test bench
Packaging & delivery
- Packaging Details
Fumigation-free wooden case
- Port
Qingdao
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 5 >5 Lead time (days) 20 To be negotiated
Products Description

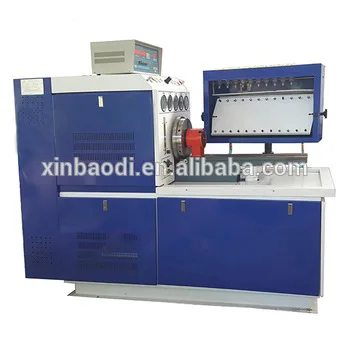

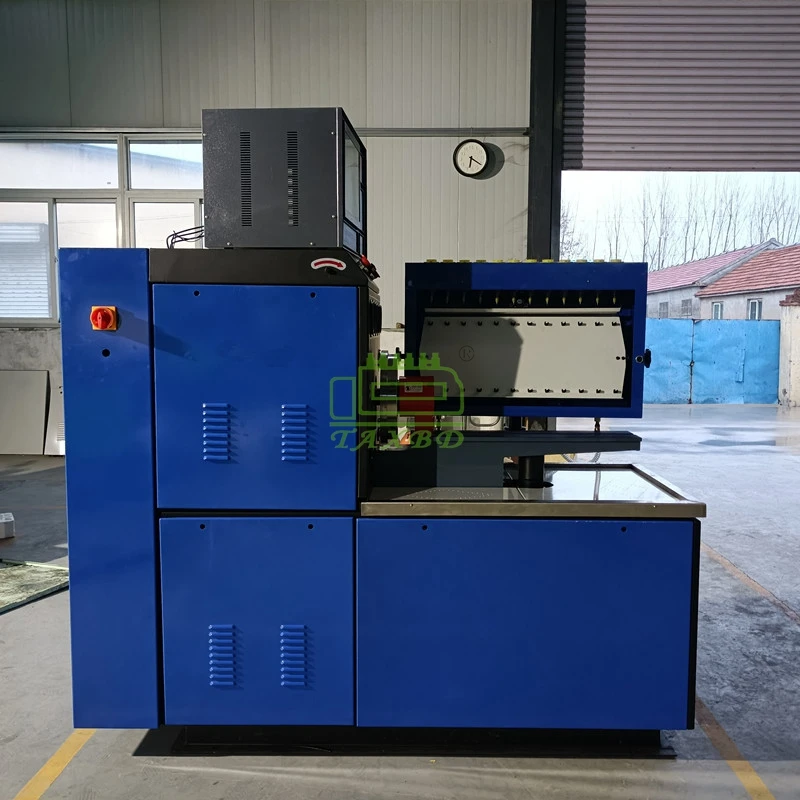

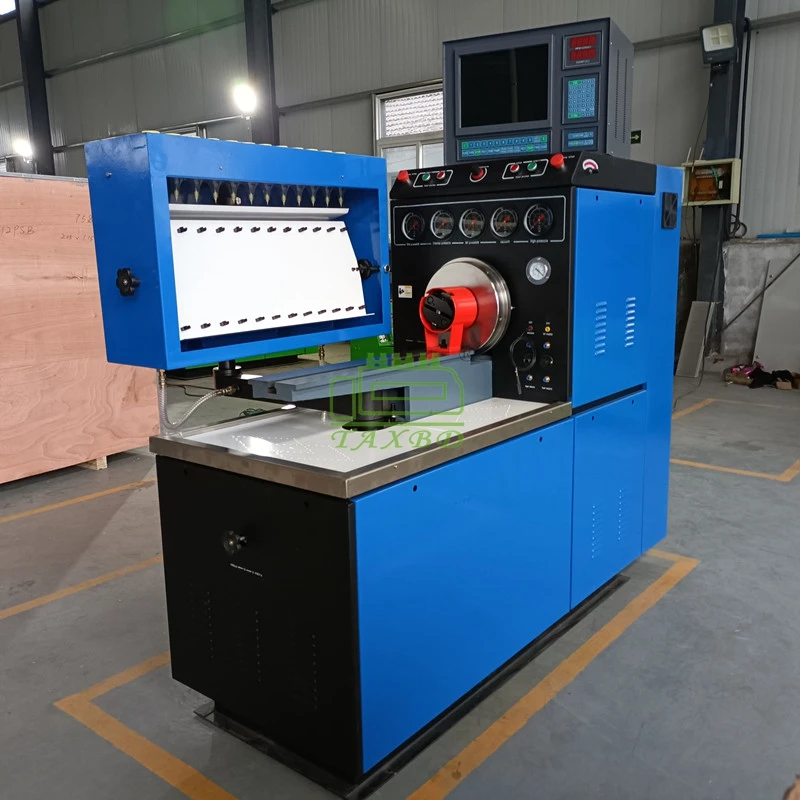

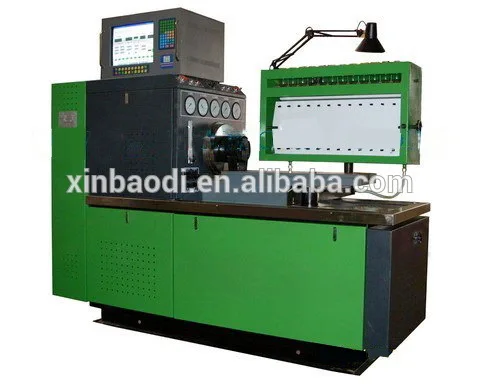

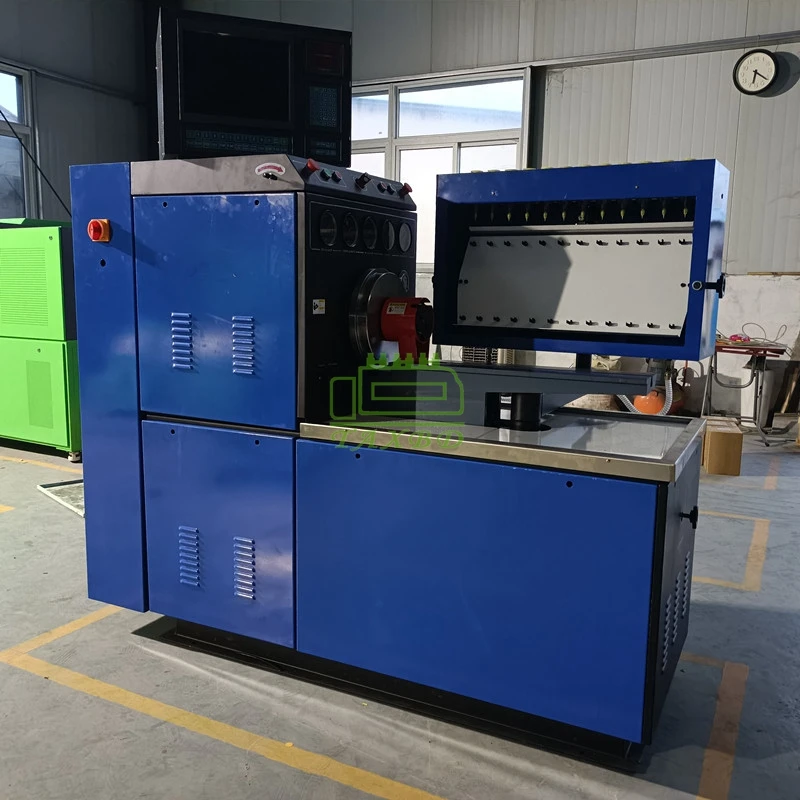

High quality calibration testing equipment stand XBD619D 12 cylinders diesel traditional fuel injection pump test bench for sale
The main features of test bench:

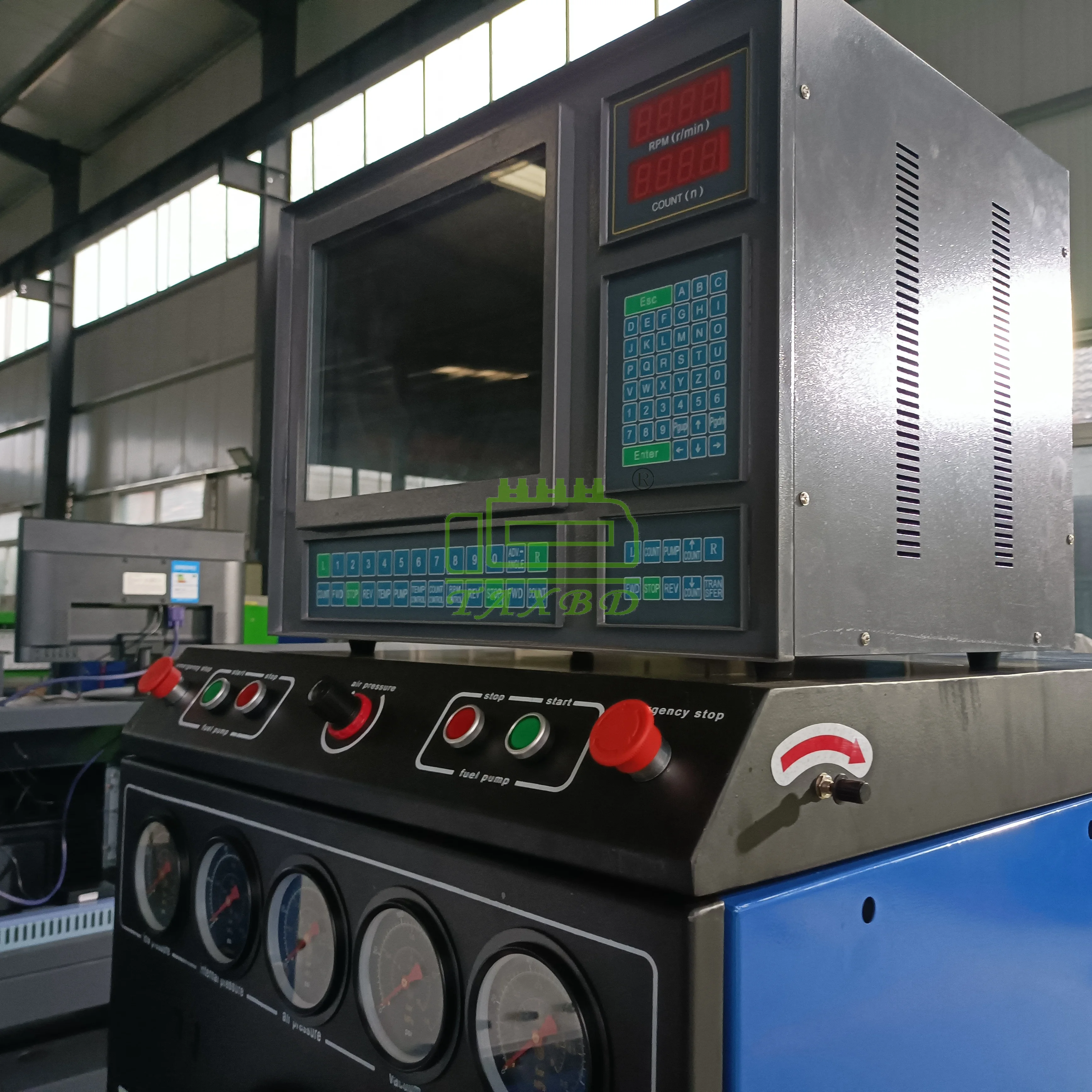

1. The test bench control and display system use industrial control computer and monolithic computer MCS51 double system ,complete independent control, open the window under the operation panel, you can start the digital display function who is the standby control system
2. Frequency control of motor speed. The speed range is 0~ 4000 rpm.

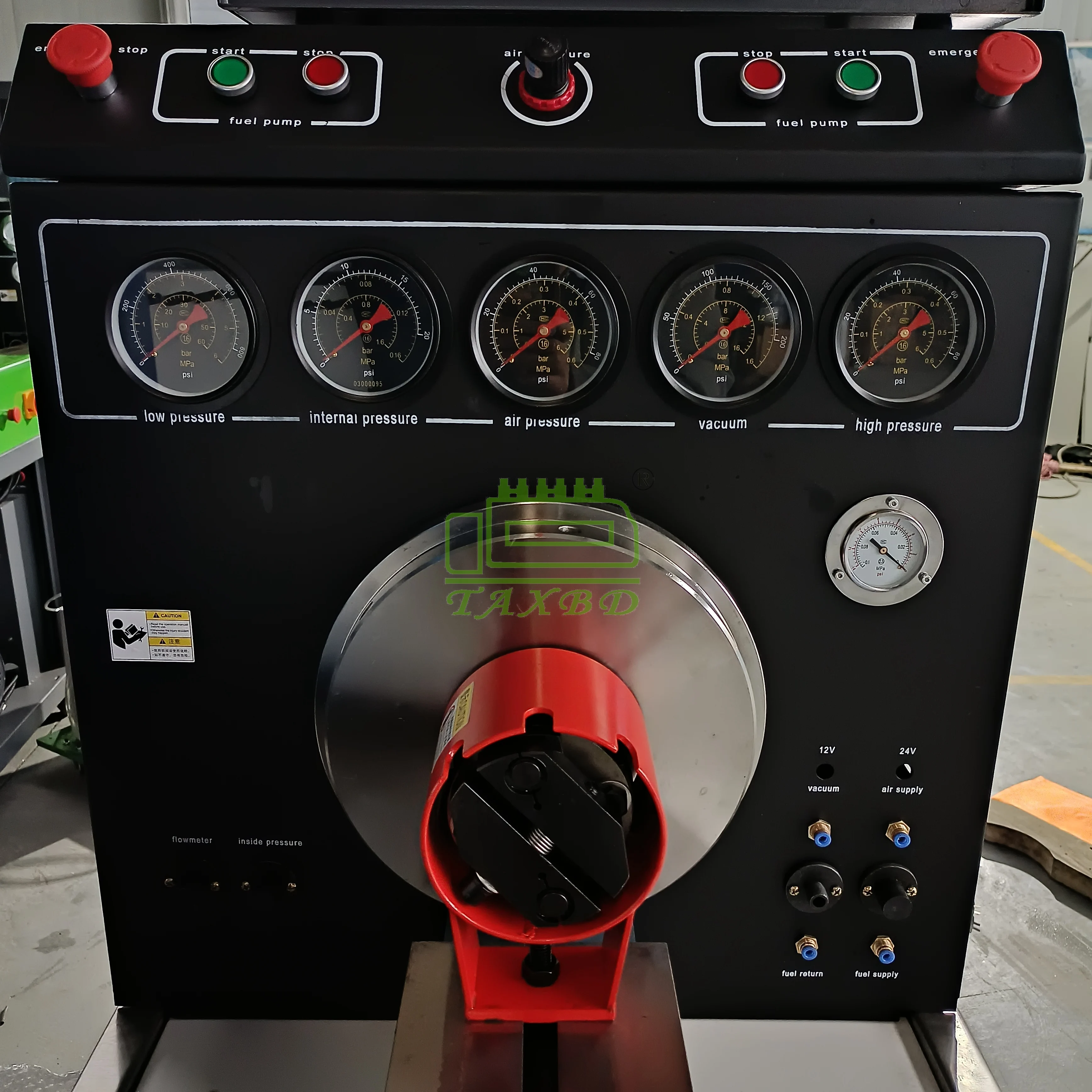

3. Screen display the count, rotation speed, air pressure, fuel temperature, toothed bar stroke(special order) and advance angle(special order)
4. The manual and automatic adjusting speed, rotate speed multi–gear pre-set
5. 0-0.25Mpa air supply output , built-in air pump
6. DC12V and DC24V power output
7. The host machine is channel steel structure; the complete structure is compact and steady
8. the shell use static painting, it is beautiful
9. The oil sump tank can rotate right or left, and also adjust up or down
10. The test bench has urgent brake switch
11. The test bench has protection function when under voltage, over pressure, over heating and over loading
12. The test bench has very low noise
13. The test bench has high mechanical efficiency and save energy
1. The test bench control and display system use industrial control computer and monolithic computer MCS51 double system ,complete independent control, open the window under the operation panel, you can start the digital display function who is the standby control system
2. Frequency control of motor speed. The speed range is 0~ 4000 rpm.
3. Screen display the count, rotation speed, air pressure, fuel temperature, toothed bar stroke(special order) and advance angle(special order)
4. The manual and automatic adjusting speed, rotate speed multi–gear pre-set
5. 0-0.25Mpa air supply output , built-in air pump
6. DC12V and DC24V power output
7. The host machine is channel steel structure; the complete structure is compact and steady
8. the shell use static painting, it is beautiful
9. The oil sump tank can rotate right or left, and also adjust up or down
10. The test bench has urgent brake switch
11. The test bench has protection function when under voltage, over pressure, over heating and over loading
12. The test bench has very low noise
13. The test bench has high mechanical efficiency and save energy
The usage of the Diesel fuel Injection Pump test bench
According to the different pump, select and use proper attachment, and carry out the following item:
1. Test different cylinder oil supply condition quantity and oil supply evenness under different rotation speed
2. Test oil supply starting point and interval angle
3. Governor working performance checking and regulation
4. The pressure compensation performance test and checking
5. The distribution pump working performance test and regulations
6. The cold starting device and solenoid valve performance checking
7. The distribution pump oil return test under different rotation speed (special order)
8. The distribution pump inner pressure test under different rotation speed
9. The injection pump seal performance test
10. Check the oil transfer pump self priming performance
11. Save, amend oil injection pump debugging date and form database
12. The commons diesel injection pump debugging data quick inquiry
13. The oil pump speed governing curve create automatically and CRT end display
14. The built-in high reliability horizontal type inflation pump
1. Test different cylinder oil supply condition quantity and oil supply evenness under different rotation speed
2. Test oil supply starting point and interval angle
3. Governor working performance checking and regulation
4. The pressure compensation performance test and checking
5. The distribution pump working performance test and regulations
6. The cold starting device and solenoid valve performance checking
7. The distribution pump oil return test under different rotation speed (special order)
8. The distribution pump inner pressure test under different rotation speed
9. The injection pump seal performance test
10. Check the oil transfer pump self priming performance
11. Save, amend oil injection pump debugging date and form database
12. The commons diesel injection pump debugging data quick inquiry
13. The oil pump speed governing curve create automatically and CRT end display
14. The built-in high reliability horizontal type inflation pump
Specification
|
The principle axis rotation speed
|
0-4000r/min. the two directions are optional
|
|
test oil injection pump cylinders
|
12
|
|
The principle axis rotation speed fluctuate
|
±1r/min
|
|
The host machine power
|
5.5KW 、7.5KW、11KW、15KW、18.5KW、22KW
|
|
The oil supply drive motor power
|
1.1KW
|
|
Principle axis center to center spacing working bench height
|
125mm
|
|
The oil metering counting
|
0－1000 times , one gear per 50 times
|
|
Rotation speed, counting, toothed bar stroke, in advance angle display
|
four digital display
|
|
The pressure, oil temperature display
|
three digital display
|
|
The oil temperature automatic control
|
40℃±2℃
|
|
Gas source pressure
|
0-0.25Mpa
|
|
The oil tank volume
|
≥ 40L
|
|
The oil pump oil supply
|
≥ 10L/Min
|
|
The oil filter precision
|
5μ
|
|
The glass measuring cylinder volume
|
Big measuring cylinder: 150ml
Small measuring cylinder: 45ml |
Packing & Delivery

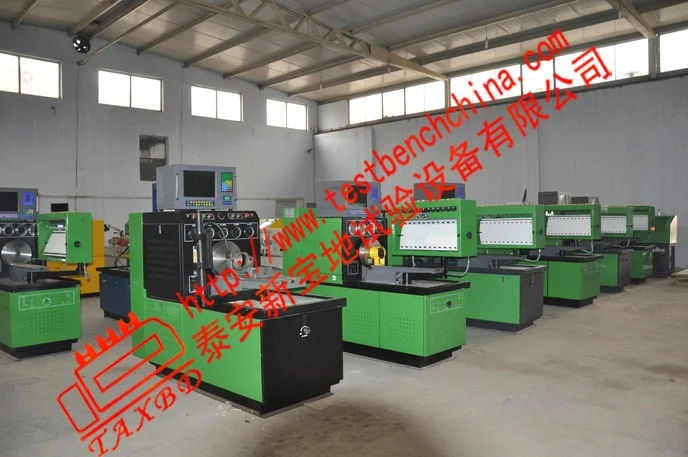

Company Profile
