High Quality Temperature Humidity Control Test Equipment
APPLICATIONS
1. Programmable Constant Reliable Thermal Cycling Test Machine to simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
|
Name
|

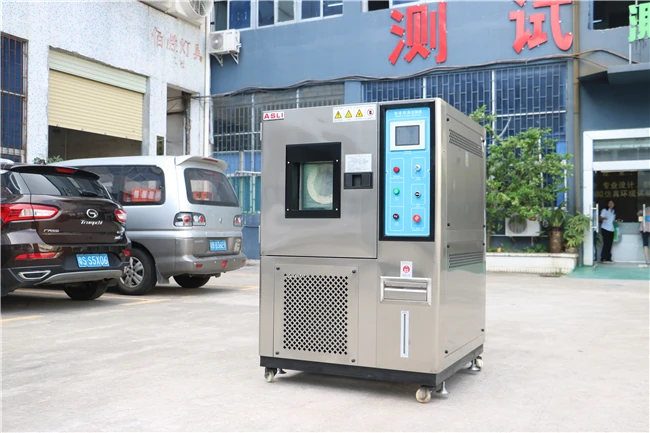

Temperature Humidity Climate Testing Chamber
|
||||
|
Model
|
TH-80(A~F)
|
TH-150(A~F)
|
TH-225(A~F)
|
||
|

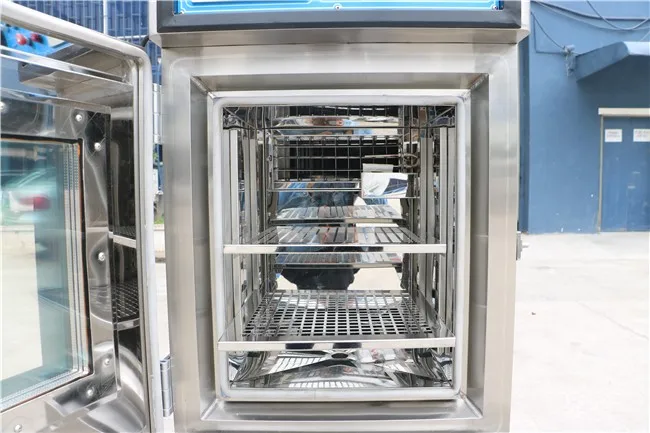

Internal Dimension WxHxD (mm)
|
400x500x400
|
500x600x500
|
600x750x500
|
||
|
External Dimension WxHxD (mm)
|
950x1650x950
|
1050x1750x1050
|
1200x1900x1150
|
||
|
Temperature Range
|
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 150℃
|
||||
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
|
||||
|
Control Accuracy of Temperature and Humidity
|
±0.5℃; ±2.5% R.H.
|
||||
|
Temperature Rising/Falling Velocity
|
Temperature rising approx. 0.1~3.0℃/min ;
temperature falling approx. 0.1~1.0℃/min;
( Falling Min.1.5℃/min is optional)
|
||||
|
Optional Accessories
|
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
|
||||
|
Weight (kg)
|
150
|
180
|
250
|
||
Programmable Constant Reliable Thermal Cycling Test Machine Specifications

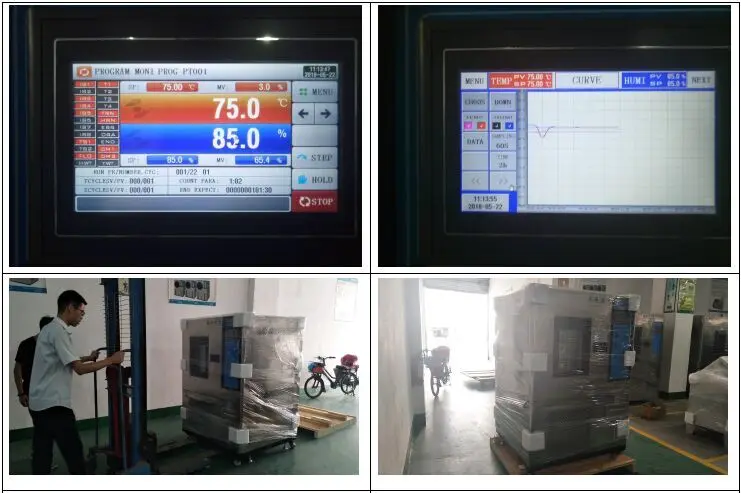

1.Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
2.Fixed condition or programmable condition can be set.
3.Fixed condition setting time range: 0 – 99999 H 59 MIN .
4.Programmable mold can set 269 different program at the same time, each program can set several segment to do cycle testing
5.Each program can have max.50 segment with different temperature setting,segment running time Max.530 hr 59 min, Max.can do 13450 times cycle.
6.With power off memory device, reply message to continue with the rest of the program.
7.The control unit has slope control of temperature, and with Self calibration temperature function
8.With TIMER SIGNAL OUTPUT RELAY.
9.Temperature sensor adopt DIN PT-100Ω
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Programmable Constant Reliable Thermal Cycling Test Machine is our star products , and we had obtained the CE certification for this machine .
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
If you need more information about Programmable Constant Reliable Thermal Cycling Test Machine , please feel free to contact us.
