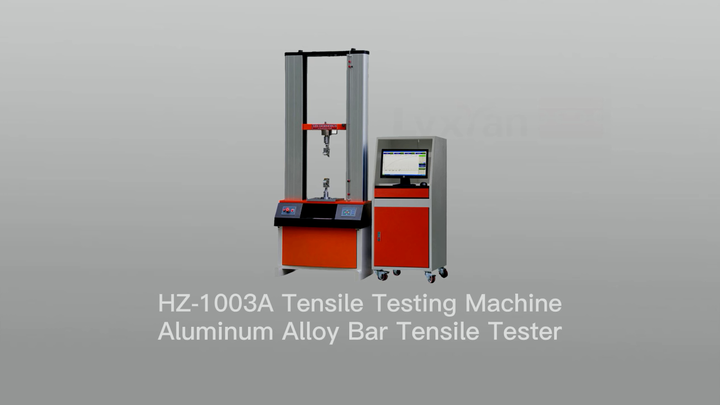

Hot Sale Tensile Strength Testing Equipment 20KN capacity Aluminum alloy metal Tensile Test Machine Allschoolabs -

Description

Overview

Essential details

Warranty:: 1 year

Customized support:: OEM, ODM

Place of Origin:: Guangdong, China

Brand Name:: lixian

Model Number:: HZ-1003A

Power:: Electronic

Product name:: Electronic Universal Tensile Testing Machine

Max load:: 5KN, 10KN, 20KN

Accurate grade:: 1% / 0.5%

Effective measuring range:: 0.2%~100%(1grade)/0.4%~100%(0.5 grade)

Measuring accuracy:: Display the value ±1%/Display the value±0.5%

Effective Tensile stroke:: 800mm

Range of testing speed:: 0.001~200mm/min ; 500mm/min (1000mm/min is option)

Accuracy of displacement measurement:: Tolerance: ±0.5%/ tolerance: ±0.2%

Safety:: Electronic-limit protection

Overload protection:: Overload 10%, automatic protection

Supply Ability

Supply Ability: 150 Set/Sets per Month

Packaging & delivery

Packaging Details

Port

Lead time:

Quantity(sets)	1 – 1	2 – 5	6 – 10	>10
Lead time (days)	7	35	45	To be negotiated

Product Description

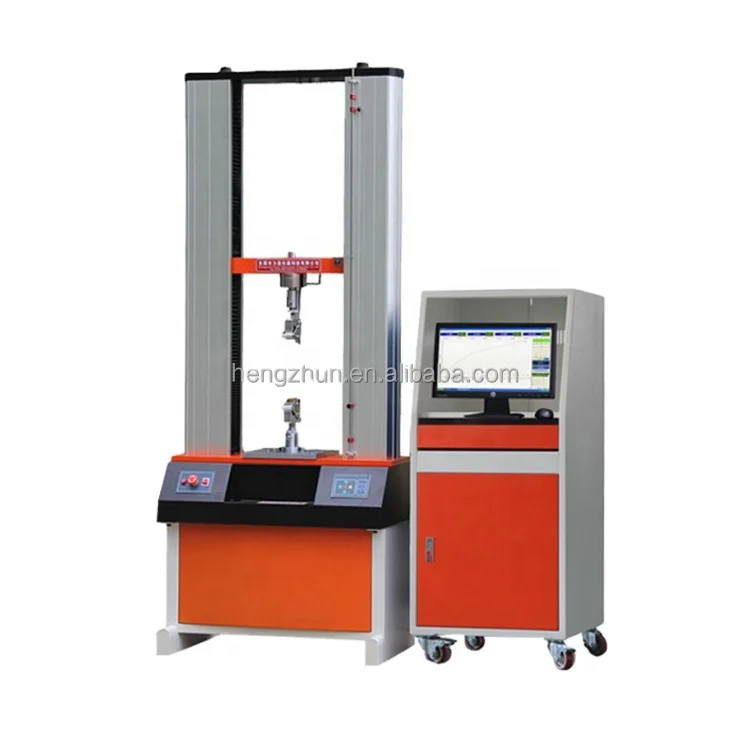

Introduction for HZ-1003

This Series machine can be applied to test lots of materials in rubber tensile elongation, compression, tear, big size peel (can 90 degrees and 180 degrees) and other mid-force mechanical test（5KN, 10KN,20KN,optional ）, such as tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.

Rubber,PVC,PE,Polymer,Plastic,Metal：

(A)Tensile test：Main test tensile strength

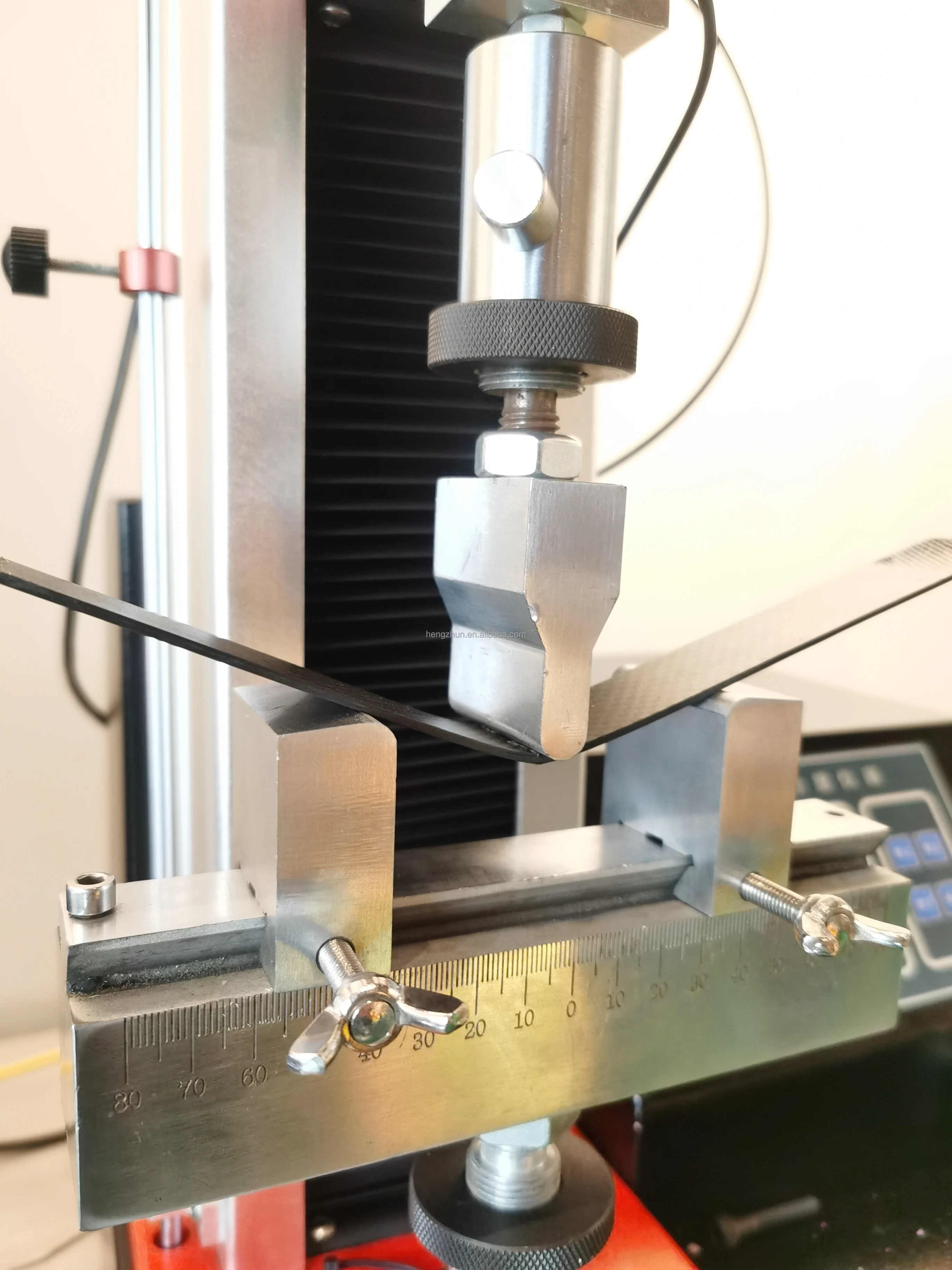

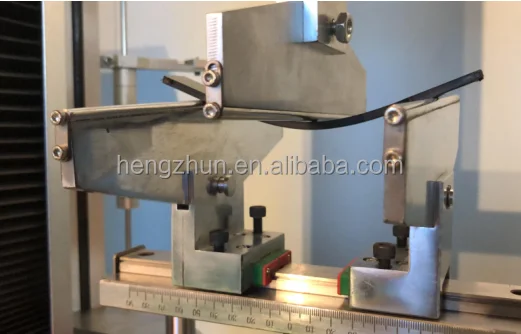

(B)3 point bending test：Test material bending resistance

(C)Compression test: Test material compression resistance

Aluminum Tensile Test

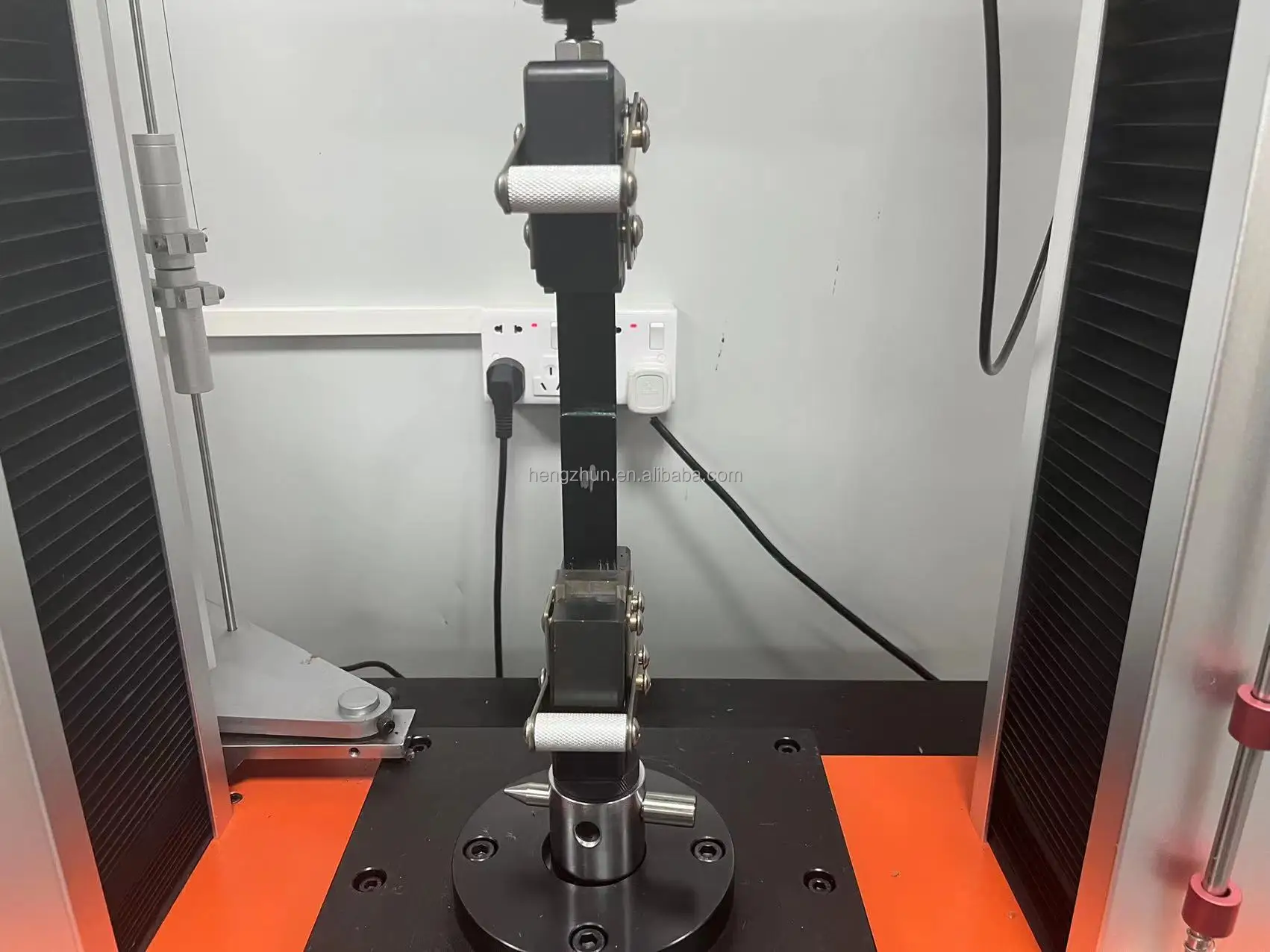

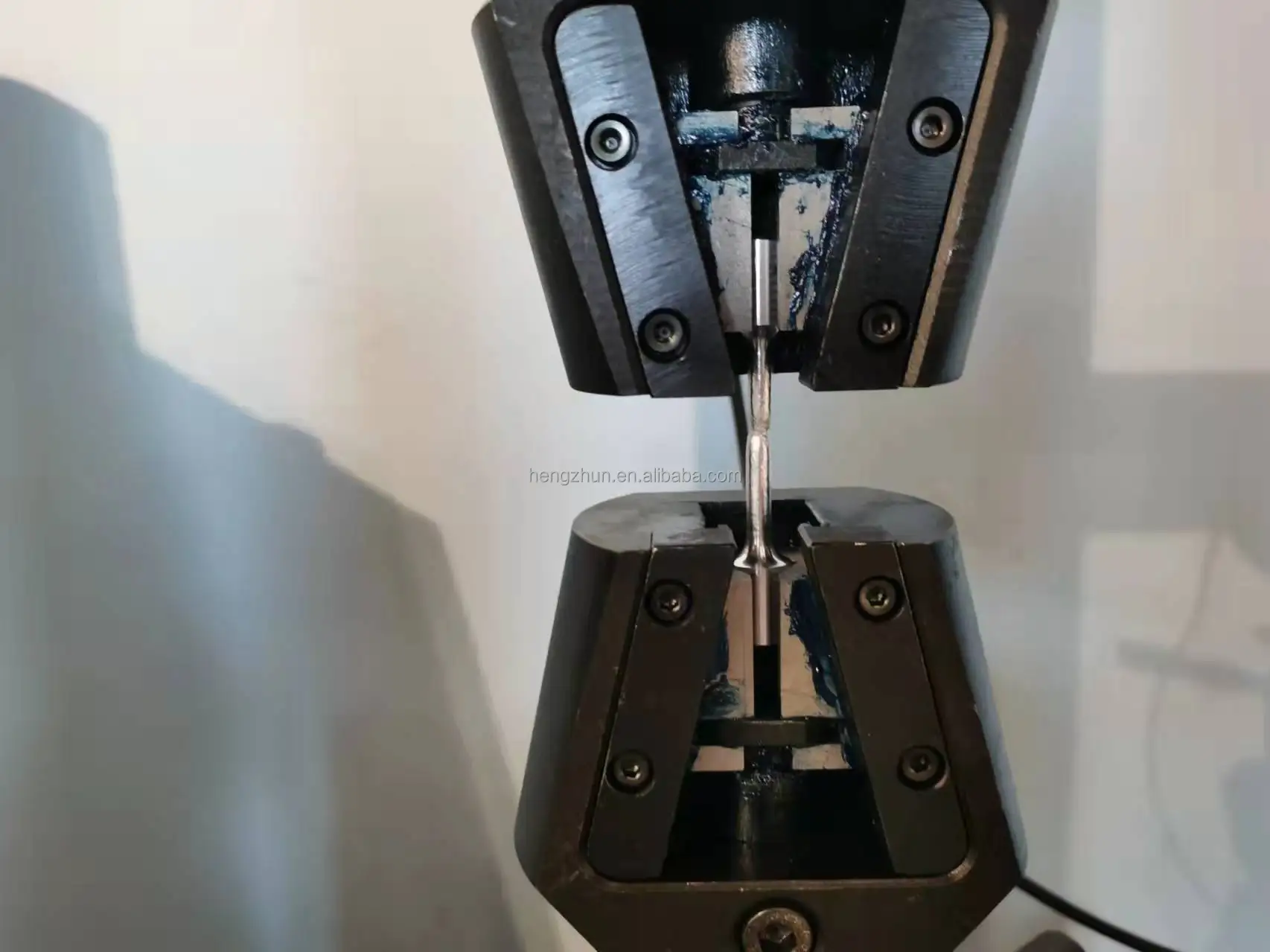

Sample in the grips

Specification

Brand Name	lixian
Model Number	HZ-1003A
Power	Electronic
Tensile Strength Testeing equipment	0.001N
Tensile Strength Testeing machine	Tensile Strength
Tensile Strength Testeing instrument	for mental
Testing method	tensile, peel;compression;shear;tensile elongation
Accuracy of displacement	≤0.5%
Displacement resolution	1/1000
Testing material	rubber,plastic;fabric;shoes;leather…
Accuray of force	≤0.5%
Resolution of force	1/200000
Certification	ROHS/CE/ISO9001

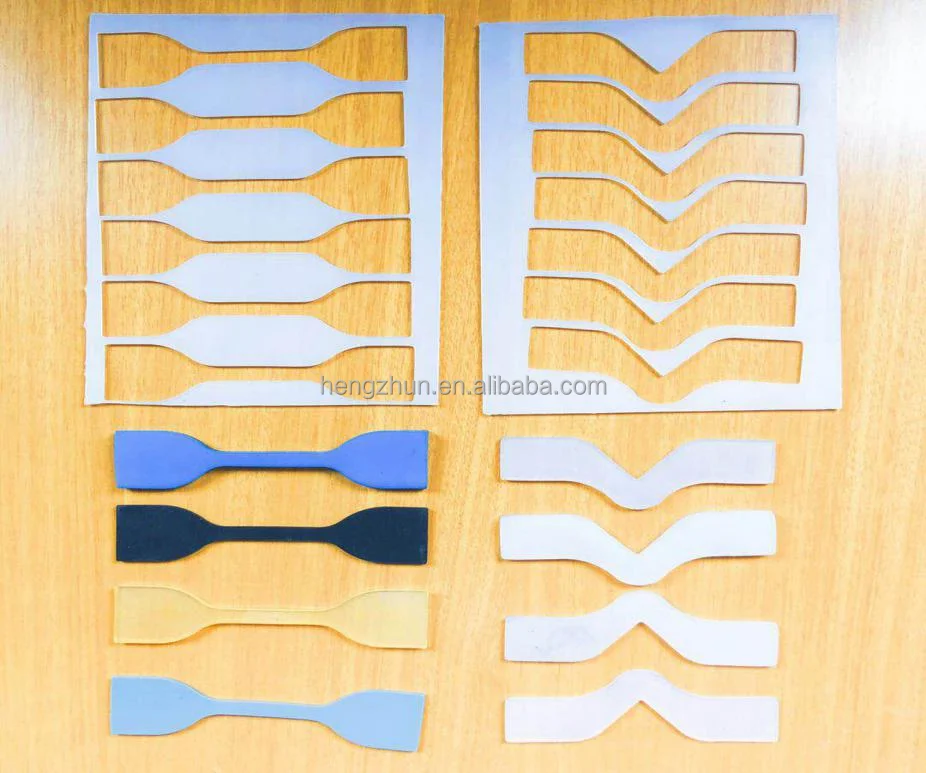

STANDARD SAMPLE

Lyxyan® Universal

ASTM D 638 Right-Angle（90°）sample

ASTM D 412, ISO 37 Dumbbell sample

ASTM D 638 Right-Angle（90°）Cutter

ASTM D 412 ISO 37 Dumbbell Cutter

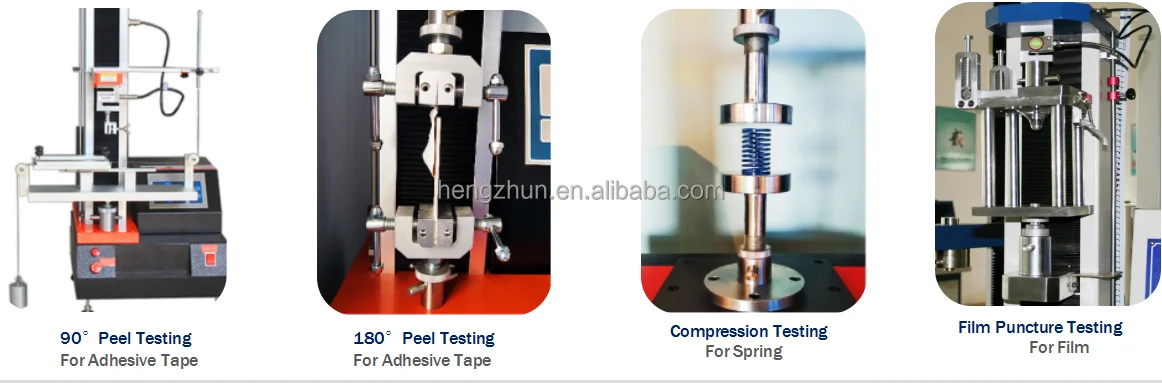

PART OF NORMAL TEST TYPE

Lyxyan® Universal

TESTING SHOWING

Testing Method,Testing Result

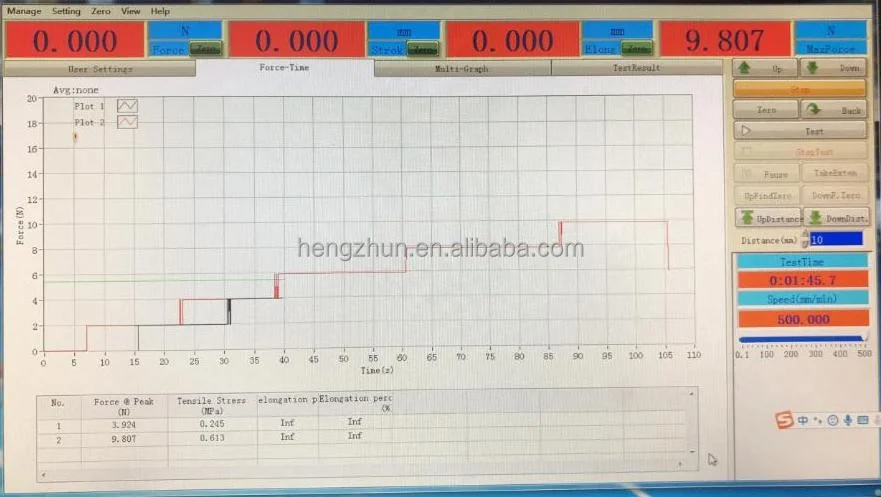

Test Method Test Curve

REALTEST® SOFTWARE

Computer Test System

Control System

Support for tensile, compression, shear, bending and other tests; Support open editing test, editorial standards and editorial procedures, Support export import testing, standards and procedures; Support custom test parameters; Adopt an open statement in the form of EXCEL, to support user-defined report format; Print the query testing results flexibility, support for printing multiple samples.

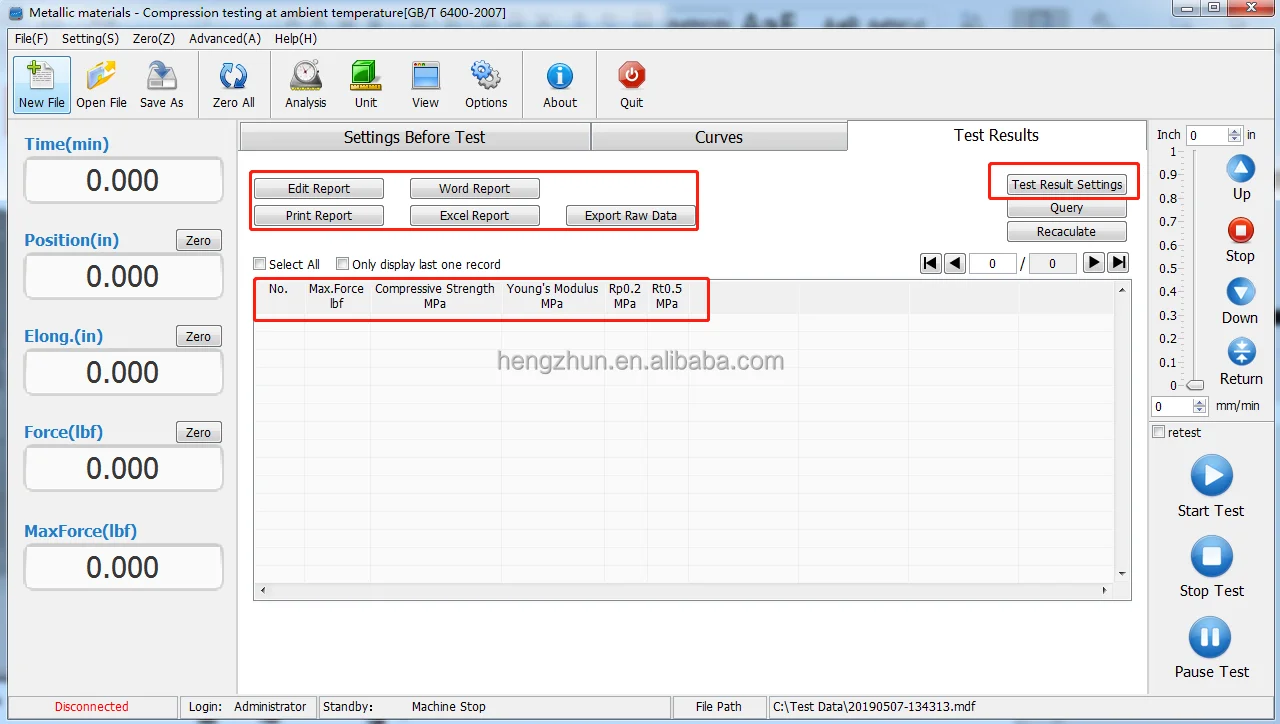

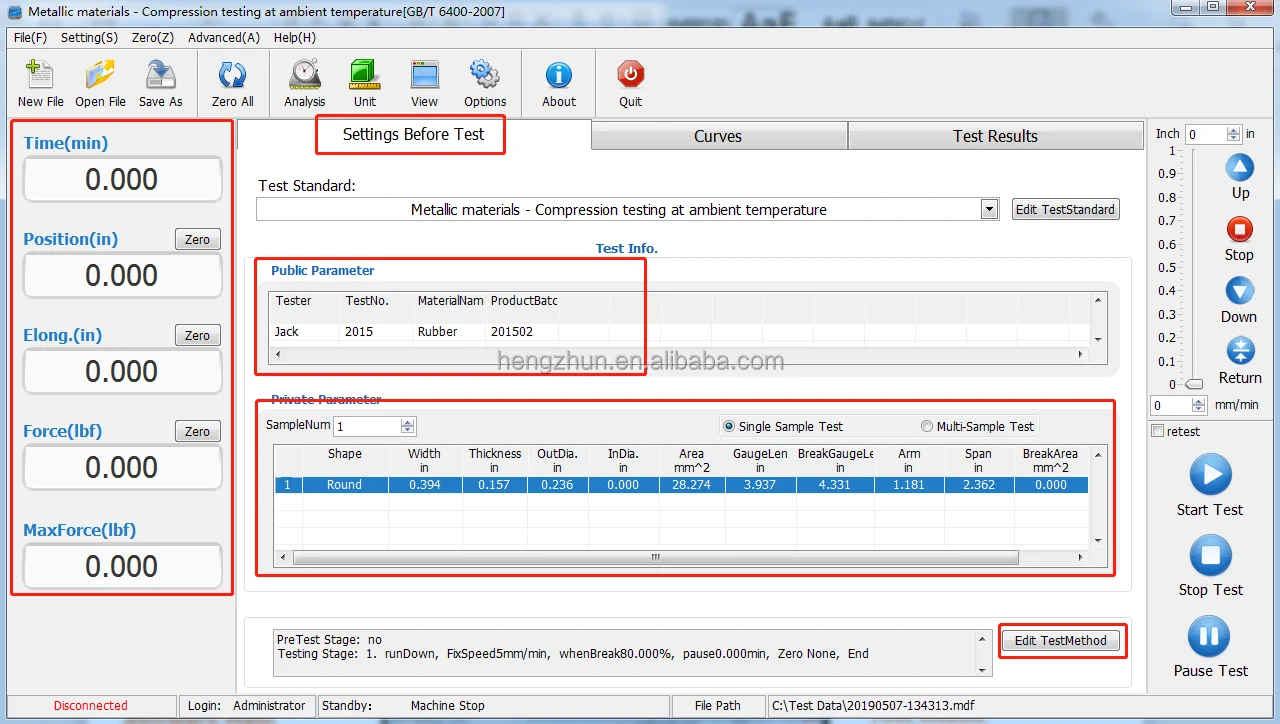

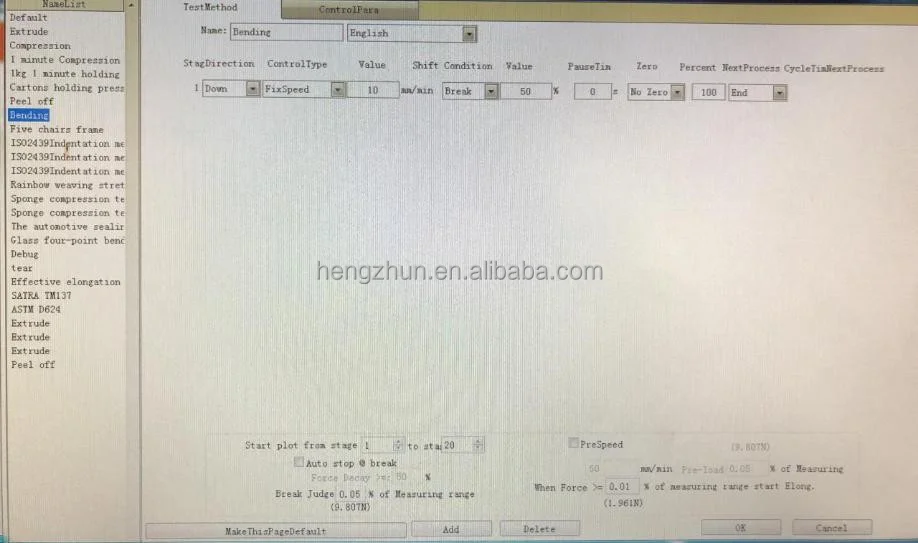

Software Main Interface

A computer software interface,display test data, setup method, sample size

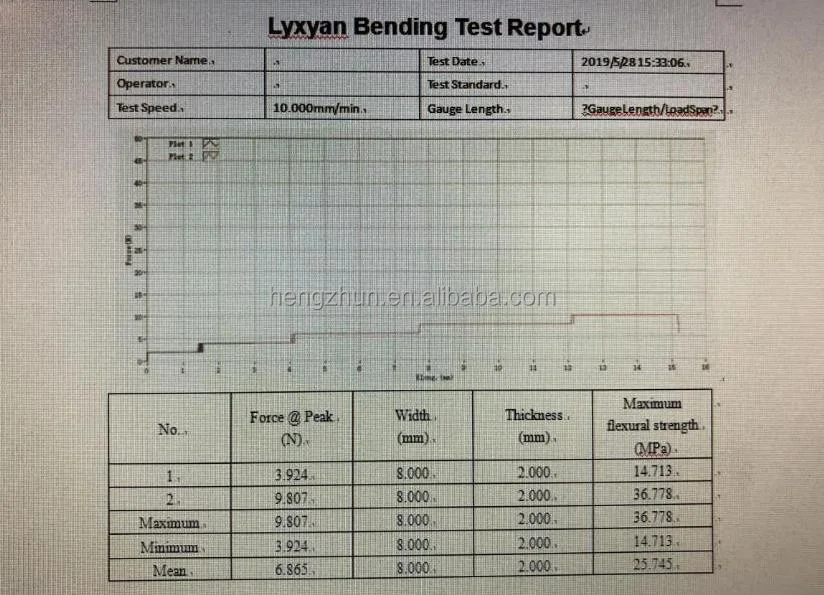

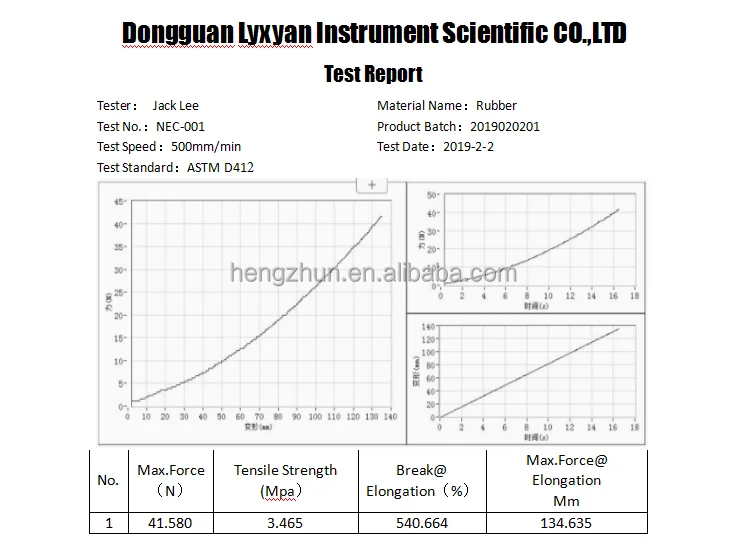

Test Result

To show test information，including test person，test standard，test curve，test max load etc，can add your company

ATTENTION TODETAIL

Confidence in your Result

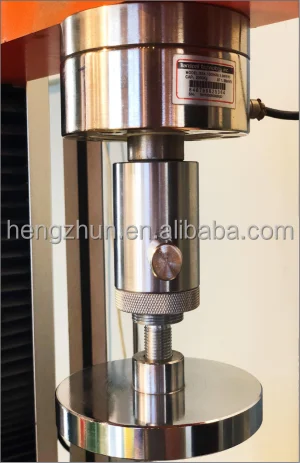

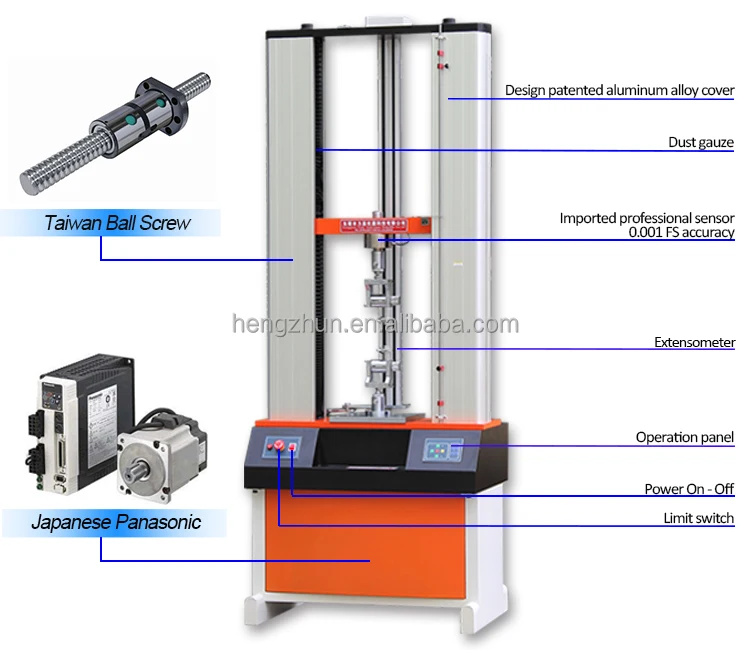

Load Cell Construction

The highest quality mechanical and electrical components ensure the maximum level of performance, producing the most accurate results..

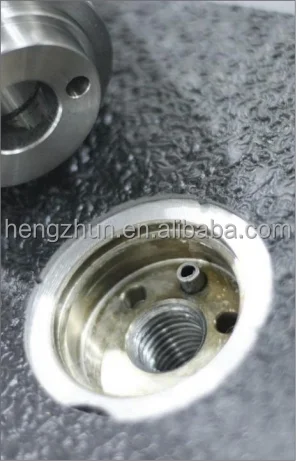

Load-string Alignment

Precision concentricity ring and alignment pins for base adapter and load cell, self-aligning grips, optional specimen centering device.

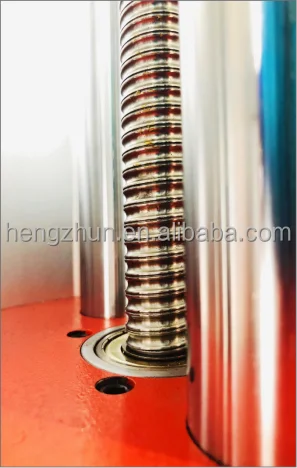

Machine Integrity

Preloaded ballscrews, precision guidance columns, symmetrical drive system, on-board diagnostics/ real-time error checking, ISO 9001 accredited.

Product Details

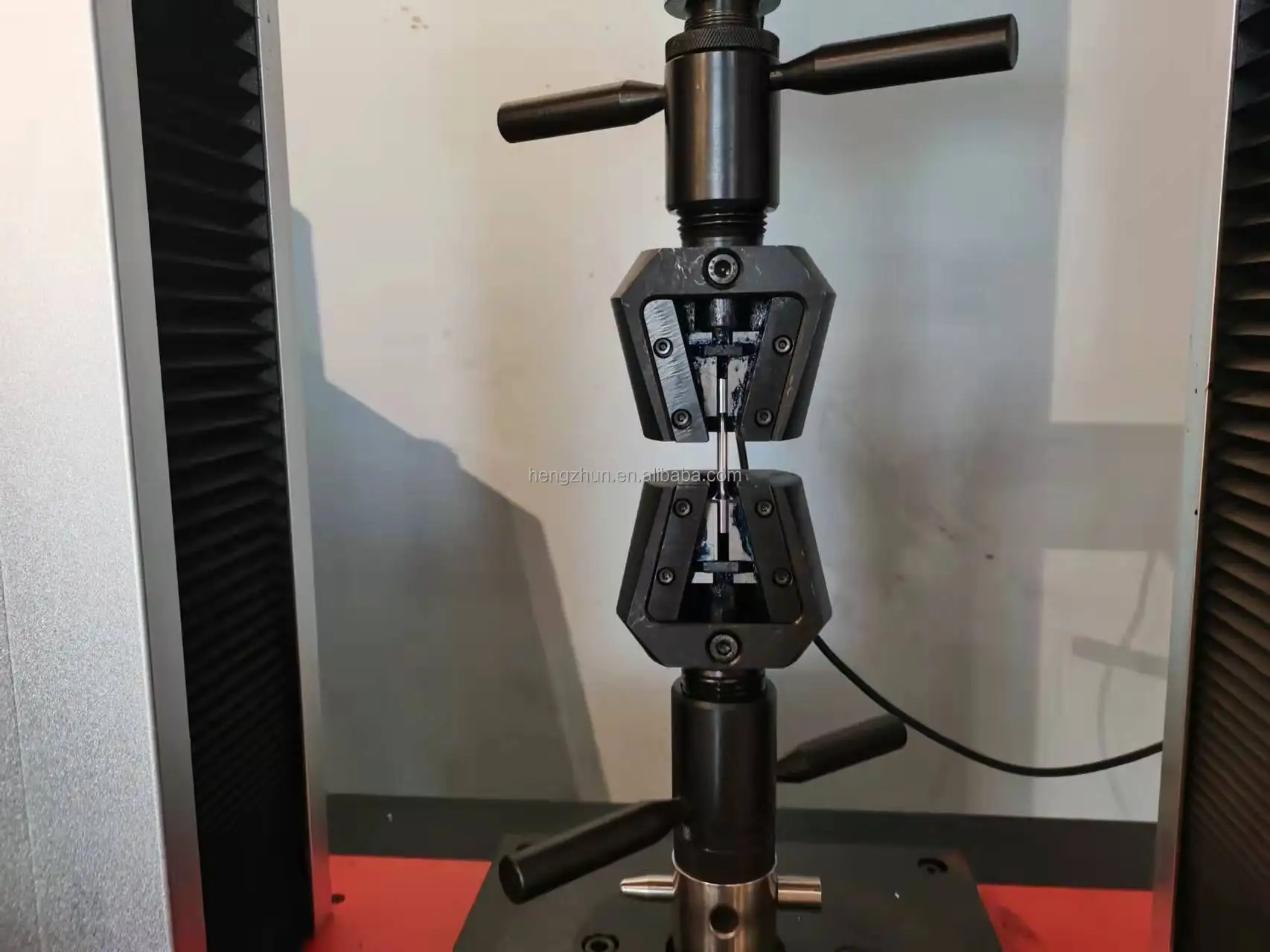

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 21 year.

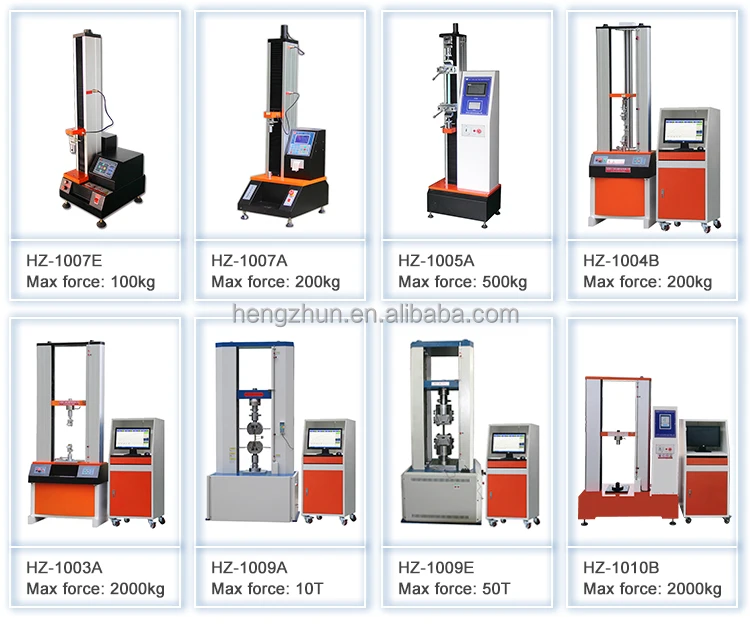

Related Products

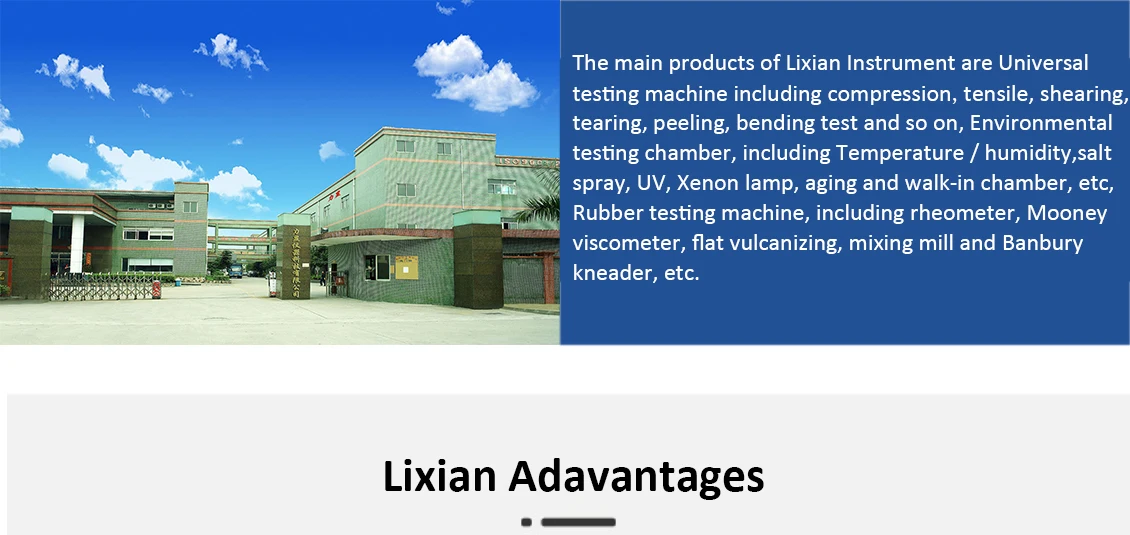

Company Profile

Dongguan Lixian Instrument Scientific Co. is one of the leading manufacturers of advanced testing instruments, founded on 2000,located in Dongguan, Guangdong province in China. Lixian Instrument located in Dongguan city, covers an area of 6000 square meters, take the lead in introducing the CNC processing center and NC lathe and other advanced equipment in 2010. Carried on several listed company lab, quality institutions, Tsinghua University, Aeronautics University’s project. We have 30000+ buyers in
domestic market, succeed in establishing the branch companies and maintenance department in Dongguan, Shanghai, Beijing, Jinjiang,Wuhan, Chongqing, Shenyang, Changsha. Our products owned CE/ISO/ASTM/ ROSH/UL certification, and have exported to more than 70countries like the USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on.

Lixian Instrument owned CE/ISO/ASTM/ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany,South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on. Lixian Instrument have a professional R & D team and a reliable quality management system, which introduced the CNC processing center and CNC lathe and other advanced equipment in
2010, successfully obtained the CMC measurement certificate and passed ISO 9001 system authentication.

Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).22 years focusing on test instruments field. Six years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 15 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely.Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be to go abroad for training and repairing.

Q6: What about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
