Overview
Essential details
- Warranty:
-
1 years
- Customized support:
-
OEM, ODM, OBM, Software reengineering, Negotiate
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
YIYU
- Model Number:
-
WDW-10
- Power:
-
Hydraulic
Supply Ability
- Supply Ability
- 500 Set/Sets per Month
Packaging & delivery
- Packaging Details
Standard export plywood packing 15mm thickness in base and 9mm thickness in side
- Port
Ningbo
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 10 >10 Lead time (days) 15 To be negotiated
Product Description

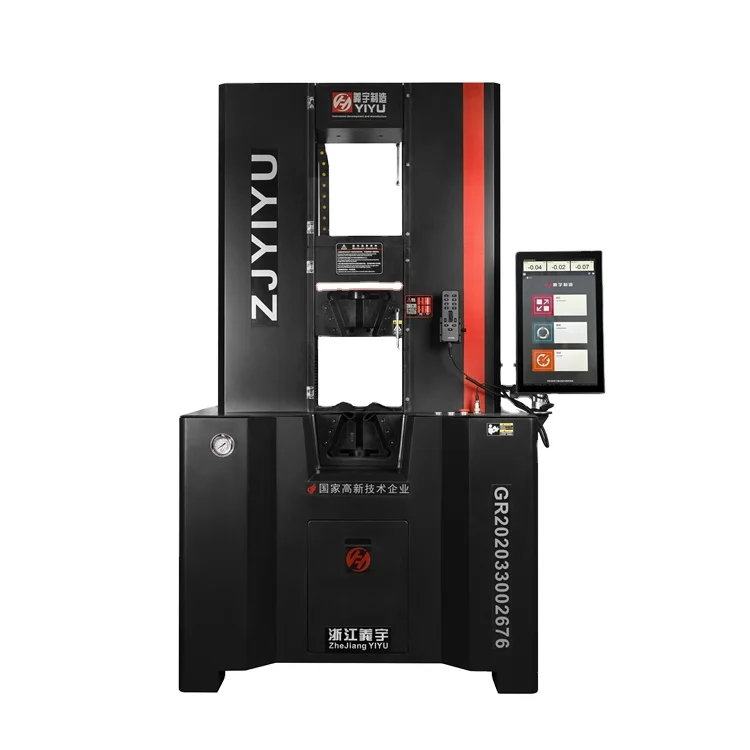

Universal material testing machine is designed and manufacturedaccording to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubberplastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
|
Model
|
WDW-50
|
WDW-50E
|
WDW-100
|
WDW-100E
|
|||
|
Max. Load(KN)
|
50
|
50
|
100
|
100
|
|||
|
Load accuracy
|
Class 1
|
Class 0.5
|
Class 1
|
Class 0.5
|
|||
|
Load range
|
2%~100%F·S
|
0.2%~100%F·S
|
2%~100%F·S
|
0.2%~100%F·S
|
|||
|
Structure
|
Four-column floor or desk model,
(upper is compression and lower is tensile) |
||||||
|
Cover
|
All aluminum alloy
|
||||||
|
Control method
|
Computer control
|
||||||
|
Load resolution
|
1/300000
|
||||||
|
Rang of deformation
|
4%-100%FS
|
||||||
|
Resolution of deformation
|
0.04um
|
||||||
|
Accuracy of displacement
|
Within±0.5%of indicating load
|
||||||
|
Resolution of displacement
|
0.01mm
|
||||||
|
Test speed(mm/min)
|
0.05-500 stepless arbitrary setting
|
||||||
|
Tensile space(mm)
|
700(can be customized)
|
||||||
|
Compression space(mm)
|
700(can be customized)
|
||||||
|
Test width(mm)
|
500(can be customized)
|
550(can be customized)
|
|||||
|
Workbench thickness(mm)
|
58
|
68
|
|||||
|
Base height(mm)
|
435
|
460
|
|||||
|
Working environment
|
Room temperature 10℃~30℃,relative humidity≤80%
|
||||||
|
Power supply
|
AC220V±10%,50Hz/60Hz(can be customized)
|
||||||
|
Grips
|
Wedge type, plate type and other grips as consumer’s demand
|
||||||
|
Dimension(mm)
|
850*480*1865
|
1000*550*2076
|
|||||
Company Profile
VR
Our Advantages
Certifications
Packaging & Shipping
FAQ
1. Production time: for common products: 7days; for special order: 15days.
2. Payment terms: T/T, L/C or other payment can be negotiated before shipment.
3. Shipment: sea shipment, air shipment, fast courier shipment according to customer advice.
4. Inspection and Calibration: technician do it strictly before shipment.
5. Installation: most of equipments be fixed well before shipment, we will guide installation step by step for other equipments.
6. Training: usually do it in our factory, for special requirement, can arrange technician go to customer site for training.
7. Warranty of machine: usually one year.
