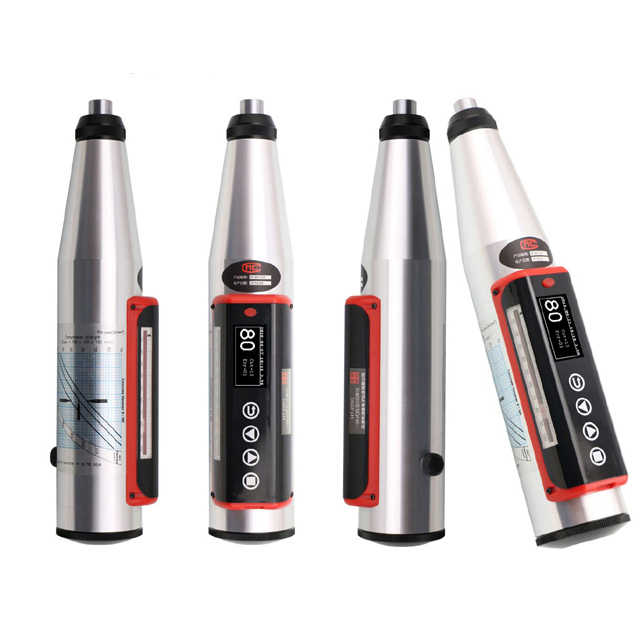

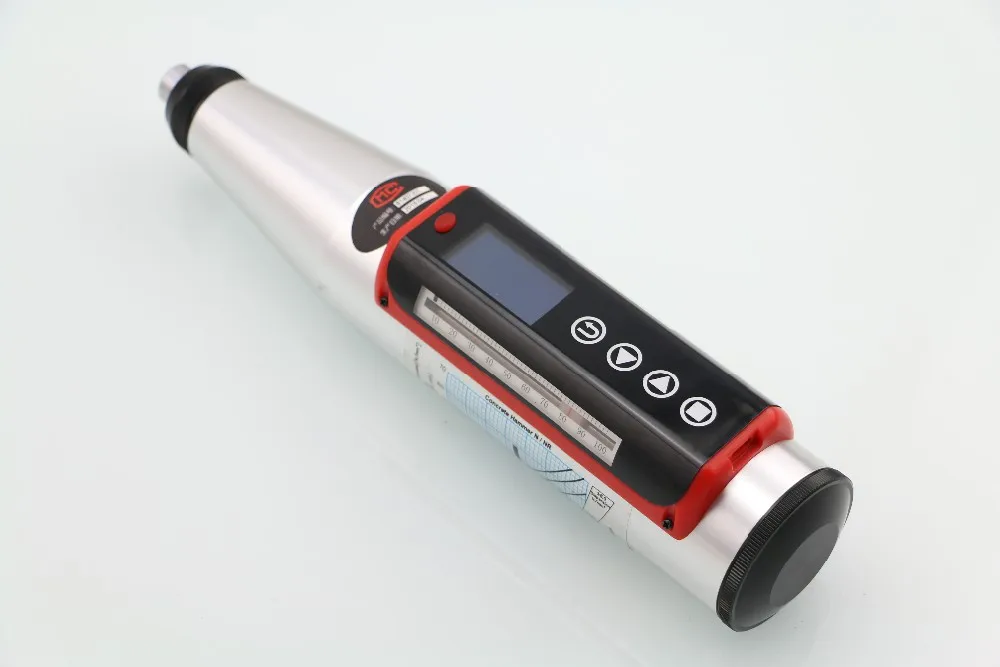

HT-225Q digital concrete test hammer

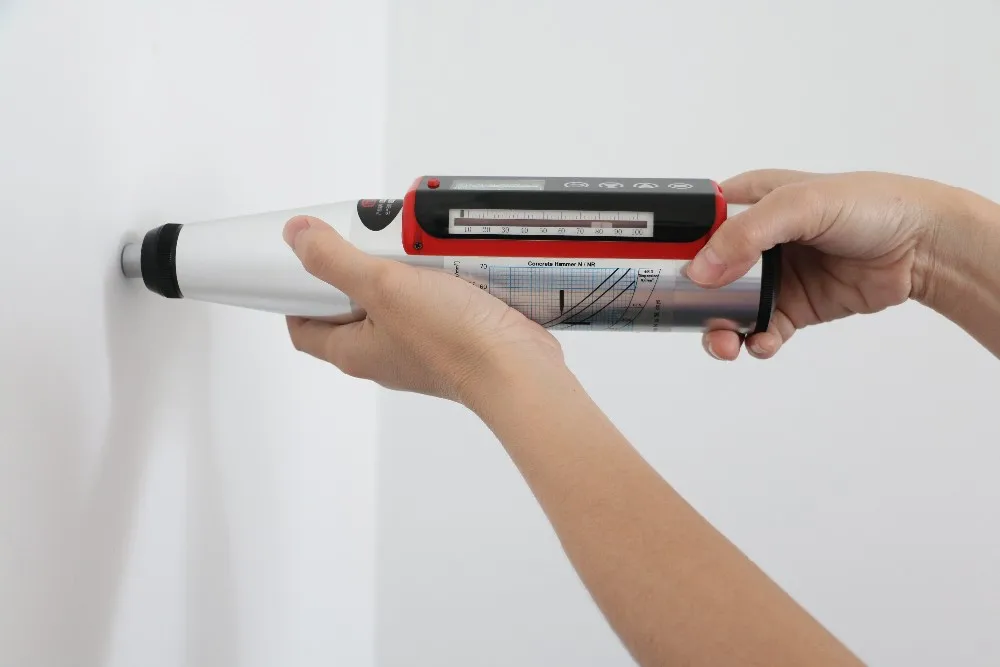

HT-225Q Digital concrete hammer is a high-tech product,especially designed for the needs of in place test for concrete compressive strength.applied to non-destructive test hardened concrete compressive strength component in construct project.
Main Features
1) Submit to ” Technical Specification of Inspecting Concrete Compressive Strength by Rebound Method”(JGJ/T23-2011). And ASTM C805,EN 12504
2) Automatic recording function improves the efficiency of measurement
3) Using sensitive operation touch keys. the keys are life-longing
4) Integrated wireless structure of the test hammer host and the displayer part.Easy to carry and make work efficient
5) The instrument is powered by a built-in rechargable lithium battery, which can operate continuously for more than 10 hours.
Main Features
Measure range: 10-70Mpa
Impact energy: 2.207J
Length of spring strength:75±0.3 mm
Tension spring Stiffness:785±30N/m
Data storage capacity: 200sets
Radius of Spherical tip :25mm ± 1mm
Power supply: Li-battery
|
Packaging
|
||
|
Size
|
300*120*30mm
|
|
|
Gross Weight
|
2.5 kg
|
|
|

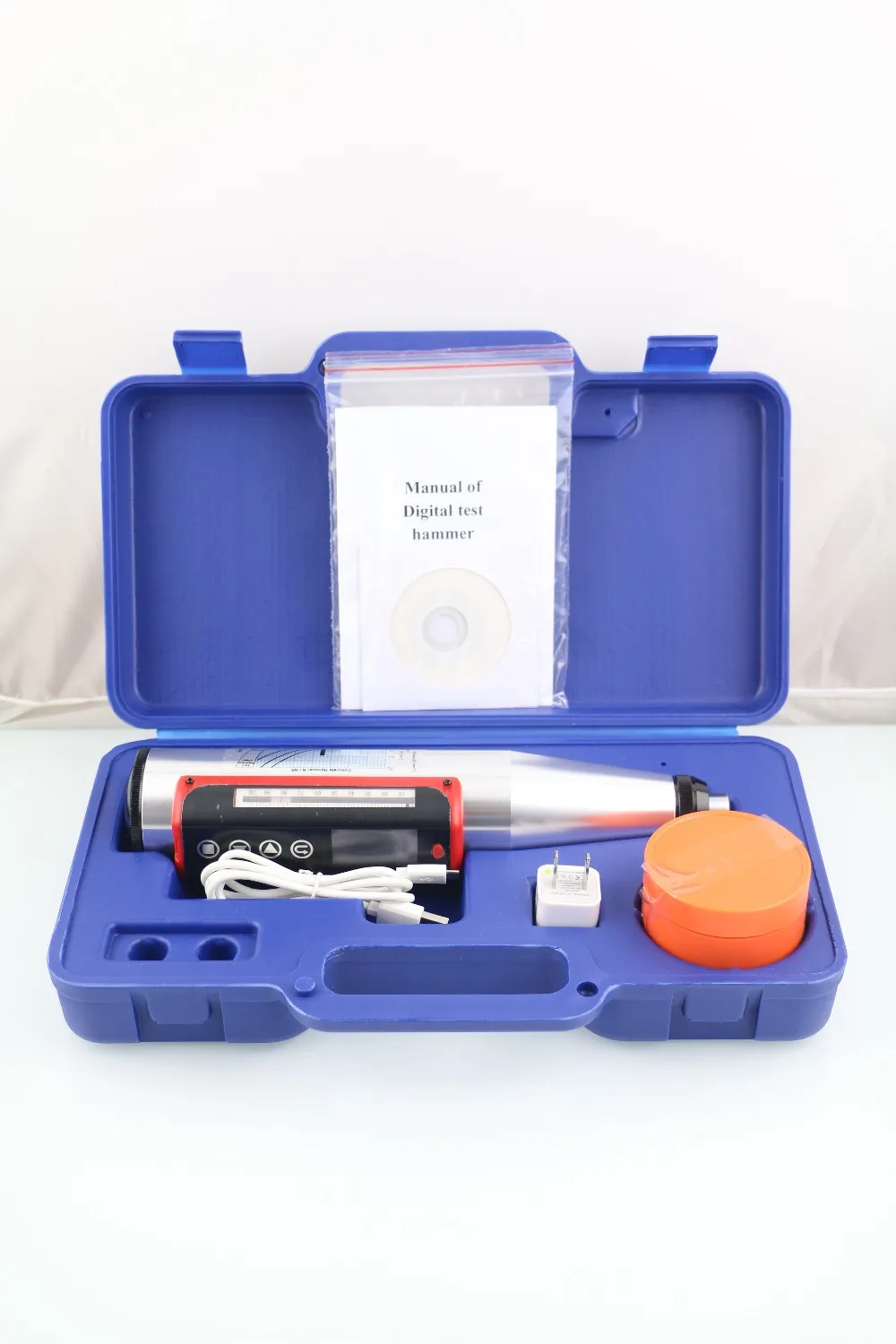

Packaging Details
|
The normal package is plastic box.
Metal box available. pay extra fee.
|
|
