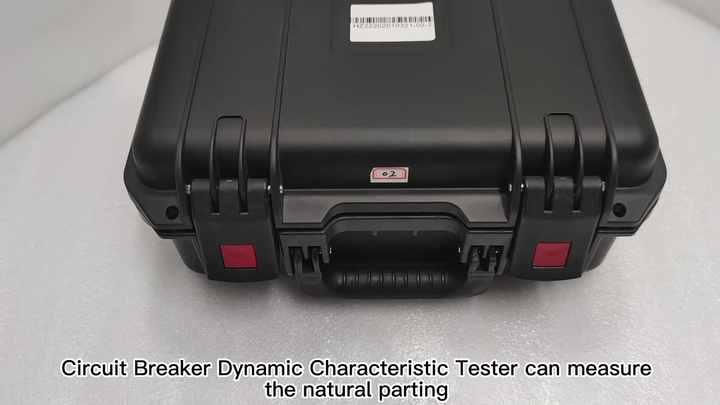

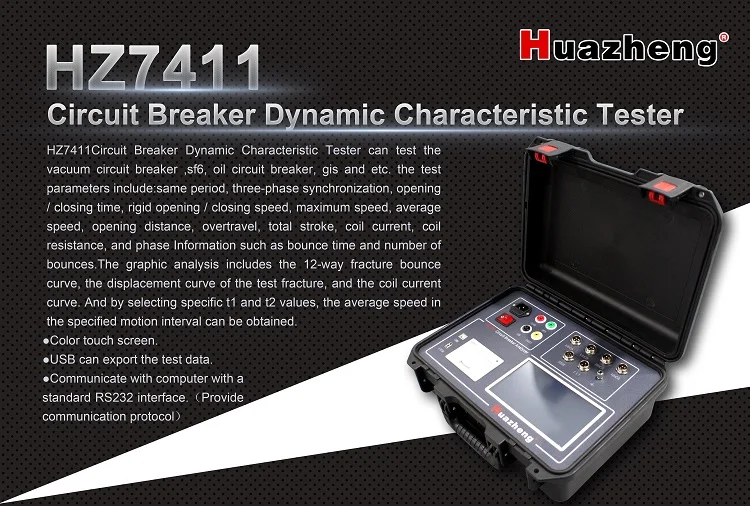

Huazheng Electric HZ7411 Circuit Breaker Dynamic Characteristic Tester Switch Circuit Breaker Analyzer
I.Product technical parameters
1.1 Use environment
Input power:220V±10%,50Hz±10%
Atmospheric pressure:86~106kpa
Temperature::-10~40℃
Humidity:80%RH
1
1.1
1.2 Safety performance
Insulation resistance:>2MΩ
Dielectric strength: the power supply withstands the power frequency of the cabinet at 1.5KV for 1 minute, no flashover and flashover
1.3 Basic parameters
1.3.1 Time
When the range is selected from 250-4000ms, the resolution is 0.1ms and the error is 0.1ms ± 1 word; when the range is 10000-20000ms, the resolution is 1ms and the error is 1ms ± 1 word.
1.3.2 Speed
Range is 20.00m / s, resolution is 0.001m / s, error: ± 0.01m / s ± 1 word
1.3.3 Current
The range is 10A (20A), the resolution is 0.01A, and the error is 1% ± 0.1A.
1.3.4 Closing resistance
The range is 50-2000Ω, the resolution is 0.1Ω, and the error is% 1 ± 1Ω.
1.3.5 Output Power
DC5 ~ 270V digital adjustable 10A (20A) (instantaneous operation).
1.3.6 Stroke
Switch type |
Range(mm) |
Resolution(mm) |
Error |
Vacuum circuit breaker |
50 |
0.1 |
1%±1 word |
SF6 circuit breaker |
300 |
||
Less oil circuit breaker |
1000 |
Table 1
