IEC 61290-10-1 Solar Storm Highly Precise Environmental Test Equipment for PV Panels
Product Description
|
Name
|
PV Tester PV Solar Panel Simulator Test Chamber PV Test Machine
|
|
Model
|
THV-Volume-5
|
|
Internal Dimension (mm)
|
To be confirmed
|
|
Overall Dimension (mm)
|
To be confirmed
|
|
Temperature Range
|
-60℃ ～ +150 ℃
|
|
Humidity Range
|
20% ~ 98% RH
|
|
Humidity Deviation
|
± 2.5% RH
|
|
Temperature Change Rate
|
1 ~ 3.4℃ / Min
|
|
Panel Size
|
1M*2M
|
|
Panel Capacity
|
4 / 6 / 8 / 10 / 12 Pieces customized accordinly.
|
|
Cooling
|
R23/R404A
|
|
Controller
|
Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB
|
|
Sensor
|
PT100Ω
|
|
Safety Device
|
Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection;
Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection |
|
Exterior Material
|
White powder coated
|
|
Interior Material
|
SUS 316 stainless steel
|
|
Standard Configuration
|
Cable hole (Φ 50 or Φ 100,) with plug; and 1 sample rack.
|
|
Power Supply
|
220V 50Hz / 380V 50HZ
|
|
Standard
|
IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345
|
|
IEC 61215/IEC 61646/IEC 61730/IEC 61290 /IEC 61282 /UL 1703/ASTM E1036
|
Product Features
• 7 inch LCD Touch Screen (TATO TT5166)
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable
• With Humidity Sensor
• With thermostats (prevent overheat)
• Test Hole (50 mm diameter)
• With Data Storage function by USB Flash Memory
• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector

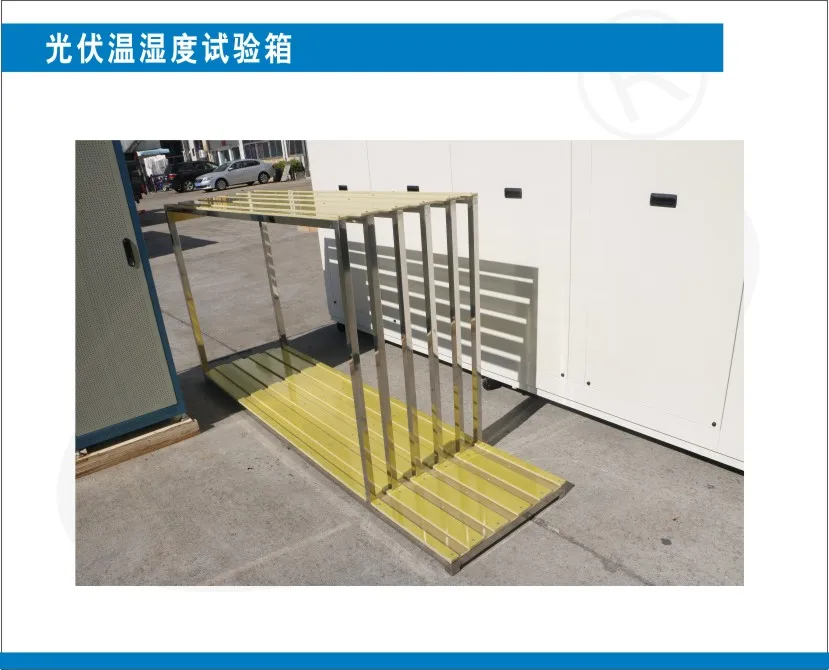

• Adjustable Shelf
• With RS485/232 output to computer
• Remote fault notification (optional)
• Have window for observing device under test; multi-layer vacuum glass;
• User friendly three color LED indicator lamp ,easy to read working condition
• Pure water filter (optional)
• Chamber door: Can lock door manually
• Refrigerant is CFC Free
• Anti – condensed steam by Automatic defrost system
• Emergency stop button
• The machine is automatically stopped when system is too hot or too cold and it allow to define thresholds for hot and cold level.
• Compressor high-pressure protector
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable
• With Humidity Sensor
• With thermostats (prevent overheat)
• Test Hole (50 mm diameter)
• With Data Storage function by USB Flash Memory
• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector
• Adjustable Shelf
• With RS485/232 output to computer
• Remote fault notification (optional)
• Have window for observing device under test; multi-layer vacuum glass;
• User friendly three color LED indicator lamp ,easy to read working condition
• Pure water filter (optional)
• Chamber door: Can lock door manually
• Refrigerant is CFC Free
• Anti – condensed steam by Automatic defrost system
• Emergency stop button
• The machine is automatically stopped when system is too hot or too cold and it allow to define thresholds for hot and cold level.
• Compressor high-pressure protector
