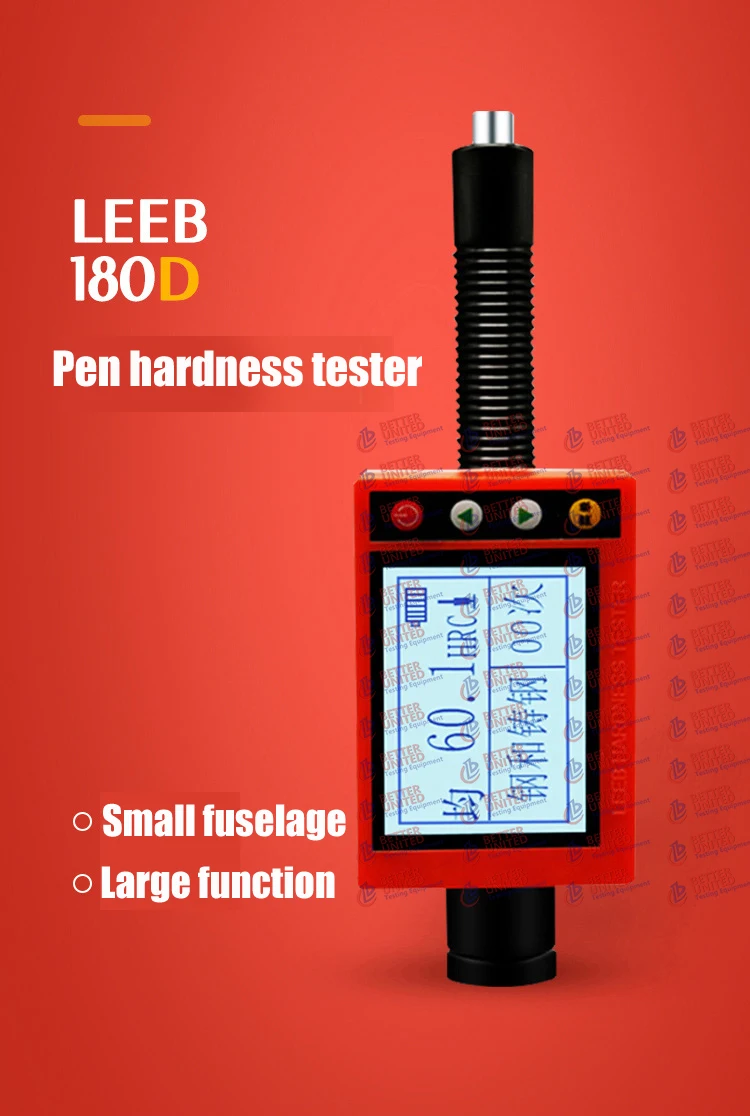

Pen type hardness tester
The pocket hardness tester, also known as a pen type hardness tester, is based on the Leeb hardness measurement principle and can easily and quickly detect the hardness of various metal materials on the spot, supporting free conversion between various hardness systems such as Leeb, Brinell, and Rockwell. It has an integrated and exquisite design, small size, easy to carry, high integration, stable and reliable performance, and supports data transmission, printing and storage functions. It is widely used in metal processing and manufacturing industry, special equipment, failure analysis of sexual components, commodity inspection, and other fields. It is particularly suitable for on-site hardness testing of large parts and non detachable components. It is a professional precision instrument that improves the production qualification rate and saves costs.

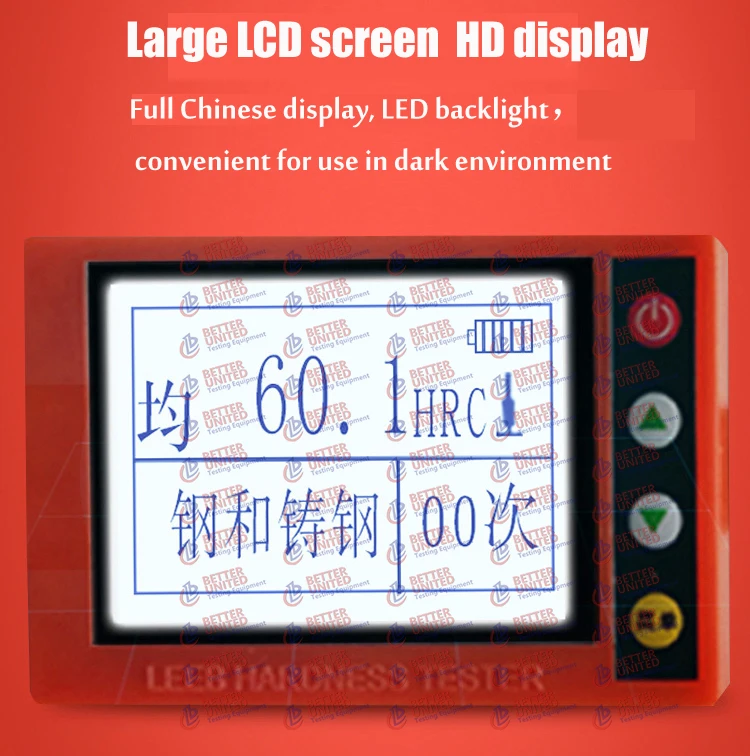

High contrast segment code LCD display, simple and convenient to operate.
“Support for” forged steel “materials. When testing” forged steel “samples with a D-type impact device, the HB value can be directly read, without the need for manual table lookup.”.
It has the calibration function of indicating software.
It can store 100 sets of hardness measurement data (32 to 1 impact times), each set of data including single measurement value, average value, impact direction, number of times, material, hardness system, and other information.
Remaining power display, which can display the remaining power of the battery in real time. It is equipped with a charging process indicator to display the charging process.
USB communication interface allows convenient and fast data communication with a PC.
Equipped with data processing software, it has rich functions such as transmitting measurement results, measuring value storage management, measuring value statistical analysis, printing measuring value reports, and batch setting instrument parameters.

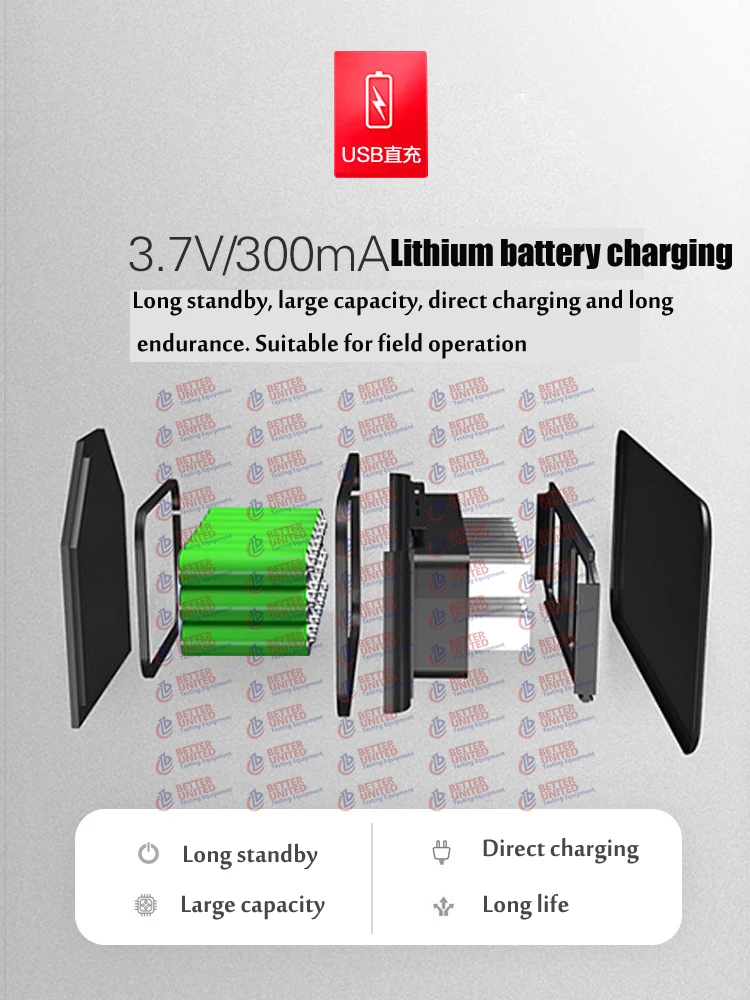

Built-in lithium battery and charging control circuit; Can work continuously for not less than 200 hours; It has power saving functions such as automatic hibernation and automatic shutdown.
Integrated and exquisite design, small size, easy to carry, high integration, stable and reliable performance, suitable for harsh on-site operating environments, and resistant to vibration, shock, and electromagnetic interference.
|
Model
|
leeb180D
|
|
Calibration function
|
Three calibration functions of Richter, Rockwell and Brinell
|
|
Test capability
|
Conventional hardness tester measurement
|
|
Measuring range
|
(150-960)D(171~68.5)HRC(77-651)HB(83~976)HV (26.4~99.5)HS(59.6~99.6)HRB
|
|
Indication error
|
+6HLD(HLD=760)
|
|
Indication repeatability
|
6HLD(HLD=760)
|
|
Test direction
|
360°
|
|
Hardness system
|
HL HRA HRC HRB HB HV HS HSD
|
|
Identifiable impact device
|
D
|
|
PC communication
|
have
|
|
Store
|
have
|
|
Statistics
|
have
|
|
Power Supply
|
Lithium battery charging 3.7v/300ma
|
|
Overall dimension
|
150*40*45mm
|
|
Weight
|
About 110g
|
|
Standard configuration
|
Host impact device integrated standard hardness block charger nylon brush support cup
|
|
Optional
|
Various special-shaped support cup standard hardness block communication software
|
