Digital Clamp Meter, AC Auto-Ranging 400 Amp

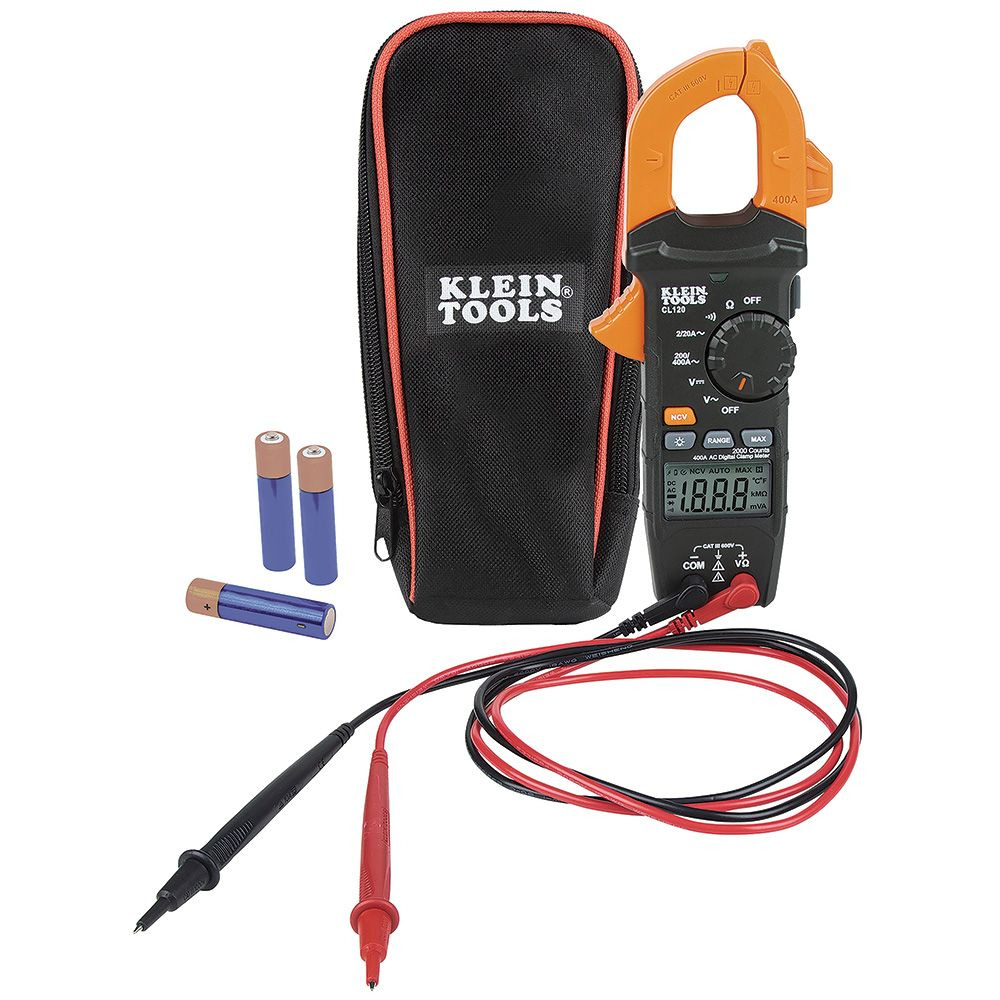

Klein Tools CL120 Clamp Meter is an automatically ranging digital clamp-meter that measures AC current and NCVT via the clamp, and AC/DC voltage, resistance and continuity via test-leads. Klein Tools? Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with time-saving features.
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test-leads
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Auto ranging measurements
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands-free operation
- Durable, multifunction meter
- Auto-Range, Hold, Data Hold, and Max value
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, Instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Specifications
Type: Auto Ranging Clamp
Application: Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-Leads
Special Features: Automatic Ranging for Measurement; NCVT
Material: ABS/Electronics
Batteries: 3 x AAA
Auto-Power Off: Yes
Jaw Size: 1.6” (4.1 cm)
Drop Protection: 6.6′ (2 m)
Display: 2000 Count Backlit LCD
Functions: AC Current, NCVT, AC/DC Voltage, Resistance and Continuity
Voltage: 600V AC/DC
Current: 400 A AC
Ohms (Resistance): 20MO
AC Voltage: 600V
DC Voltage: 600V
DC Polarity Indicator: Yes
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included: Carrying Case, Instructions, Test Leads, and Batteries
Overall Length: 8.45” (21.5 cm)
Overall Height: 1.5” (3.8 cm)
Overall Width: 3.5” (8.9 cm)
Weight: 11 oz (314 g)
