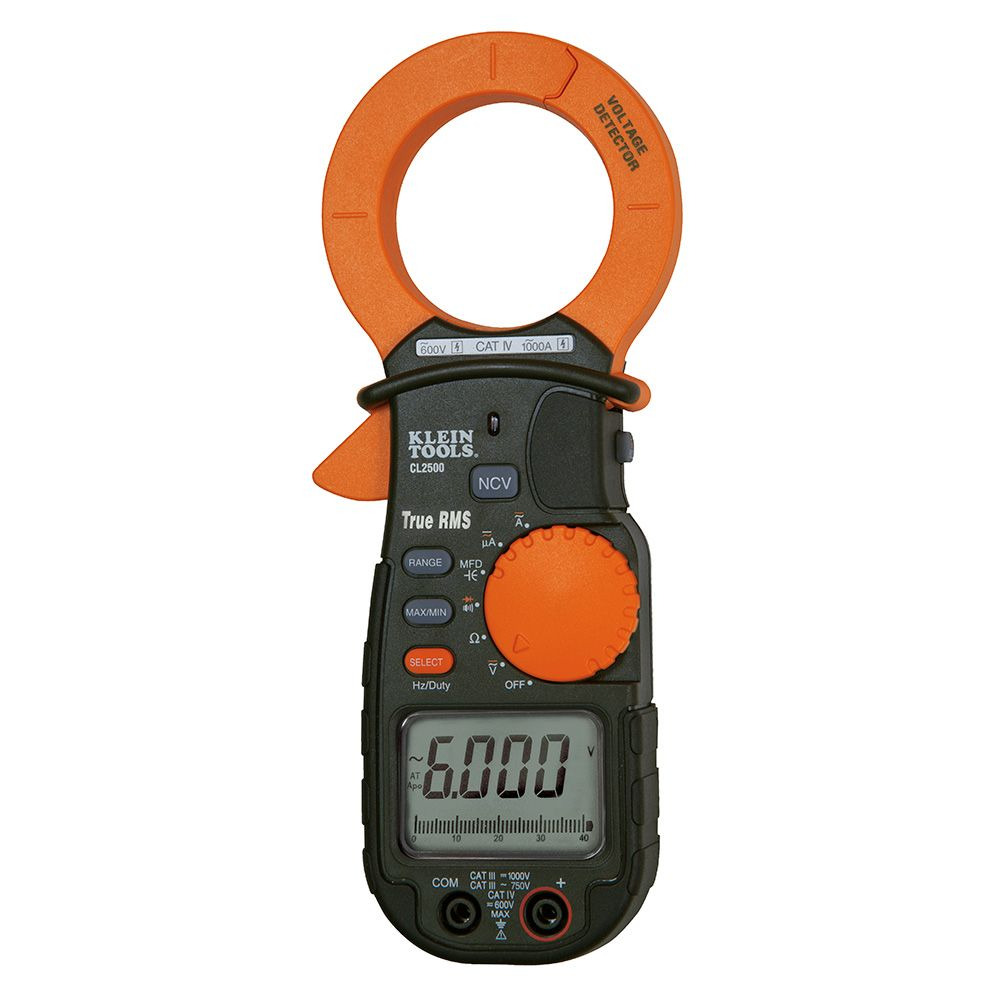

1000A AC/DC TRMS Clamp Meter
Designed by electricians for electricians, this professional series true RMS auto-ranging clamp meter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and duty cycle. The built-in magnetic mount allows for hands-free convenience. The unit is CAT IV Safety rated and includes case, test leads, test lead holder and batteries.
- Extra wide jaw opening accommodates a greater measuring area.
- True RMS accurate readings for all signals.
- Work Light in jaw area
- Magnetic Mount on back secures meter and frees hands.
- Non-Contact Voltage Tester.
- Backlit display is brighter than most competitive units.
- Measures capacitance; great for HVAC work.
- Analog bar graph.
- IP42
- 3.3 feet / 1 meter drop protection.
- CAT IV safety rating for 600V.
Specifications
Batteries: 2 x AAA
Jaw Size: 1.97” (5 cm)
Drop Protection: 3.3′ (1 m)
Display: 6000 Count LCD
Voltage: 750V AC; 1000V DC
Current: 1000A AC; 1000A DC
Capacitance: 6000?F
Ohms (Resistance): 60MO
Ingress Protection: IP42
Standard: CAT IV 600V
Included: Test Leads, Case and Batteries
Overall Height: 8.09” (20.5 cm)
Overall Width: 2.56” (6.5 cm)
Weight: 13.6 oz (386 g)
Jaw Size: 1.97” (5 cm)
Drop Protection: 3.3′ (1 m)
Display: 6000 Count LCD
Voltage: 750V AC; 1000V DC
Current: 1000A AC; 1000A DC
Capacitance: 6000?F
Ohms (Resistance): 60MO
Ingress Protection: IP42
Standard: CAT IV 600V
Included: Test Leads, Case and Batteries
Overall Height: 8.09” (20.5 cm)
Overall Width: 2.56” (6.5 cm)
Weight: 13.6 oz (386 g)
WARNINGS
- Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all Test and Measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
