Description

Laboratory Turntable Water Proof Pressure Testing Machine Spray Climatic Test Equipment

Overview

Essential details

Warranty:: 2 years, 24 months

Customized support:: OEM, ODM, OBM

Place of Origin:: Guangdong, China

Brand Name:: ZL

Model Number:: ZL-6016A

Power:: Electronic

Name:: Simulate Climatic IPX3 IPX4 Programmable Water Rain Spray Test Chamber

Function:: IPX1~9 can be customized

Electrical controller:: LCD display controller

Turntable lifting way:: fixed type (can not adjusted)

Hole space:: 100~200mm(optional)

turntable diameter:: D400mm

Spray temperature:: (25℃);80±5℃(optional)

Spray pressure:: 8000~10000 Kpa

Power supply:: 380V

Supply Ability

Supply Ability: 100 Set/Sets per Month Programmable Water Rain Spray Test Chamber

Packaging & delivery

Packaging Details

Port

Picture Example:

Lead time:

Quantity(sets)	1 – 1	>1
Lead time (days)	14	To be negotiated

Laboratory Turntable Water Proof Pressure Testing Machine Spray Climatic Test Equipment

Product Description

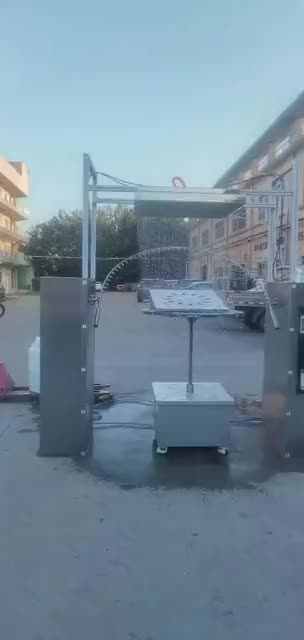

Equipment summary:
This machine used to test anti-rain and waterproof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.

Corresponding standard:

JIS D0203, D5500, SAE J585e, CNS 7138

Applicable industries:

Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control

Technical parameter:

Testing temperature	Room temperature	Rt~85°C
Inner size	100(W)100(D)100(H) cm or custom
Spray volume	0.07(1±5%)L/min (Every hole in average)
Spray nozzle	Spherical laser drilling,direction: 360°adjustable, make injection of rain fan, to spray the specimen
Hydraulic aperture	φ0.8mm
Water spray hole spacing	50mm
Number of blowhole	16 or 25
Water ring radius	R400mm
Spray nozzle diameter	φ15mm stainless steel
Pendulum Swing tube range	about±180°(can adjustable to ±45°±60°±90°)
Swing speed	60°/s adjustable
Spray pressure	0~400Kpa adjustable
Specimen rotative speed	4~17rpm (Adjustable)
weight	350kgs
Power	1 phase,220V,5KW
Test chamber material
Inner size	100010001000(DWH)mm
Dimension	130015002200(DWH)mm
Cabinet material	SUS304 stainless steel sheet, work room and all the other parts of contact with water are stainless steel or copper.
Door	Large tempered glass door, with manual wiper, Can observe the test condition any time.
Seal	Silicone rubber article
Test bench	φ300mm, mesa of grid. Motor drive the worm gear deceleration, frequency inverter control speed,to the right speed.
Test bench turn speed	2-18r/min (Imported inverter stepless adjustment)
Turntable load	≤100kg
Water supply	imported stainless steel pumps of GRUNDFOS
Water tank	stainless steel water tank, with water filter, water floating ball valve, drain valve, overflow pipe.
Water temperature	Less than +5℃ with room temperature
Water source	Clean the local water by double filtering
Lighting system	turn on–turn off–turn on any time setting
Electrical control
Electrical controller	LCD display controller touch key
Testing time	999S adjustable
Speed control	variable-frequence governor or stepping motor, speed control smoothly, control accuracy high
Pressure meter	Dial gauge display every single test levels of stress
Flowmeter	Digital water flow measurement, to display every single test levels of traffic
Flow pressure control	Using manual valve control flow and pressure, digital meter indicates flow, stainless steel spring type pressure gauge indicating pressure
Electrical execute device	French schneider series electrical components
Default test time	0s~99h59m59s adjustable
Cycle time	“spray-stop-spray” is a loop,freely setting spray time, stop time, loop times or testing total time.
Operational environment
Environment temperature	RT~50℃(Average temperature≤28℃ within 24H)
Environment humidity	≤85%RH

Main functions:

1 the hydraulic flow design type, about 10cm/h commonly, the maximum fall rainfall with the greatest rainfall coming decades 35mm/m. Unique with water device can make rainfall and stabilize the pressure control.

2, RS. Separate control slots, without the operator into change.

3, the machine type B can make the test content from Rt ~ 85 ℃ heat, temperature under test than water temperature high produce a negative pressure, make more accurate test. (MIL – STD).

Click here >>>> More Factory Prices and Shipping !!!

About us

ABOUT US

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.

Throughout its more than 13 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 80 countries these years,especially favored by European and American countries.

Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.

In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.

Click here >>>> More Factory Prices and Shipping !!!

FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil…and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry – quotation – communication – order confirming – deposit payment – production – testing and debugging – balance payment – packing – delivery – customer receiving – after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
