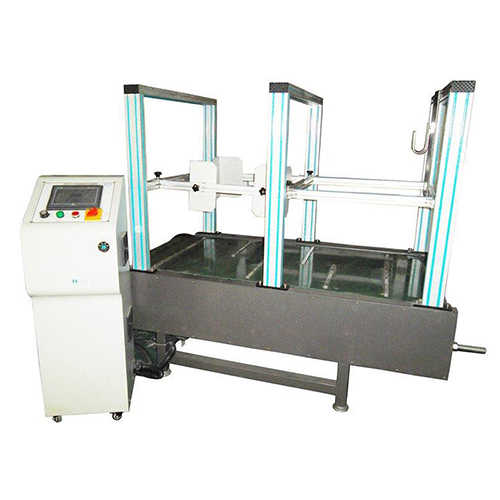

Luggage Simulate Transport Mileage Life Testing Equipment
- Warranty:
-
1 YEAR
- Customized support:
-
OEM, ODM
- Place of Origin:
-
China
- Brand Name:
-
HD
- Model Number:
-
HD-D113-2
- Test speed:
-
0~5km/hr, adjustable, LED display
- Time setting:
-
0~99 hours 59 minutes, power off type
- Weight:
-
approx. 360kg
- power:
-
1,AC220V/50HZ
- Supply Ability
- 100 Set/Sets per Month
- Packaging Details
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
- Port
Shenzhen , HongKong , Guangzhou
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 7 To be negotiated
Luggage simulate transport mileage life testing equipment is use for wheel suitcase, travel bags, baby carries and walking
test,etc. It mainly tests the quality ofthe luggage when walking around. From the test mileage, test speed, we can know the heat rupture of wheel, loss volume of the wheel, any deformation of the integral construction.
Theory
Luggage simulate transport mileage life testing equipmentAccording to the test specification production,Fix the handle of suitcase on the testing hook and tighten with string; then load a certain weight into the suitcase and start the test with setted time and speed, so as to know the performance of wheels and the full structure.
Design criteria: QB/T 2920-2007
|
Item
|
Specification
|
|
Test speed
|
0～5km/hr, adjustable, LED display
|
|
Time setting
|
0～99 hours 59 minutes, power off type
|
|
Turbulence plate
|
5mm/8pcs, unsymmetrized
|
|
Belt size
|
490×80cm
|
|
Control method
|
PLC control and touch screen
|
|
power
|
1∮，AC220V/50HZ
|
|
Weight
|
approx. 360kg
|
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it’s not from
our factory’s. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can
provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
www.haidatestequipment.com
If you want to know more information…
Please leave a message below and click ” CONTACT SUPPLIER “
Thanks for your time and attention!
