Overview
Essential details
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
Gelt
- Model Number:
-
G-302
- Power Source:
-
Electric
- Warranty:
-
Lifetime
- After-sale Service:
-
Return and Replacement
- Material:
-
Metal, Plastic
- Shelf Life:
-
1years
- Quality Certification:
-
CE ISO
- Instrument classification:
-
Class II
- Safety standard:
-
GB/T18830-2009
- Product name:
-
ECG Professional Medical Devices
- Display mode:
-
7.0 inches
- Sensitive filters:
-
ADS, HUM, and EMG.
- Working modes:
-
Manual/Auto/Arrhythmia analysis
- Ni-Mh Battery:
-
4 hours
- Weight:
-
2.8kgs
- warranty period:
-
12 month warranty period, but lifelong free maintain
- Storage:
-
400 ECG reports
- SD card, USB disk:
-
Supprt
- Lead:
-
standard 12 leads
Packaging & delivery
- Selling Units:
- Single item
- Single package size:
- 35X17.5X25 cm
- Single gross weight:
- 4.000 kg
- Package Type:
-
Carton with waterproof film
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 2 – 10 >10 Lead time (days) 5 7 To be negotiated
Medical equipment ECG Portable Monitor Electrocardiography ECG Professional Medical Devices

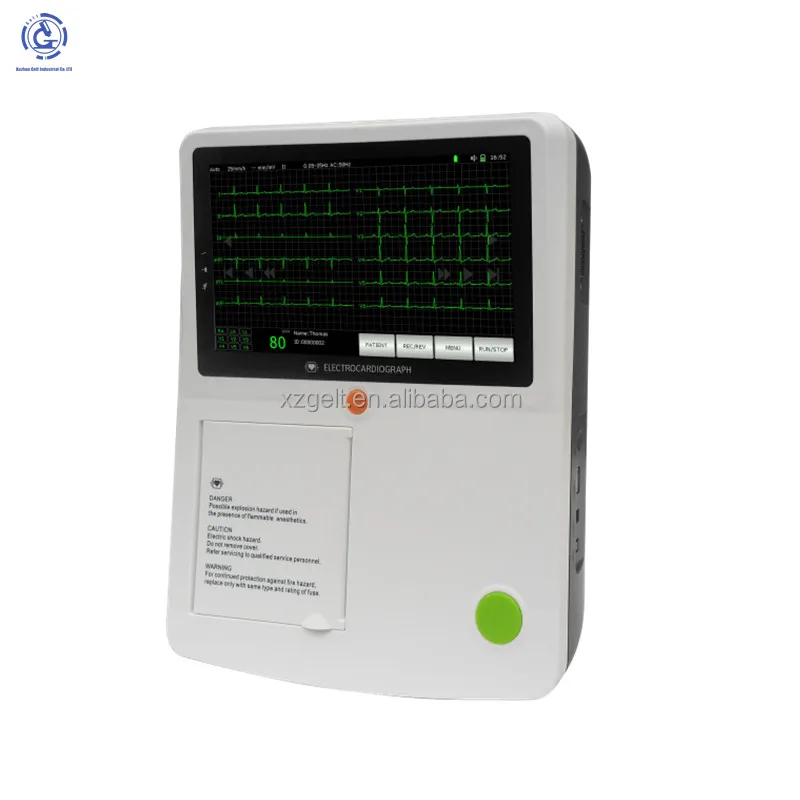

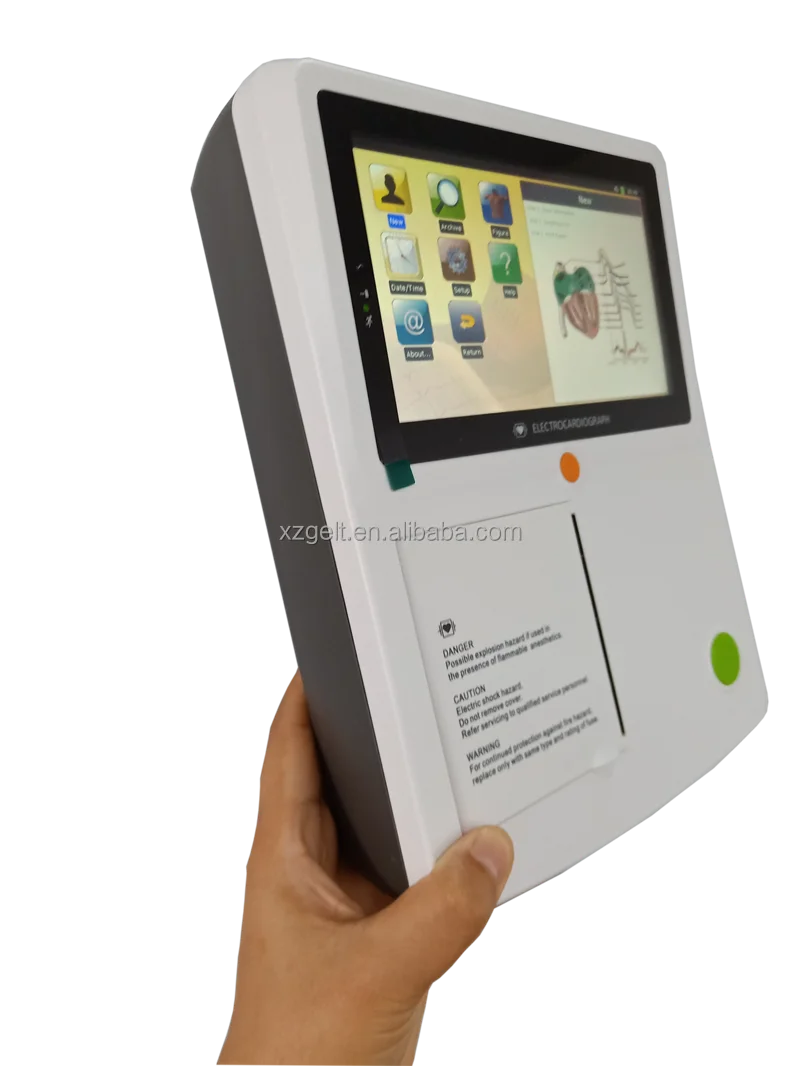

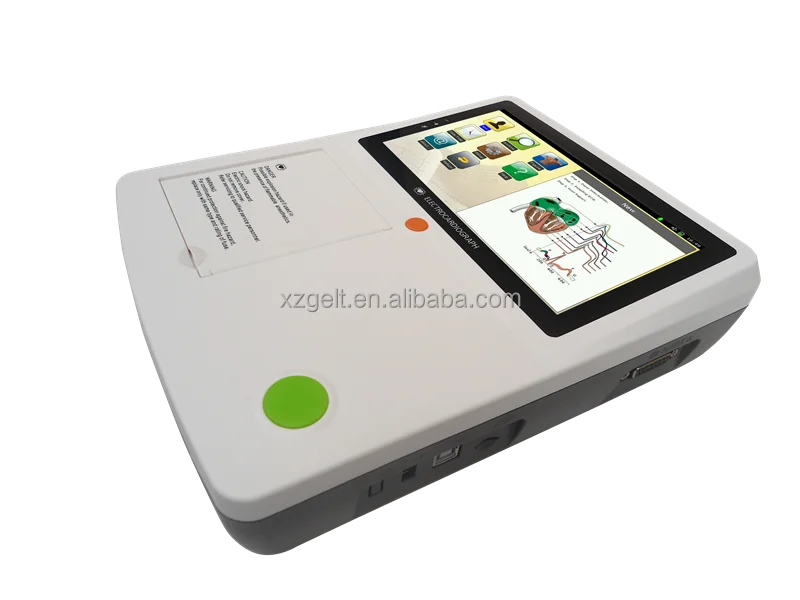

Product Description
Main features:
Modern in design, light in weight, compact in size.
Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.

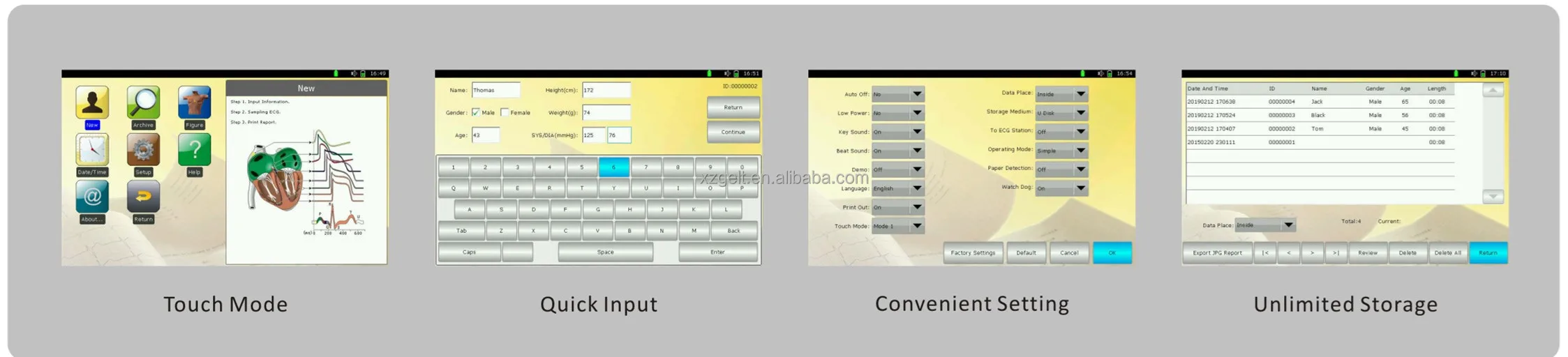

7” color touch screen.
Sensitive filters of ADS, HUM, and EMG.
Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
Automatic adjustment of baseline for optimal recording.
Thermal printer with 80mm print paper, synchronization print
Lead off & lack off paper detection function.
Built-in rechargeable li-ion battery (11.1V/4000mAh), AC/DC power conversion.
Adapt to 100-240V, 50/60Hz AC power supply
Historical data and patient’s information can be reviewed and printed.
Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
The machine can store over 400 ECG reports in its built-in flash.
Sleep mode to save energy and extend LCD life
The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
7” color touch screen.
Sensitive filters of ADS, HUM, and EMG.
Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
Automatic adjustment of baseline for optimal recording.
Thermal printer with 80mm print paper, synchronization print
Lead off & lack off paper detection function.
Built-in rechargeable li-ion battery (11.1V/4000mAh), AC/DC power conversion.
Adapt to 100-240V, 50/60Hz AC power supply
Historical data and patient’s information can be reviewed and printed.
Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
The machine can store over 400 ECG reports in its built-in flash.
Sleep mode to save energy and extend LCD life
The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
Specification
|
CMRR
|
≥ 100dB, with AC Filter
|
Calibrating voltage
|
1mV± 3%
|
|
Input circuit
|
Floating
|
Voltage tolerance
|
± 500mV
|
|
Input circuit current
|
≤ 0.1µ A
|
Time constant
|
> 3.2s
|
|
Resolution
|
12bit/1000Hz
|
Frequent response
|
0.05Hz~150Hz
|
|
Operation mode
|
Manual/Auto
|
Noise level
|
≤ 15µ Vp-p
|
|
Filter
|
AC. EMG Filter
|
Threshold
|
≤ 20µ V
|
|
Drift filter
|
Anti-Drift System
|
Paper speed
|
12.5, 25, 50mm/s (± 3%)
|
|
Input Impedance
|
> 50MΩ
|
Sensitivity
|
5，10，20mm/mV
|
|
Patient current leakage
|
< 10µ A
|
Recorder
|
High resolution thermal printer
|
|
Specification of fuse
|
T1.6A 250V Ø5×20
|
Battery
|
Built-in rechargeable Li-ion battery 11.1V(2200mAh)
|
|
Recording paper
|
Thermal recording paper
|
Package
|
256mm*204mm*66mm
|
Standard Configuration:
Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
80mm*20M recording paper: 1 PC
Paper axis: 1 PC
Power cord: 1 PC
Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
80mm*20M recording paper: 1 PC
Paper axis: 1 PC
Power cord: 1 PC
Packing:
Single package size: 35*25*17.5cm
Single gross weight: 3 KG
8 unit per carton, package size: 54*33*75cm, total gross weight 22 KG
