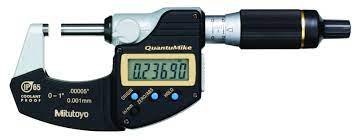

Precision is our ProfessionMitutoyo Quantumike Digimatic Micrometer, Series 293
Coolant-proof Micrometer
- Faster measurement with 2mm per revolution instead of the standard 0.5mm.
- A patented ratchet thimble mechanism helps ensure repeatability.
- A function lock helps prevent error.
- IP-65 protection level.
- Certificate of inspection provided.
- With a standard bar except for 0-25mm/0-1″ model.
- Supplied in fitted plastic case.
Technical Data
- Accuracy: Refer to the list of specifications
- Resolution: 0.001mm or .00005″/0.001mm
- Flatness: 0.3?m/.000012?
- Parallelism: 1?m/.00004? for models up to 50mm/2?
- 2?m/.00008? for models up to 100mm/4?
- Measuring force: 7-12N
- Measuring faces: Carbide tipped
- Display: LCD
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 1.2 years under normal use
- Dust/Water protection level: IP65
Function
- Origin-set, Zero / ABS, Hold, Function lock, Auto power on/off,
- Data output (output models),
- inch/mm conversion (on inch/metric models only)
- Alarm: Low voltage, Counting value composition error
| Quantumike Digimatic Micrometer, Series 293, IP65 with 2mm/rev Spindle Speed | ||||
| Code | Model | Range | Resolution | Price |
| Metric | ||||
| 293-140 | w/ SPC Data Output | 0-25mm | 0.001mm | 18,900.00 |
| 293-145 | w/o SPC Data Output | 0-25mm | 0.001mm | 16,000.00 |
| 293-141 | w/ SPC Data Output | 25-50mm | 0.001mm | 20,600.00 |
| 293-146 | w/o SPC Data Output | 25-50mm | 0.001mm | 18,900.00 |
| 293-142 | w/ SPC Data Output | 50-75mm | 0.001mm | 23,200.00 |
| 293-147 | w/o SPC Data Output | 50-75mm | 0.001mm | 22,100.00 |
| 293-143 | w/ SPC Data Output | 75-100mm | 0.001mm | 25,400.00 |
| 293-148 | w/o SPC Data Output | 75-100mm | 0.001mm | 23,900.00 |
| Inches/Metric | ||||
| 293-180 | w/ SPC Data Output | 0-1″/0.25mm | 0.00005″/0.001mm | 19,900.00 |
| 293-185 | w/o SPC Data Output | 0-1″/0.25mm | 0.00005″/0.001mm | 16,600.00 |
| 293-181 | w/ SPC Data Output | 1-2″/25-50mm | 0.00005″/0.001mm | 21,700.00 |
| 293-186 | w/o SPC Data Output | 1-2″/25-50mm | 0.00005″/0.001mm | 19,400.00 |
| Quantumike Digimatic Micrometer, Series 293, IP54 | ||||
| Code | Remarks | Range | Graduation | Price |
| 293-666 | w/ Output Function | 0-30mm | 0.001mm | 29,200.00 |
| 293-667 | w/ Output Function | 25-55mm | 0.001mm | 38,500.00 |
