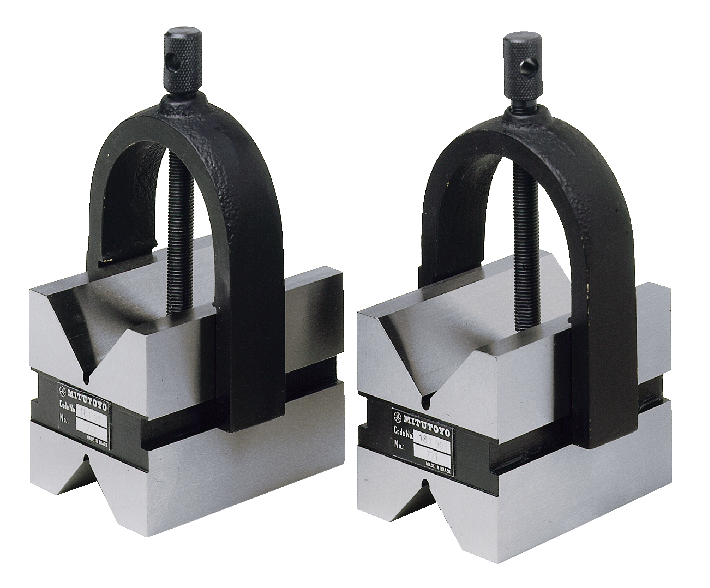

Precision is our ProfessionMitutoyo V-Blocks & Clamps, Series 181
These Hardened Steel V-Blocks have clamp brackets and offer you the following benefits:
- There are two V-blocks per set.
- The feature V-angle 90? clamping brackets.
- Contact faces are ground and lapped.
- Designed as a fixture to enable you to check cylindrical precision machined parts.
Features
|
Length [mm]:
|
41
|
|
Width:
|
31.8 mm
|
|
Max. receiver for workpiece V-groove 1 ?:
|
25
|
|
Max. receiver for workpiece V-groove 2 ?:
|
16
|
|
Height:
|
31.8 mm
|
|
Mass:
|
0.65 kg
|
|
Hardness:
|
58-63 HRC
|
|
Parallelism between V-groove and all side surfaces:
|
6 ?m
|
|
Perpendicularity between V-grooves and back surface:
|
9 ?m
|
|
Difference of the height of the pair:
|
12 ?m
|
|
Symmetry of the V-grooves:
|
6 ?m
|
|
Inch-Metric:
|
Metric
|
|
Delivered:
|
In pairs
|
| V-Blocks & Clamps, Series 181 | ||||
| Code | Model | Range | Price | |
| Metric | ||||
| 181-902-10 | VBST-25 | 25mm | 20,600.00 | |
