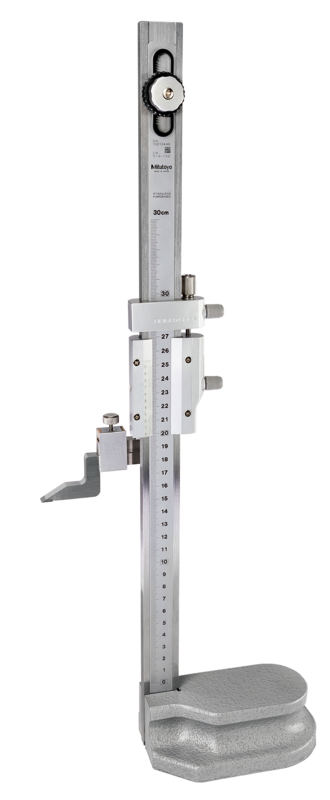

Precision is our ProfessionMitutoyo Vernier Height Gage, Series 514
Standard Height Gage with Adjustable Main Scale
- Zero reference point can be adjusted.
- Satin chrome-finished scales for glare-free
reading. - Extra-large base for rigidity.
- Optional magnifier for easier reading
- Carbide-tipped scriber is provided.
Technical Data
- Main scale adjustment: 15mm or 25mm
- Slider fine feed: 4mm, 6mm, 7mm or 20mm
Standard Scriber Provided
- Up to 600mm: Carbide-tipped scriber (07GZA000) and
scriber clamp (05GZA033) - 0 – 1000mm: Carbide-tipped scriber (905200) and scriber
clamp (05GZA033) - 0 – 1500mm: Carbide-tipped scriber (900390) and scriber
clamp (905008)
| Vernier Height Gage, Series 514, (with adjustable main scale) | ||||
| Code | Model | Range | Resolution | Price |
| Metric | ||||
| 514-102 | HS-30 | 300mm | 0.02mm | 28,900.00 |
| 514-104 | 450mm | 0.02mm | 55,400.00 | |
| 514-106 | HS-60 | 600mm | 0.02mm | 71,900.00 |
| Inches/Metric | ||||
| 514-103 | HS-12 | 12″/300mm | 0.001″/0.02mm | 30,400.00 |
| 514-105 | HS-18 | 18″/450mm | 0.001″/0.02mm | 58,400.00 |
| 514-107 | HS-24 | 24″/600mm | 0.001″/0.02mm | 75,600.00 |
| 514-109 | HS-40 | 40″/1000mm | 0.001″/0.02mm | 173,800.00 |
