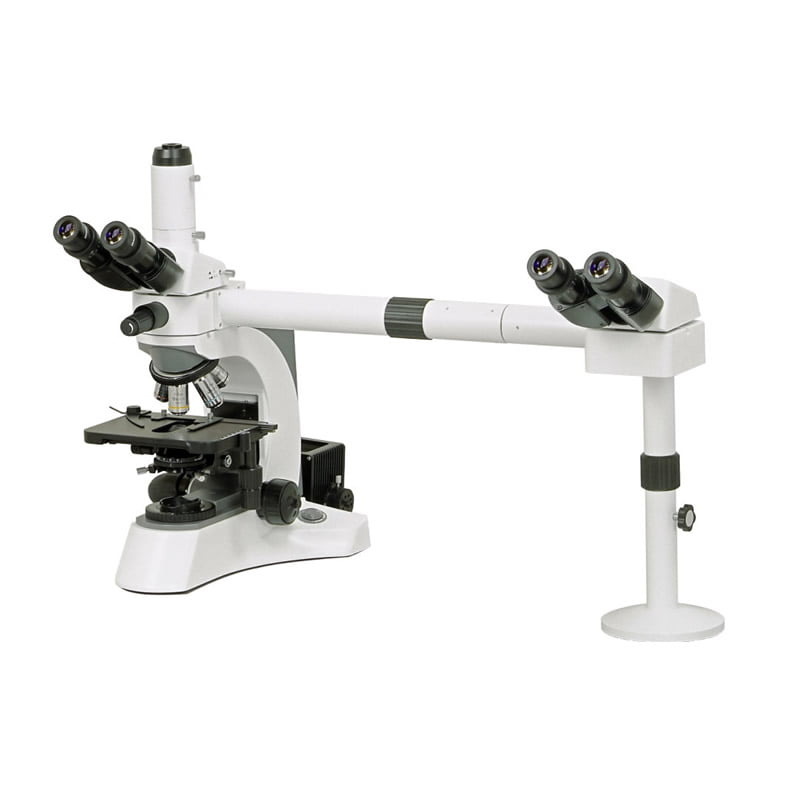

MON013 Two-Person Viewing Microscope

Description

Description

Multi-viewing Microscope allows people observation at the same time.

With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.

Specification

Two Person Viewing Multi-Viewing Biological Microscope

Optical System
infinite Optical System Viewing Head

Head
Compensation Free trinocular Head, inclined at 30degree,360degree Rotatable, interpupillary Distance 48-75mm

1pc

Compensation Free binocular Head, inclined at 30degree,360degree Rotatable, interpupillary Distance 48-75mm

1pc

Eyepiece
Extra Wide Field Eyepiece WF10X/20

4pcs

infinite Plan Achromatic Objective
4X

10X

40X(S)

100X(S, Oil)

Nosepiece
Inverse Quintuple Nosepiece Objective

Stage
Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm

Condenser

Condenser swing condenser N.A.0.9/0.25

Focusing
Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm

Kohler illumination
External illumination, Halogen Lamp 12v50w

Pointer
Green LED Pointer , Brightness Adjustable
