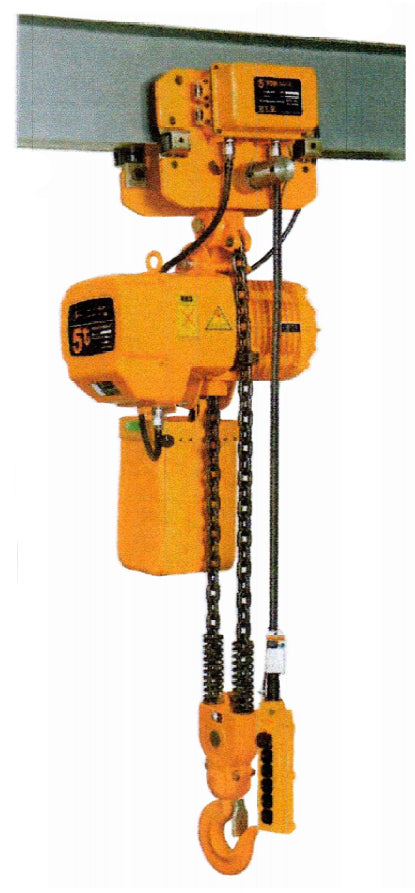

Nippon Electric Chain Hoist (Trolley Type)
- Power supply: 220/440,60Hz, 3P
- Control Voltage: 24V
- Import chain and Germany schneider contactor
| Model | Capacity | Lifting Height | Chain Diameter | Lifting Speed | Hoist Motor | Price |
| SSDHL02-01S & DPC-02 (ES) | 2T | 6m | 10.0mm* 1 Fall | 6.6 m/min | 3kw | 105,000.00 |
| SSDHL03-01S & DPC-03 (ES) | 3T | 6m | 11.2mm*1 Fall | 5.4m/min | 3kw | 130,000.00 |
| SSDHL05-02S & DPC-05 (ES) | 5T | 6m | 11.2mm*2 Fall | 2.7m/min | 3kw | 175,000.00 |
| SSDHL02-01M & DPC-02 (ER2) | 2T | 6m | 10.0mm* 1 Fall | 6.9m/min | 3kw | 120,000.00 |
| SSDHL03-01M & DPC-03 (ER2) | 3T | 6m | 11.2mm*1 Fall | 6.6m/min | 3kw | 145,000.00 |
| SSDHL05-02M & DPC-05 (ER2) | 5T | 6m | 11.2mm*2 Fall | 3.3m/min | 3kw | 195,000.00 |
| Model | Trolley Speed | Trolley Motor |
| SSDHL02-01S & DPC-02 (ES) | 11 or 21m/min | 0.4kw |
| SSDHL03-01S & DPC-03 (ES) | 11 or 21m/min | 0.75kw |
| SSDHL05-02S & DPC-05 (ES) | 11 or 21m/min | 0.75kw |
| SSDHL02-01M & DPC-02 (ER2) | 11 or 21m/min | 0.4kw |
| SSDHL03-01M & DPC-03 (ER2) | 11 or 21m/min | 0.75kw |
| SSDHL05-02M & DPC-05 (ER2) | 11 or 21m/min | 0.75kw |
