Overview

Essential details

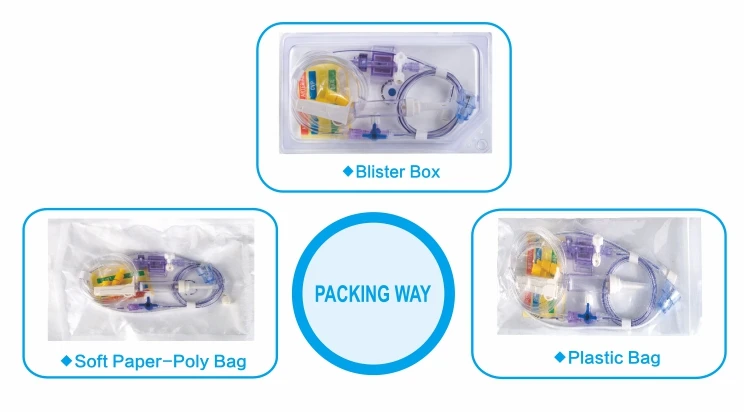

Packaging & delivery

Lead time:

Quantity(pieces)	1 – 1000	1001 – 5000	>5000
Lead time (days)	7	14	To be negotiated

Product Description

Properties	Medical Materials & Accessories

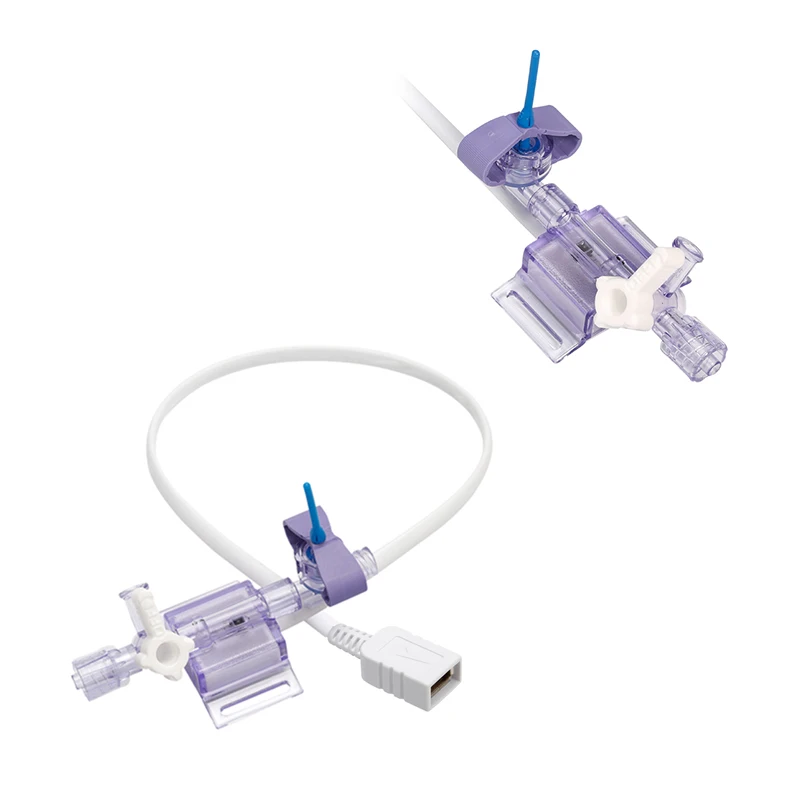

Product Name	E Type USB Disposable IBP Transducer
Brand Name	JCR
Model Number	JIBPT-E-01-USB

Details Images

Main technical parameters and working environment requirements:
Disposable Pressure Transducer
Barometric pressure	70~106Kpa
Relative humidity	10~90% (non-condensing)
Operating pressure range	-50 ~ + 300 mmHg
Sensitivity	5.0μV/V/mmHg ±3%
Nonlinearity and hysteresis	full-scale reading±1.5%
Input impedance	1200Ω ~3200Ω
Zero pressure offset	-20mmHg~+20mmHg
Thermal offset shift	≤±0.3mmHg/°C
Offset drift	After warm-up for 20 seconds, drift within 2 mmHg within 8 hours
Thermal span shift	≤±0.1%/°C
Frequency response	Standard pressure set (48 “/ 12”) is 40 Hz; Separate sensor > 200 Hz
Defibrillator withstand	Defibrillation depends on the final connection of the equipment.
Leakage current	Leakage current is dependent on the final connection of the equipment
Overpressure load	-400~+4000mmHg
Shock resistance	Withstand falling from one meter for three times
Light sensitivity	When exposed to a 3400°K tungsten light, candle light at 3000 feet, it’s less than 1 mmHg under rated voltage.
Storage and transport environment requirements	– 20 ° C~ + 60 ° C, < 90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold.
Contact with the human body	≤168h
Intra-system velocity
Flow	2-5mL/h
Intra-system velocity refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions.
Product shelf-life	3 years
