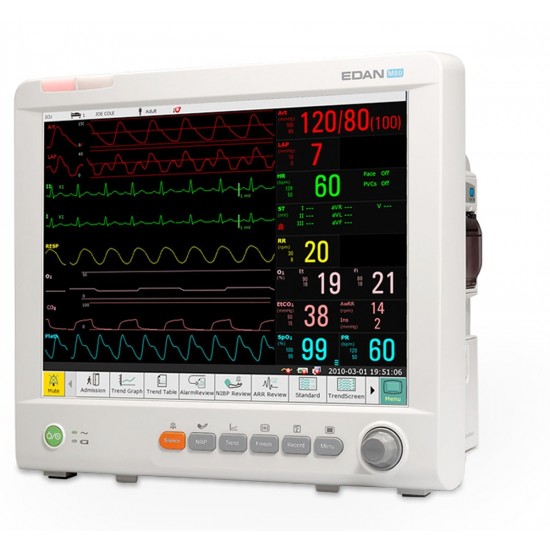

The high performance of EDAN patient monitor M80 is designed to match the needs for critical care, post-anesthesia care, and operation room, etc. The advanced monitoring system and built-in clinical interfaces can provide an all-in-one solution for hospital segments.Features and Benefits15? high-resolution color TFT display with a maximum of 13 waveforms.

Full touch-screen enables intuitive operation by clicking on the specific parameters or the waveform in real-time, standard configuration includes the navigation knob.

Pacemaker detection, electrosurgical interference proof.

Defibrillation protection and defibrillation synchronization.

SD card slot enables memory extension for large data storage.

USB and serial ports enable abundant future upgrades.

VGA output and Analog output.

OxyCRG is available to judge the respiration and circulation function of neonates.

Large font display.

Arrhythmia and S-T segment analysis.

Built-in rechargeable Li-ion (up to 6 hours)

Nurse Call function and bi-directional communication with optional?Product More SpecificationsSpecification

Basic Configuration

• 3/5-lead ECG
• EDAN SpO2
• RESP
• NIBP
• 2-Temp
• Pulse Rate
• 2 IBP Ports (IBP Transducer cable is sold separately)

Optional Configurations

• Respironics CO2 (Sidestream) Module
  • 1 Adult/Pediatric Airway Adapter
  • 1 Nasal Cannula
  • 1 Disposable Sampling Line
• Mainstream EtCO2 (Respironics CAPNOSTAT5)
  • 1 Adult Airway Adapter
  • 1 Neonatal/Infant/Pediatric Airway Adapter
• Cardiac Output Module
  • (1) Cardiac Output Cable (7 pin)
  • (1) In-Line Injection Temperature Probe
  • (2) In-Line Injection Temperature Probe Housing
  • (2) Control Syringe
• Touch Screen
• Thermal Printer
• Patient Viewer Data Management
• Rolling Stand with Mounting Plate
• Wall Mount

Made InChinaThere are no reviews for this product.Write a review
