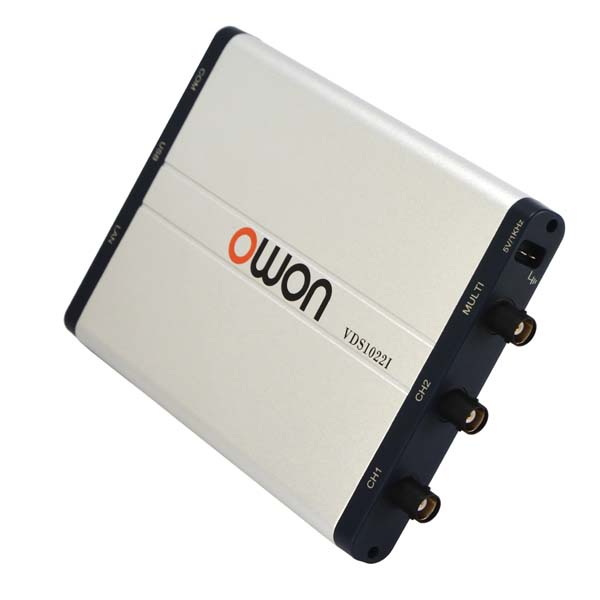

A quality dual channel PC oscilloscope providing a more economical alternative to standard benchtop oscilloscopes, with full functionality via the supplied software, and a much larger viewing area than is available on a standard oscilloscope display (requires a PC or laptop for software to display signal waveforms, readings etc.). The ultra-thin body design ensures easy portability, storage and carrying. Powered via USB connection, and supplied with probes, USB cable, powers supply, software and quick start user guide.? Bandwidth: 25MHz? Sample rate: 100MS/s? Channels: 2? Friendly user interface: FFT, or X-Y, and waveform – 2 views displayed on the same screen? Multi-trigger options: edge, video, slope, pulse, alternate? Trigger Mode: auto, normal, single? USB isolation – less signal interference & more PC protection? Horizontal Scale: 5ns/div – 100s/div, step by 1 – 2 – 5? Record Length: 5K? Max Input Voltage: 400V (DC + AC peak)? Vertical Sensitivity: 5mV/div – 5V/div? Vertical Resolution: 8 bits? Dimensions:170 x 120 x 18 mm (w x h x d)? Weight: 0.26 kg
