Phase Shift Keying Modulation and Demodulation
₦0.00
Fixed Output DC Regulated Power Supplies of ?12V and ?5V.
Built Carrier wave Generator (Sine Wave) of 5V peak-to-peak amplitude, 22 KHz ?5% Frequency range with output on sockets.
Built-in Data Generator using IC 7490 with four modulating signal outputs on sockets.
IC TL084 & IC 7486 are used for the PSK demodulator.

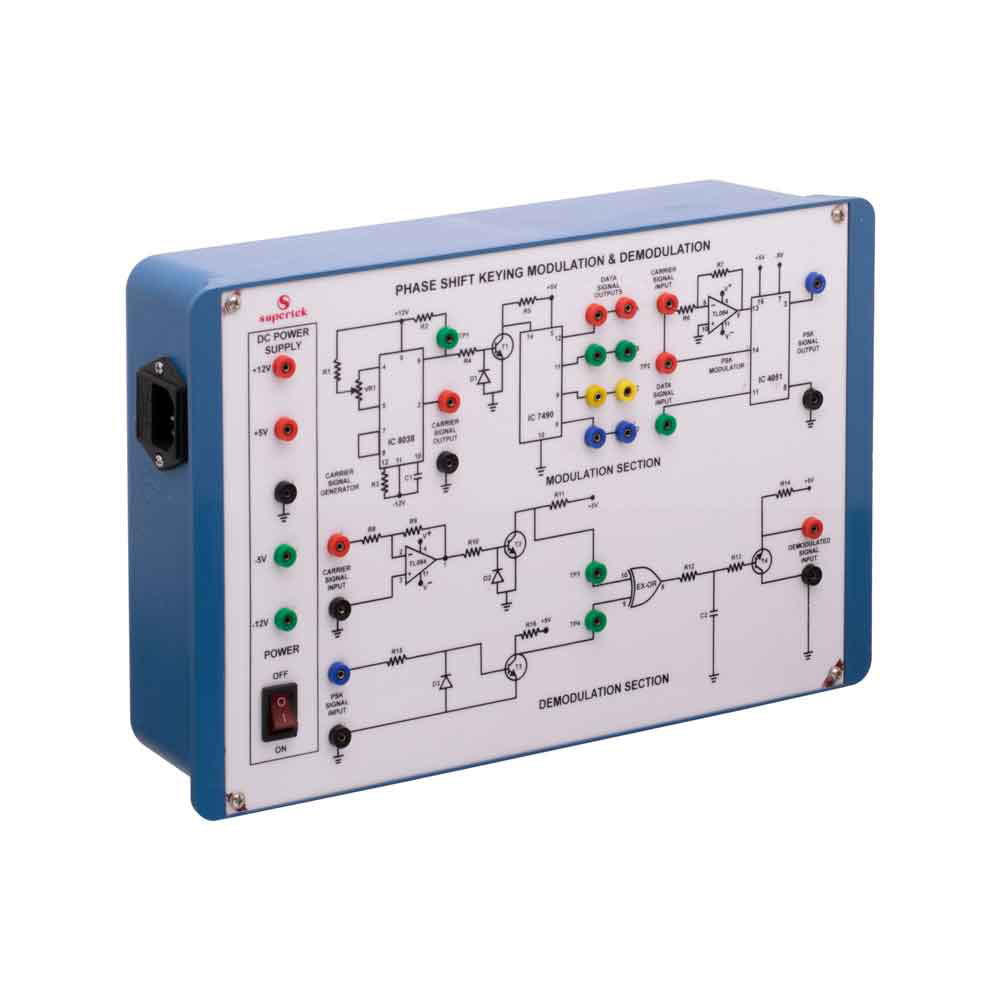

The circuit diagram is printed on the milky white top panel and important connections are brought out on the sockets.
