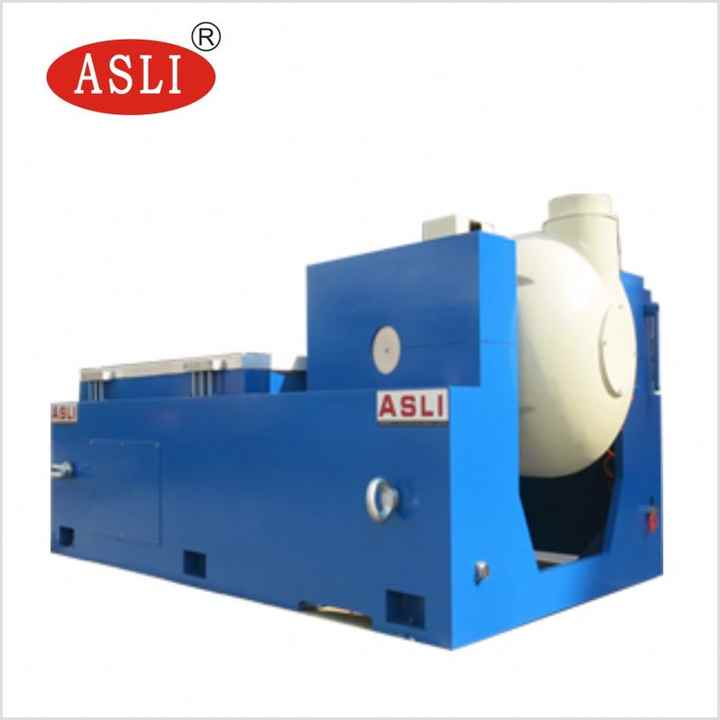

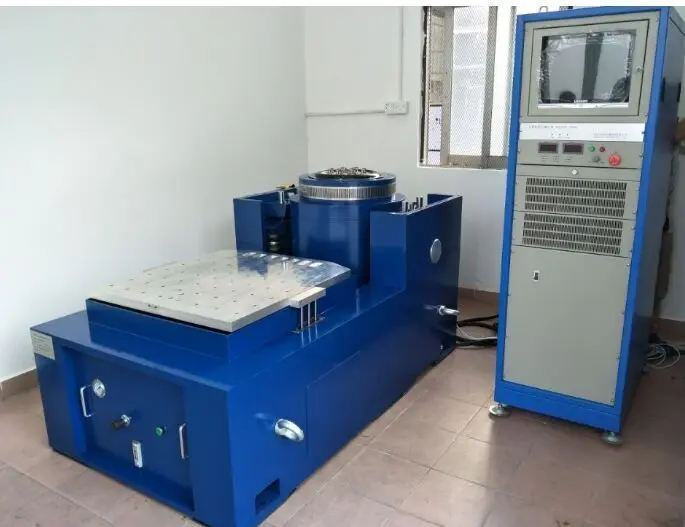

portable vibrating shaker personal vibration tester shock testing equipment
portable vibrating shaker personal vibration tester shock testing equipment
Test requirements:
1. IEC62133
2. UL1642
3. UN38.3
4. GB31241
5. MIL STD 810G
6. ISTA
Application
portable vibrating shaker personal vibration tester shock testing equipment is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
Vibration test machine Parameter:
|
Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) |
Rated Speed (m/s) |
Rated displacement (p-p) mm |
Max. Loading (Kg) |
moving coil(Kg) |
Dimension of Moving coil (mm) |
|
ES-3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
|
ES-3a |
3000 |
3000 |
3-3500 |
400 |
1.6 |
40 |
120 |
9 |
Φ230 |
|
ES-6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ230 |
|
ES-6a |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
51 |
250 |
12 |
Φ230 |
|
ES-10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
|
ES-20 |
20000 |
20000 |
3-3000 |
1000 |
1.8 |
51 |
300 |
30 |
Φ320 |
|
ES-30 |
30000 |
30000 |
3-2800 |
1000 |
1.8 |
5l |
450 |
40 |
Φ450 |
|
ES-40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
|
ES-50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
|
ES-60 |
60000 |
60000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
60 |
Φ450 |
|
ES-100 |
100000 |
100000 |
3-2500 |
1000 |
1.8 |
51 |
1000 |
90 |
Φ450 |
|
ES-120 |
120000 |
120000 |
3-2200 |
1000 |
1.8 |
51 |
1100 |
90 |
Φ500 |
|
ES-160 |
160000 |
160000 |
3-2100 |
1000 |
1.8 |
51 |
1500 |
150 |
Φ600 |
|
ES-200 |
200000 |
200000 |
3-2000 |
1000 |
1.8 |
51 |
2500 |
200 |
Φ650 |
|
ES-350 |
350000 |
350000 |
3-1700 |
1000 |
1.8 |
51 |
4500 |
300 |
Φ870 |
Product features
* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
