A vibrating Sieve, also known as a vibrating screen or a vibratory separator, is a device used to separate and classify particles or materials based on their size. The vibrating sieve employs vibration to facilitate the separation process.

Product Description

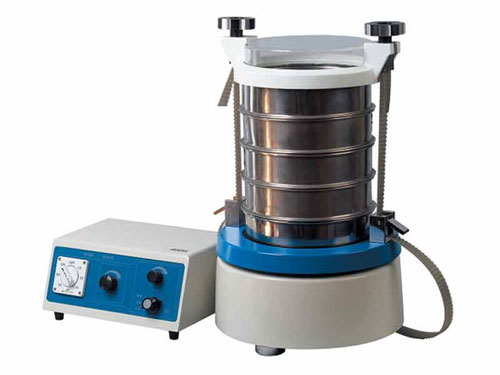

WQS VIBRATOR

Model No. WQS

Vibration direction Vertical vibration

Measurement range ≤325 mesh

Vibration frequency 3000times/min, 6000times/min

Amplitude selection 0-3mm, continuous adjustment

Vibration mode Fine vibration; intermittent vibration; continuation vibration
Characteristic:

* Particle analysis.

* Widely used in the field of the pharmaceutical industry, food, cosmetics, and grain.

* Advanced integrated circuit control

* Easy to operate

* The sieves is chosen by user (200, 100, 80, 60, 40 mesh sieve)
Specification:

* Vibration direction: Vertical vibration

* Measurement range: 325 mesh

* Vibration Frequency: 3000times/min, 6000times/min

* Amplitude selection: 0-3mm, continuous adjustment

* Vibration mode: Fine vibration; Intermittent vibration; Continuation vibration

* Weight (Net): 25kg

* Overall dimensions: 610mm*390mm*400mm.

Allschoolabs may send you another brand for this Vibrating Sieve. Don’t worry, the specification will be the exact same as in the image attached here. For chemicals and reagents, we distribute brands such as Fisher, Merck, Sigma Aldrich, CDH, BDH, Loba Chemie, JHD, Qualikem, and Klincent. Our glassware is borosilicates. They include the following: Burtech, S. Pyrex, Simax, Jtech, Jsil, England Pyrex, and 3.3 Boro. Type A glasses are not displayed on our shop page, however, they are in stock.
