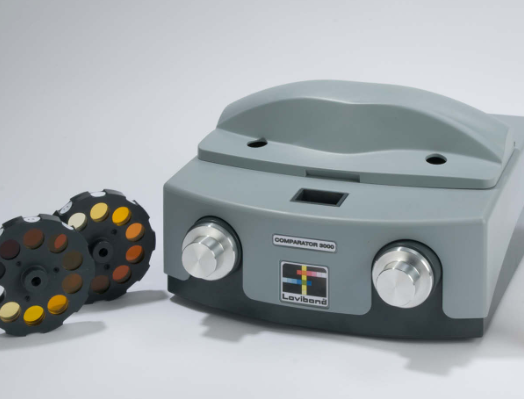

EBC Scale 3000 Comparator

Description

Enables Compliance to the EBC Color Scale

Designed to measure EBC color standards that cover the range 2 -10 in steps of 0.5 EBC and 10 – 27 in steps of 1 EBC. The discs are arranged in two pairs so you can easily change them over.
Fast Determination of Color Value

You can directly compare the sample with the color values for quick results.
Easy to Achieve Optimum Color Accuracy

The advantage of a 3-section field of view is that the sample and two consecutive glasses on the color scale are viewed simultaneously, making it easier and quicker for you to achieve the ideal color match.
Facilitates Tolerance Level Setting

For rapid color grading within predetermined color limits, the glass standards can be set to the two limiting colors so that it is easy to check that the sample is within tolerance.
Guaranteed Constant Lighting Conditions

In the instruments, the tungsten halogen light source is color corrected to CIE standard illuminant B, which guarantees constant lighting conditions for color grading.
Compliance to Standards

Each Comparator 3000 is supplied with the correct cells for the appropriate path length determined by the standard.

Compact, Visual Measurement System for Single Scale Measurements
Self-Contained, Includes Everything Needed to Measure the Scale
Easy-To-Use, Fast & Accurate
3-Field Viewing for Optimum Accuracy

A 3-field instrument for visually determining the color of beer according to the EBC (European Brewing Convention) Scale by direct comparison with colored glass filters.

Application

Beer, Malts and Caramels

Colour Scales

Scale Path Length
Scale Range
Scale Resolution
Applicable Standard

25 mm
2 – 10
1 unit
EBC Analytika

25 mm
2.5 – 11
1 unit (1.5 last step)
EBC Analytika

25 mm
10 – 26
2 units
EBC Analytika

25 mm
11 – 27
2 units
EBC Analytika


Delivery Content

Comparator 3000
1 x W680.OG.25mm Cell
1 x EBC/1 3000 Comparator Disc
1 x EBC/2 3000 Comparator Disc
1 x EBC/3 3000 Comparator Disc
1 x EBC/4 3000 Comparator Disc
1 x Instruction Manual


Liquid Standards

Title
Part Number

EBC Zero Liquid
              133200


Glass Standards

Title
Glass Standard Values
Filters
Part Number

EBC
Approximate Value

7.5

        1
             131044

EBC Color Filter Set
Approximate values

4
9.5
15
18
25

        5
            139400

EBC
Approximate values

4
9.5
15
25

       4
           344000
