Description

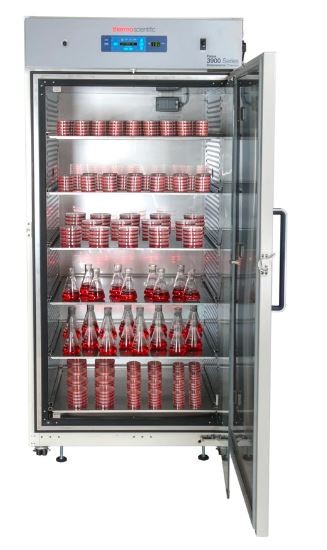

Forma™ 3960 Series Environmental Chambers . REACH-IN CAB.29CF+60C 230V
Thermo Scientific™ Forma™ 3960 Series chambers perform many clinical applications, including elevated temperature stability and shelf-life testing. These chambers feature a horizontal laminar airflow system, stainless-steel interior and microprocessor controls for a high-performance, high-capacity unit.

Features:

True laminar airflow through side plenums for extremely tight temperature uniformity
Sophisticated microprocessor controls for constant display of temperature
Alphanumeric message center for ease of setup and programming
Access ports, locking casters and alarm contacts
Capacity: 29 cu. ft. (821.2L) for high volumes and a broad range of products
Operating temperature range: 5°C above ambient to 60°C (140°F)

Airflow System:

Directed airflow system promotes an ideal growth environment.
Positive pressure feed plenum and negative pressure return plenum direct air across surface of each solid shelf.
Feed plenum cannot be blocked by chamber contents.

Intuitive, Powerful Enviro-Scan™ Control:

Unit offers precise control without complicated programming.
Operating modes include Run, Setpoint, Calibration and System Configuration.
Easy-to-read display offers convenient, continuous monitoring.
Audible/visual under- and over-temperature alarms offer peace of mind.
Data outputs allow connection to in-house monitor/alarm system to track chamber conditions.

Durable Construction:

Exterior cabinet: 18-gauge. cold-rolled steel, powder coated for durability; resists scratches and chipping.
Heated glass door for minimal condensation and a clear view
2 in. (5.1cm) thick fiberglass cabinet insulation for maximum product thermal protection
Solid, stainless-steel interior for long life and minimized equipment costs
Five heavy-duty, solid stainless-steel shelves, adjustable on 2 in. (5.1cm) centers
Swivel locking casters for easy mobility
Leveling feet provide stability and added safety
Thru-wall access ports on right and left chamber sides for probes, sensors, etc.
Interior GFCI duplex receptacle on 115V Model (single European 230V CEE 7 on 230V Model) for shakers, cell rollers, and other equipment
Exterior receptacle on upper-right side of control panel for connecting optional recorder or other equipment

Specifications

Lighting
No Lighting

Type
Environmental Chamber

Capacity (Metric) Shelf
13.6 kg

Capacity (English) Shelf
30 lb.

Certifications/Compliance
UL listed

Amperage
5 A

Depth (English) Interior
27 in.

Depth (Metric) Interior
68.8 cm

Capacity (Metric)
821 L

Chamber Material
Stainless Steel, Type 304, 2B

Dimensions (L x W x H)
33 x 38 x 80 in. (83.8 x 78.7 x 203.2 cm)

Temperature Range (Metric)
Ambient +5°C to 60°C

Material
Powder-coated Cold Rolled Steel

Door Style
Heated, triple pane, tempered glass exterior

Electrical Requirements
200/230 V, 50/60 Hz

Frequency
50/60 Hz

Height (English)
80 in.

Height (English) Interior
60 in.

Height (Metric)
203.2 cm

Insulation
2 in. (5.1cm) fiberglass

Length (English)
33 in.

Length (English) Shelf
25.8 in.

Length (Metric)
83.8 cm

Length (Metric) Shelf
65.5 cm

No. of Shelves
5 supplied/26 max.

Ports
Two 2.4 in. (6.1cm) I.D., one on each side

Shipping Weight (Metric)
299.4 kg

Shipping Weight (English)
660 lb.

Temperature Control
Enviro-Scan Microprocessor

Temperature Sensitivity
±0.1°C

Temperature Sensor
Precision thermistor (over temperature and control); independent thermostat (over temperature safety)

Temperature Uniformity
±0.4° at 30°C (86°F); ±0.3° at 37°C (98.6°F); ±0.5° at 45°C (113°F)

Voltage
200/230 V

Wattage
150 w

Weight (English)
500 lb.

Weight (Metric)
226.8 kg

Width (English)
38 in.

Width (English) Interior
31 in.

Width (English) Shelf
30.6 in.

Width (Metric)
78.7 cm

Width (Metric) Interior
78.7 cm

Width (Metric) Shelf
77.7 cm

Unit Size
Each
