Description

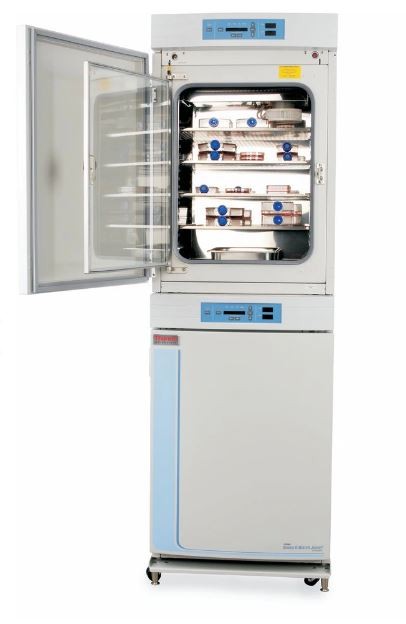

Forma™ Series II 3110 Water-Jacketed CO2 Incubators . LAB.INCUBATOR T/C CO2
Precisely control the CO2 and temperature with Thermo Scientific™ Forma™ Series II 3110 Water-Jacketed CO2 Incubators, which combine precise control with a choice of TC or IR sensors. Featuring superior parameter recovery characteristics with innovative, continuous contamination control technology.
Water Jacketed Chamber
The 184L (6.5 cu. ft.) high capacity chamber provides outstanding culturing space
Standard right hand door swing, field reversible
Polished stainless steel interior with coved corners is easy-to-clean with removable humidity pan
Unique triple wall construction provides outstanding temperature uniformity and stability
Exclusive, heated dual pane inner glass door is designed to minimize condensation
In-chamber fan gently distributes air throughout the chamber which is designed ensure homogeneous conditions
Sturdy stainless steel shelves and supports can be removed without tools for easy cleaning or adjustment
ISO Class 5 HEPA Filtration Airflow System
In-chamber HEPA air filtration continuously filters entire chamber volume every 60 seconds
Reaches ISO Class 5 (Class 100) cleanroom air quality in only 5 minutes after door opening
Continuous protection by minimizing ability for contaminants to settle on interior surfaces
In situ Sensors and Probes Designed for Precise Monitoring
Choice of TC (thermal conductivity) CO2 sensor for long, reliable operation or IR (infrared) CO2 sensor for monitoring when humidity and temperature are less predictable
Dual temperature probes with over temperature protection
Optional rH display for monitoring humidity levels to prevent “dry-outs”
Enviro-Scan Microprocessor Control
Easy- to-use, alphanumeric LED display
Flexible, intuitive controls with message center including process and alarm status messages
Configurable audible on/off, access code, tracking low and high alarms
Specifications
Capacity (English)
6.5 cu. ft.
Certifications/Compliance
UL, cUL, CE
CO2 Concentration Range
0 to 20%
CO2 Sensor Technology
TC Sensor
Data Outputs
Optional 4-20mA
Description
Single 184L incubator
Capacity (Metric)
184 L
Chamber Material
Polished Stainless Steel
Dimensions (D x W x H) Interior
20 x 21.3 x 26.8 in. (50.8 x 54.1 x 68.1 cm)
Temperature Range (Metric)
Ambient +5°C to 50°C
Relative Humidity
>90% at 37°C
Electrical Requirements
230 V, 50/60 Hz
Humidity Source
Water Pan
Oxygen Control
Not Included
Type
CO2 Incubator
Weight (English)
365 lb.
Unit Size
Each
