Description

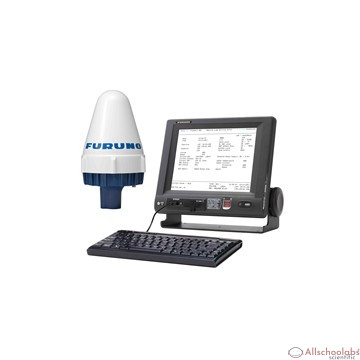

FEATURES of FELCOM18
? Inmarsat-C Ship Earth Station terminal for GMDSS application
? Full GMDSS compliance with optional printer and AC/DC power supply?
? SSAS capability with SSAS Alert Units?
? Compatibility with LRIT application?
? Compatible with the following standard:

More details?
IMO A.570(14), IMO A.664(16), IMO A.694(17), IMO A.807(19), IMO MSC.147(77), IMO MSC.36(63), IMO MSC.68(68) Annex 4, IMO MSC.97(73), IMO MSC.263.(84), MSC/Circ.862, IEC 60945 Ed. 4, IEC 61097-4 Ed. 2, IEC 61162-1 Ed. 4
? A wide variety of communication schemes available: telex, FAX, emailing, EGC, Data reporting/polling, etc.
? SD card for recording media?
? GPS receiver (option)
SPECIFICATIONS

Product Name
Inmarsat-C Mobile Earth Station
Inmarsat MINI-C Mobile Earth Station

FELCOM18
FELCOM19

Frequency
TX:
1626.5-1646.5 MHz

RX:
1537.0-1544.2 MHz

Channel Spacing
5 kHz

Modulation Rate
and format
TX:
600, 1200 sps Unfiltered BPSK

RX:
1200 sps Unfiltered BPSK

Minimum G/T
-23.0 dB/K (at elv. 5?)
-23.7 dB/K (at elv. 5?)

Output Power
12-16 dBW (at elv. 5?)
7-16 dBW (at elv. 5?)

?
?
Power Supply
?
12-24 VDC

TX:
less than 130 W
less than 50 W

RX:
less than 60 W
less than 10 W
