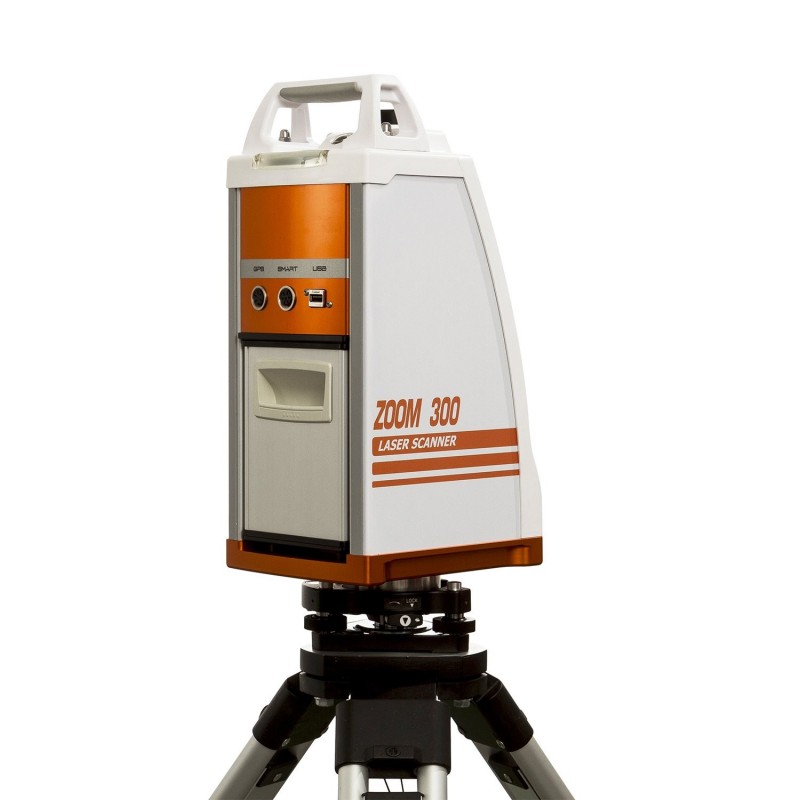

GeoMax SPS Zoom 300 Laser Scanner Series is a 3D laser scanner device that collects precise spatial data of objects or environments. The collected point cloud data can then be used to construct digital three dimensional models.
ZOOM 300 is a high performance, easy to use, complete solution for all 3D survey requirements. Manufactured to withstand adverse conditions, the design is also lightweight and portable.
The perfect combination of robustness, performance and price:
ZOOM 300 is a rugged and reliable Time of Flight Laser Scanner recommended for all working environments, especially topographic surveys.
The sealed casing protects the internal components, providing an IP65 dust and waterproof rating.
ZOOM 300 is simple to use and ready to scan at the press of a button. The scanner can be controlled and operated directly from all mobile devices with a WLAN connection. A menu driven interface makes selection straightforward.
 Principal features:

Compact Laser Scanner, everything in a single case

Easy interface

Ready to work in few minutes for increased productivity

Wi-Fi functionality – operate the scanner directly from your PC
or Smartphone (iOS, Android and Windows Mobile)

2 integrated cameras 5+5 Mpx

Integration of GPS data

Laser class 1 – work safely without eye protection

Robust but lightweight (7 kg incl battery)

> 6 hours of continuous work with the 2 batteries provided

Operating temperature -10° to +50° (14° to 122°F)

IP65 protection, the top of the range for a laser scanner

The best performance/price ratio solution available on the market

Areas Of Applications:

Survey

Structures, Architecture and Tunnels

Volume Calculation

Landslides, Landfills, and Quarry

Monitoring Rock Faces

Collision Investigation

Specs:
  *Technical:


Max Range:                          300m 100% reflectivity (on white target)

Operating conditions:           250m

Min Range:                           2.5m

Horizontal field of view:       Horizontal field of view

Vertical field of view:            90° (-25° +65°)

Scan rate:                               40.000 points/sec

Laser beam divergence:          0.37mrad

Resolution:                             37mm x 37mm @ 100m

Accuracy:                                6mm @ 50m , <10mm @ 100m   *System: Scanning optics vertically:         Rotating mirror Scanning optics horizontally:    Rotating base Laser class:                                 Class 1 (eye safe) Camera:                                     2 calibrated camera Resolution:                                5 megapixel each camera Internal memory:                      32Gb Data transfer                              Wi-Fi, USB, Ethernet   *Electrical: Power supply:                           12V (battery or external power unit Power consumption:                 40W (on average) Battery type:                              Li-Poly Operation:                                 >3h each battery (2 included)

  *Physical:

Scanner size:                                215mm x 170mm x 430mm

Scanner weight:                            6.15 Kg (13.56 lbs)

Protection class:                            IP65

Delivery Contents:

ZOOM 300 Instrument Unit

Rugged Protective Carrying Case

2 x Li-Poly battery 8200 mAH

Battery Charger

Battery Charger

Upgrades:
     A –  ZOOM 300 – MPS Package SCAN (ZL):
               – SPS ZOOM 300
               –  X-Pad Office MPS module L-SCAN
     B –   ZOOM 300 – MPS Package Scan & CAD (ZLX):
              –  SPS ZOOM 300
              –  X-Pad Office MPS module L-SCAN
              –  X-Pad Office MPS module X-CAD
     C-   ZOOM 300 – MPS Package Premium (ZLXT):
            –  SPS ZOOM 300
            –  X-Pad Office MPS module L-SCAN
            –  X-Pad Office MPS module X-CAD
