Precision is our ProfessionMitutoyo Sheet Metal Micrometers, Series 118
- Measures thickness of sheet metal, paper,
plastic and rubber parts. - With ratchet stop for constant force.
- With a standard bar except for 0 – 1? / 0 – 25mm model.
- Supplied in fitted plastic case.
Technical Data
- Accuracy: Refer to the list of specifications
- Resolution*: .00005″/0.001mm or 0.001mm
- Graduation**: 0.01mm, .001″ or .0001″
- Flatness: .000024? / 0.6?m for models with 6? / 150mm throat
- .00004? / 1?m for models with 12? / 300mm throat
- Parallelism: .00012? / 3?m
- Measuring faces: Carbide tipped
- Display*: LCD
- Battery*: SR44 [1 pc. (2 pcs.: 389-514 and 389-714)],
- 938882
- Battery life*: Approx. 2.4 years under normal use
- (1.8 years: 389-514 and 389-714)
- Dust/Water protection level*: IP65
- *Digital models **Analog models
| Sheet Metal Micrometers, Series 118 | ||||
| Code | Model | Range | Graduation | Price |
| Metric | ||||
| 118-118 | PMUD150-25 | 0-25mm | 0.01mm (150mm Throat) | 11,500.00 |
| 118-103 | PMU300-25 | 0-25mm | 0.01mm (300mm Throat) | 18,900.00 |
| Inches | ||||
| 118-107 | PMU12-1 | 0-1″ | 0.001″(12″Throat) | 19,900.00 |

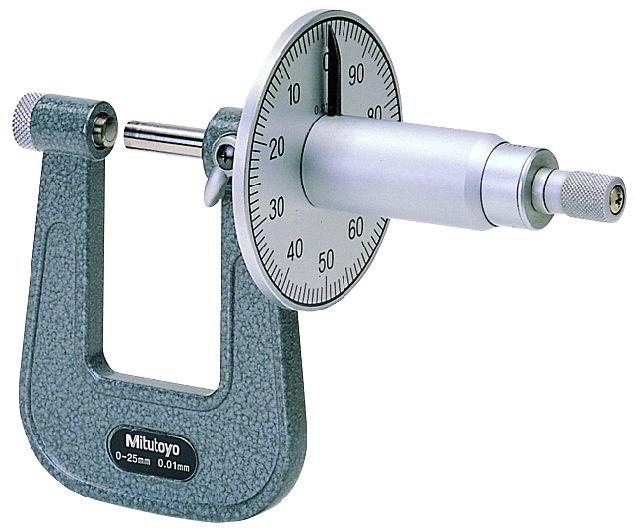

| Sheet Metal Micrometers, Series 119, (with Dial) | ||||
| Code | Model | Range | Graduation | Price |
| Metric | ||||
| 119-202 | PMM50-25 | 0-25mm | 0.01mm (50mm Throat) | 16,000.00 |
